Digital Weight Transmitter -- PowerLink.

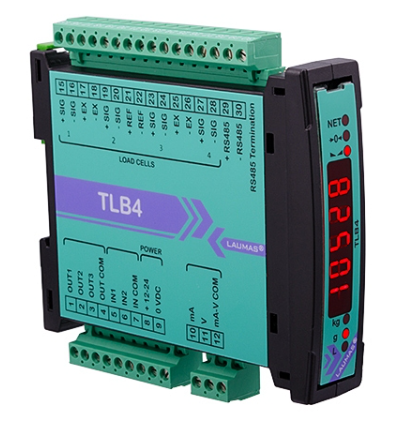

The Laumas TLB4POWERLINK is the PowerLink output/fieldbus option of the Laumas TLB4 digital weight transmitter family.

PowerLink

Output/Fieldbus

02 / 03Technical data

Manufacturer	Laumas
Manufacturer part number	TLB4POWERLINK
Output/Fieldbus	PowerLink
Channels	4 independent load-cell inputs
Power supply	12-24 VDC +/-10%, 5 W
Load cells	Up to 16 x 350 ohm, 4/6-wire, 5 VDC/240 mA excitation
A/D converter	4 channels, 24-bit (16,000,000 points), 4.8 kHz
Measurement range	+/-39 mV
Usable load cell sensitivity	+/-7 mV/V
Linearity	<0.01% full scale
Thermal drift	<0.0005% full scale/degC
Display	6-digit semi-alphanumeric red LED, 8 mm height, +/-999999 range
Relay outputs	3, max 115 VAC/150 mA
Optoisolated digital inputs	2, 5-24 VDC PNP
Enclosure	Back-panel mounting on Omega/DIN rail, 115 x 26 x 120 mm
Humidity	85% (condensate-free)
Storage temperature	-30 C to +80 C
Working temperature	-20 C to +60 C
Legal-for-trade approval	OIML R76:2006 Class III, 3x10,000 divisions, 0.25 uV/V*SI; OIML R61, R51 - WELMEC Guide 8.8:2017 (MID); UL Recognized component; NMI Trade Approved (Australia); New Zealand legal-for-trade use
Port	2x POWERLINK ports (RJ45 10Base-T or 100Base-TX, auto-sensing)
Network role	Slave in a Powerlink network
Serial port	RS485 (included)

03 / 03Part number reference

Product	Order code
Laumas TLB4POWERLINK PowerLink Digital Weight Transmitter	23110

Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

Yes. Send photos of the installed equipment, the label, the model and option you need, and the application.

Send the model, the option you need, and the application. We will confirm the manufacturer part number and fit.

Number of divisions	±999999 • 0.01 μV/d (with measurement range ±10 mV and sensitivity 2 mV/V) as configured:
Digital filter	21 levels • 5÷600 Hz as configured:
Input power supply	12÷24 VDC ±10%; 5 W as configured:
Storage temp range	-30 °C +80 °C as configured:
Fieldbus	PowerLink as configured:
Linearity - Analog output linearity (only for TLB4)	<0.01% full scale • <0.01% full scale as configured:
Thermal Drift	Analog output thermal drift (only for TLB4) <0.0005% full scale/°C • <0.003% full scale/°C as configured:
A/D Converter	4 channels - 24 bit (16000000 points) - 4.8 kHz as configured:
Measurement range	±39 mV as configured:
Usable load cells sensitivity	±7 mV/V as configured:
Conversions per second	600/s as configured:
Display range	±999999 as configured:
Decimals	0÷4 • x1 x2 x5 x10 x20 x50 x100 as configured:
Relay outputs	3 - max 115 VAC/150 mA as configured:
Optoisolated digital inputs	2 - 5÷24 VDC PNP as configured:
Serial ports	RS485 as configured:
Baud rate	2400, 4800, 9600, 19200, 38400, 115200 (bit/s) as configured:
Optoisolated analog output (only for TLB4)	16 bit = 65535 divisions. 0÷20 mA; 4÷20 mA (up to 300 Ω) 0÷10 V; 0÷5 V; ±10 V; ±5 V (min 10 kΩ) as configured:
Humidity	85% as configured:
Working temp range	-20 °C +60 °C as configured:
Manufacturer's Part Number	TLB4POWERLINK as configured:
Short name	TLB4 Weight Transmitter · PowerLink · TLB4POWERLINK as configured:
Hero chips	PowerLink; RS485; 12÷24 VDC as configured:
