Laumas FLC 3A Hygienic Compression Load Cell
Laumas · Load cell

3A Compression Load Cell

SKU FLC3A
2,000–20,000 kg; IP69K; 17-4 PH Stainless Steel; Analog signal
830.00
$953.00
  • FLC3A - Laumas FLC 3A Hygienic Compression Load Cell
  • Type: Hygienic compression load cell, for foot mounting
  • Material: 17-4 PH stainless steel
  • Protection: IP69K
  • Signal: Analog
  • Manufacturer: Laumas
  • Capacity range: 1,000 kg – 20,000 kg
  • Available in 7 configurations, from 1,000 kg to 20,000 kg. See the table below for each SKU and part number.

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 02Compression Load Cell

    Laumas FLC3A compression load cell family.

    The Laumas FLC3A is a hygienic compression load cell family. This page describes the family; use the table below to select the SKU your application requires.

    1,000 kg – 20,000 kg
    Kg-line capacity range
    17-4 PH stainless steel
    Material
    02 / 02Technical data

    Series-wide catalog attributes.

    Values that differ per SKU are listed in the table below and on each SKU's own page.

    Material17-4 PH stainless steel
    ProtectionIP69K
    SignalAnalog
    Input impedance350 ± 20 Ω
    Output impedance350 ± 5 Ω
    Insulation resistance> 5000 MΩ
    Zero balance± 1%
    Compensated temperature−10 to +50 °C
    Operating temperature−20 to +70 °C
    Voltage supply5 to 15 VDC
    Safe overload150% FS
    Ultimate overload300% FS
    Creep (30 min)0.05%
    Deflection at nominal load0.3 mm
    Cable5 m (1,000–5,000 kg, 10,000 kg M24) / 10 m (10,000 kg M30, 20,000 kg), Ø5 mm, 6 × 0.20 mm²
    Rated output2.0 ± 0.1% mV/V
    CAPACITY TABLE

    Available capacities.

    CapacityManufacturer part numberSKUApprovalPrice
    1,000 kgFLCLF1000M123A—$953.00
    2,000 kgFLCLF2000M123A—$953.00
    5,000 kg (M20)FLCLF5000M203A—$953.00
    5,000 kg (M16)FLCLF5000M163A—$953.00
    10,000 kg (M24)FLCLF10000M243A—$970.00
    10,000 kg (M30)FLCLF10000M303A—$970.00
    20,000 kgFLCLF20000M363A—$986.00

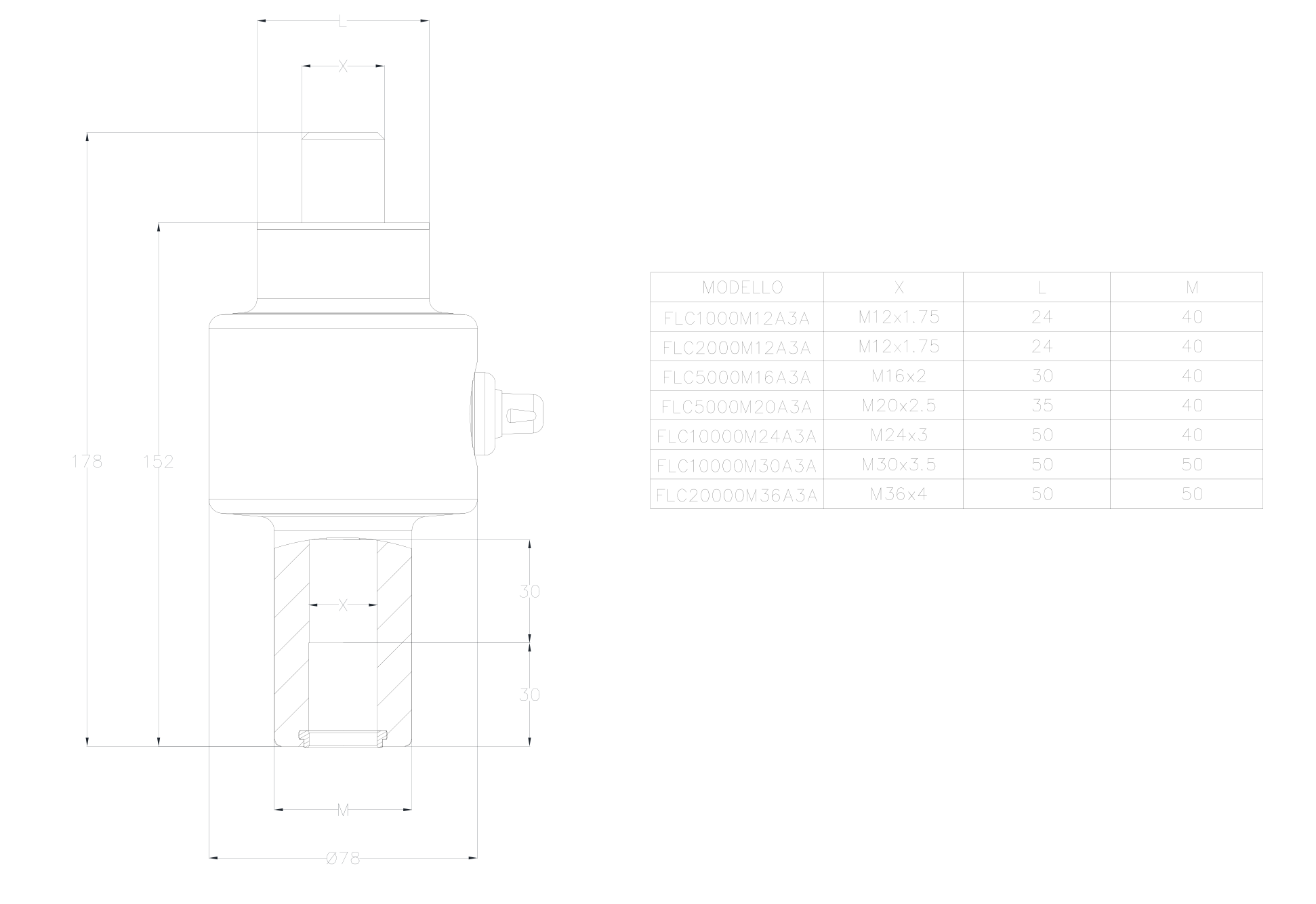

    DIMENSIONS

    Outline dimensions.

    Laumas FLC 3A Hygienic Compression Load Cell dimensions drawing
    Source: manufacturer datasheet
