3A Compression Load Cell · 2000kg · FLCLF2000M123ALaumas FLCLF2000M123A 2,000 kg Compression Load Cell
SKU 23191
2,000 kg; IP69K; 17-4 PH Stainless Steel; Analog signal
953.00
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.
The Laumas FLCLF2000M123A is a 2,000 kg capacity variation of the Laumas FLC3A hygienic compression load cell family, manufactured in 17-4 ph stainless steel with IP69K ingress protection.
2,000 kgRated capacity17-4 PH stainless steelMaterialIP69KProtection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Laumas Manufacturer part number FLCLF2000M123A Capacity 2,000 kg Rated output 2.0 ± 0.1% mV/V Material 17-4 PH stainless steel Protection IP69K Signal Analog Input impedance 350 ± 20 Ω Output impedance 350 ± 5 Ω Insulation resistance > 5000 MΩ Zero balance ± 1% Compensated temperature −10 to +50 °C Operating temperature −20 to +70 °C Voltage supply 5 to 15 VDC Safe overload 150% FS Ultimate overload 300% FS Creep (30 min) 0.05% Deflection at nominal load 0.3 mm Cable 5 m (1,000–5,000 kg, 10,000 kg M24) / 10 m (10,000 kg M30, 20,000 kg), Ø5 mm, 6 × 0.20 mm² 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Laumas FLCLF2000M123A 2,000 kg Compression Load Cell 23191 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

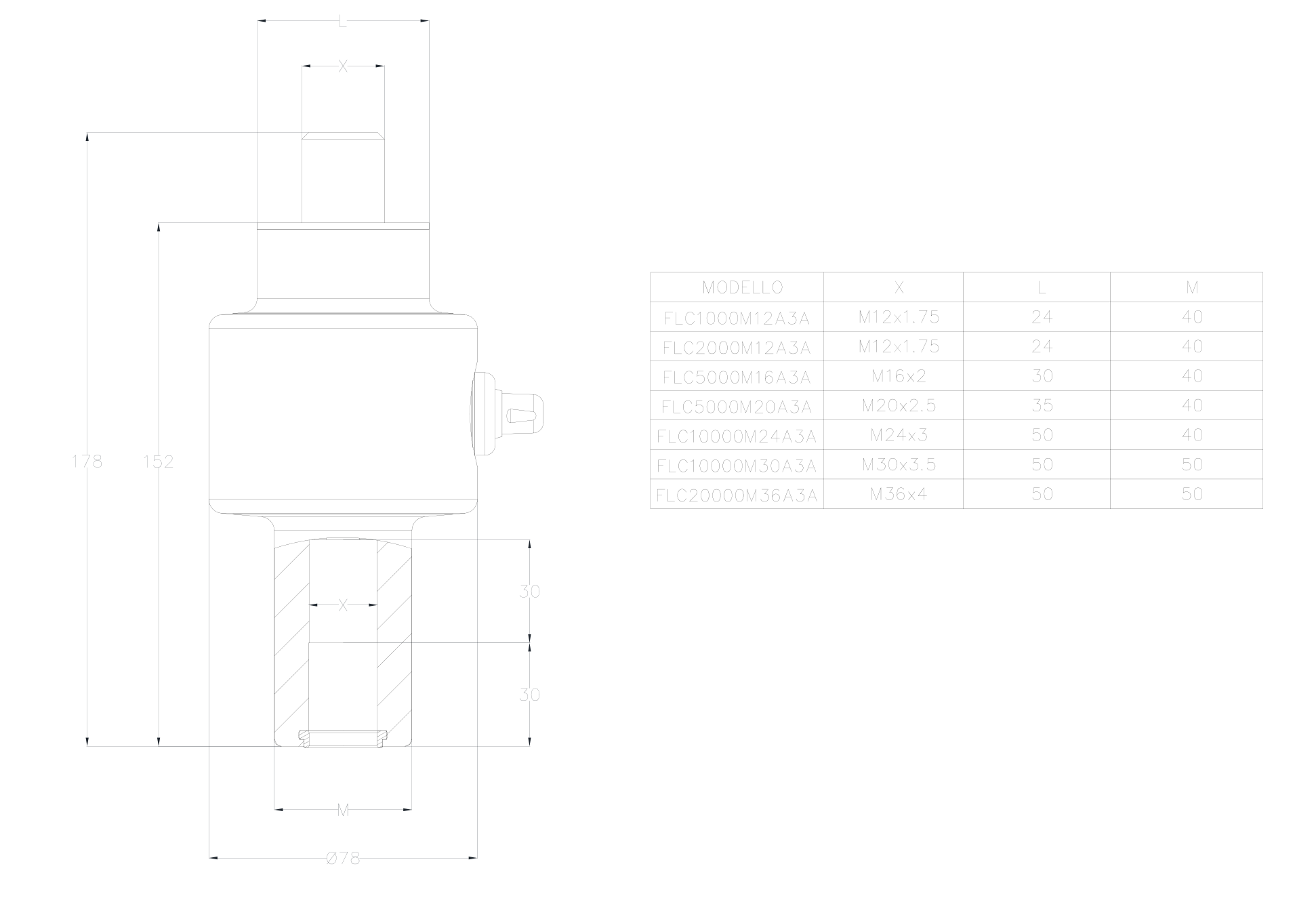

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP69K Material 17-4 PH Stainless Steel Compensated temp range −10 to +50 °C Creep error 20mins 0.05% / 30 min Input impedance 350 ± 20 Ω Insulation resistance > 5000 MΩ Internal Battery -- Maximum excitation 15 VDC Maximum safe overload 150% Operating temp range −20 to +70 °C Output impedance 350 ± 5 Ω Rated capacity 2,000 kg Rated output 2.0 ± 0.1% mV/V Ultimate central overload 300% Zero balance ± 1% Capacity 2000kg Manufacturer's Part Number FLCLF2000M123A Short name 3A Compression Load Cell · 2000kg · FLCLF2000M123A Hero chips 2,000 kg; IP69K; 17-4 PH Stainless Steel; Analog signal
