TLB Weight Transmitter · Ethernet TCP/IP · TLB-ETHET-TCP

SKU 23092

Ethernet TCP/IP; RS485; 12÷24 VDC

550.00

☎ x305

$550.00

23092 - Laumas TLB-ETHET-TCP Ethernet TCP/IP Digital Weight Transmitter
Type: Digital Weight Transmitter
Manufacturer part number: TLB-ETHET-TCP
Output/Fieldbus: Ethernet TCP/IP

Datasheet

Qty

Description
Additional Information

01 / 03Digital Weight Transmitter

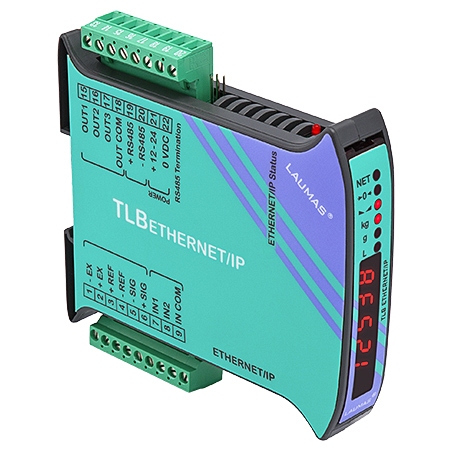

Digital Weight Transmitter -- Ethernet TCP/IP.

The Laumas TLB-ETHET-TCP is the Ethernet TCP/IP output/fieldbus option of the Laumas TLB digital weight transmitter family.

Ethernet TCP/IP

Output/Fieldbus

02 / 03Technical data

Verified specifications for this SKU.

Manufacturer	Laumas
Manufacturer part number	TLB-ETHET-TCP
Output/Fieldbus	Ethernet TCP/IP
Channels	1 load-cell input
Power supply	12-24 VDC +/-10%, 5 W
Load cells	Up to 8 x 350 ohm, 4/6-wire, 5 VDC/120 mA excitation
A/D converter	24-bit (16,000,000 points), 4.8 kHz
Measurement range	+/-39 mV
Usable load cell sensitivity	+/-7 mV/V
Display	6-digit semi-alphanumeric red LED, 8 mm height, +/-999999 range
Relay outputs	3, max 115 VAC/150 mA
Optoisolated digital inputs	2, 5-24 VDC PNP
Enclosure	Back-panel mounting on Omega/DIN rail, 115 x 25 x 120 mm
Humidity	85% (condensate-free)
Storage temperature	-30 C to +80 C
Working temperature	-20 C to +60 C
Legal-for-trade approval	OIML R76:2006 Class III, 3x10,000 divisions, 0.2 uV/V*SI; NTEP nmax 5000 Class III; Measurement Canada nmax 5000 Class III
Port	Ethernet TCP/IP port (RJ45 10Base-T or 100Base-TX, auto-sensing)
Network role	Accessible via web browser (integrated TCP/IP Web App)
Serial port	RS485 (included)

03 / 03Part number reference

Order code and fit FAQ.

Product	Order code
Laumas TLB-ETHET-TCP Ethernet TCP/IP Digital Weight Transmitter	23092

Is the SKU enough to confirm replacement?

Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

Can WeightechUSA help identify a match?

Yes. Send photos of the installed equipment, the label, the model and option you need, and the application.

Talk to a WeightechUSA specialist.

Send the model, the option you need, and the application. We will confirm the manufacturer part number and fit.

Email Sales View Datasheet Call +1 (954) 666-0877 × 305

← Part of the Laumas TLB Single-Channel Digital Weight Transmitter family (TLB) — see all capacities

Number of divisions	±999999 • 0.01 μV/d (with measurement range ±10 mV and sensitivity 2 mV/V) as configured:
Digital filter	21 levels • 5÷600 Hz as configured:
Input power supply	12÷24 VDC ±10%; 5 W as configured:
Internal Battery	-- as configured:
Storage temp range	-30 °C +80 °C as configured:
Number of load cells	up to 16 (350 Ω) - 4/6 wires • 5 VDC/240 mA as configured:
Fieldbus	Ethernet TCP/IP as configured:
Linearity - Analog output linearity (only for TLB4)	<0.01% full scale • <0.01% full scale as configured:
Thermal Drift	Analog output thermal drift (only for TLB4) <0.0005% full scale/°C • <0.003% full scale/°C as configured:
A/D Converter	1 channel - 24 bit (16000000 points) - 4.8 kHz as configured:
Measurement range	±39 mV as configured:
Usable load cells sensitivity	±7 mV/V as configured:
Conversions per second	600/s as configured:
Display range	±999999 as configured:
Decimals	0÷4 • x1 x2 x5 x10 x20 x50 x100 as configured:
Relay outputs	3 - max 115 VAC/150 mA as configured:
Optoisolated digital inputs	2 - 5÷24 VDC PNP as configured:
Serial ports	RS485 as configured:
Baud rate	2400, 4800, 9600, 19200, 38400, 115200 (bit/s) as configured:
Optoisolated analog output (only for TLB4)	16 bit = 65535 divisions. 0÷20 mA; 4÷20 mA (up to 300 Ω) 0÷10 V; 0÷5 V; ±10 V; ±5 V (min 10 kΩ) as configured:
Humidity	85% as configured:
Working temp range	-20 °C +60 °C as configured:
Manufacturer's Part Number	TLB-ETHET-TCP as configured:
Short name	TLB Weight Transmitter · Ethernet TCP/IP · TLB-ETHET-TCP as configured:
Hero chips	Ethernet TCP/IP; RS485; 12÷24 VDC as configured:
