- 01 / 06Laumas TLM8 transmitter
8-channel digital weight transmitter with Modbus/TCP integration.
The Laumas TLM8 Modbus/TCP is an 8-channel digital weight transmitter for analog load cells, combining digital equalization, automatic diagnostics, local LCD/keypad setup, RS485 communication, and a dedicated Modbus/TCP interface.
Use this model when a multi-load-cell scale, tank, hopper, platform, or process weighing system needs individual channel monitoring and direct PLC or host integration.
8Load-cell channelsModbus/TCPProtocol / outputRS485Standard serial port5Relay outputs02 / 06Application fitWhere this TLM8 model fits.
01Multi-cell scale panels
Use one transmitter for up to eight analog load-cell channels with digital equalization.
02PLC integration
Select this TLM8 version when the control system requires Modbus/TCP communication.
03Diagnostics
Use the TEST key, channel diagnostics, and load distribution checks during service and commissioning.
03 / 06Core featuresBuilt for advanced digital weighing with analog load cells.
- 8 independent load-cell reading channels
- Digital equalization and automatic diagnostics
- Backlit 60 x 32 mm graphic LCD, 128 x 64 pixels
- Four-key calibration keypad plus TEST key for diagnostics
- 3 logic inputs and 5 relay outputs
- OIML R 76:2006 approved, class III, 10,000 divisions, 0.2 uV/VSI
- Omega/DIN rail mounting for back panel or junction box
- Inclinometer function
- Modbus/TCP port plus RS485 Modbus RTU / Laumas ASCII

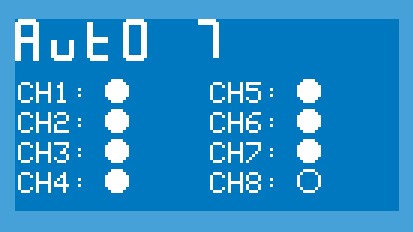

Per-channel diagnostics: each of the 8 load-cell channels is monitored independently. 04 / 06Technical specificationsKey attributes for quoting and integration.
Model TLM8 Modbus/TCP Protocol / output Modbus/TCP port plus RS485 Modbus RTU / Laumas ASCII Load-cell channels 8 independent channels A/D converter 8 channels - 24 bit (16000000 points) - 4.8 kHz Display Backlit graphic LCD, 60 x 32 mm, 128 x 64 pixels Display range 999999 Approvals OIML R 76:2006, class III, 10,000 divisions, 0.2 uV/VSI Inputs / outputs 3 logic inputs, 5 relay outputs Mounting Omega/DIN rail for back panel or junction box Dimensions 148 x 92 x 60 mm Associated item codes JOLLYTLM8MODBUSTCP, JOLLYTLM8MODBUSTCPD, OEMTLM8MODBUSTCP, TLM8MODBUSTCP, TLM8MODBUSTCPD 05 / 06Enclosure and mounting optionsOrder the board on its own or pre-installed in a field enclosure.
The TLM8 board mounts directly on an Omega/DIN rail inside your panel or junction box, or it can be supplied pre-installed in an IP-rated enclosure for field mounting.

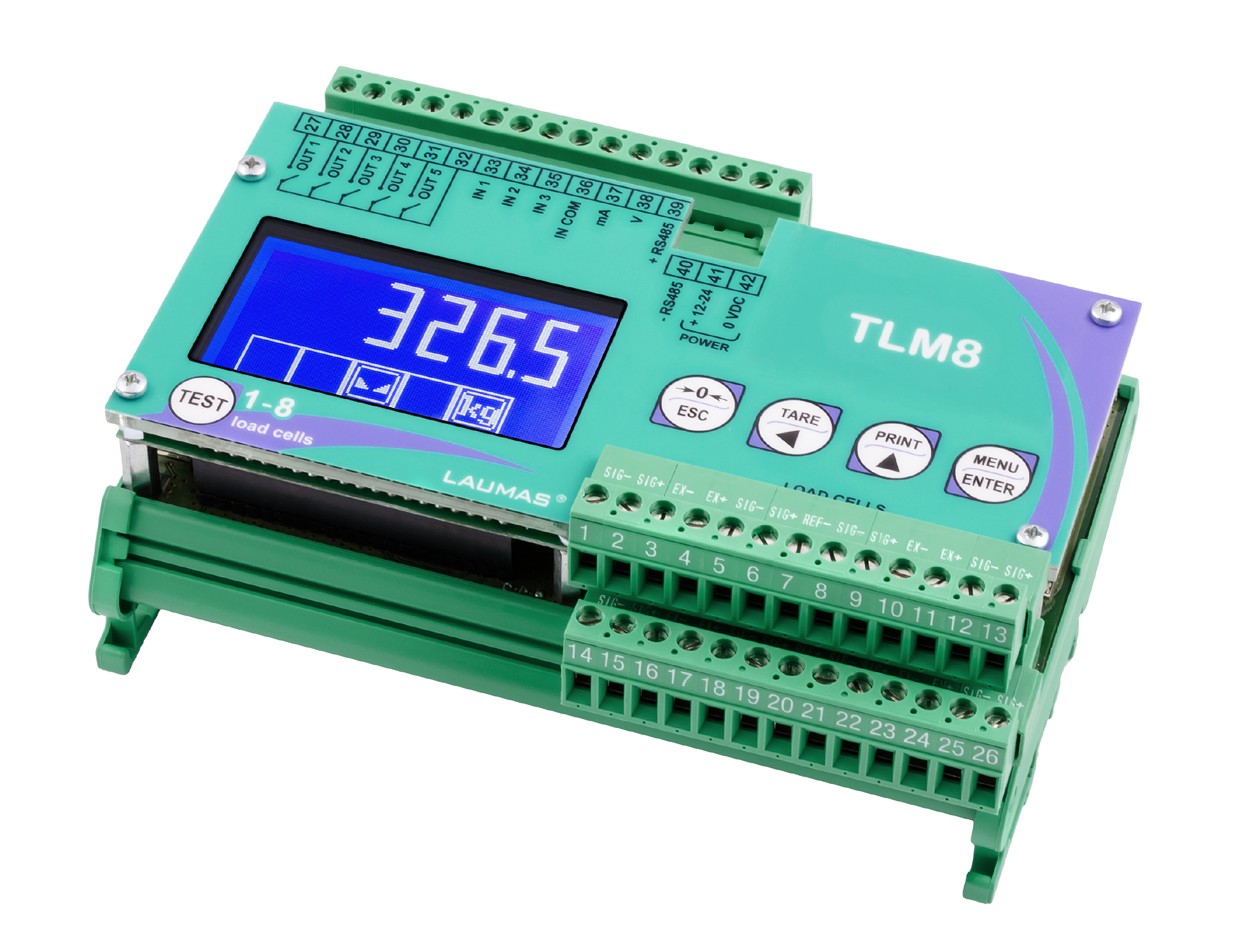

DIN-rail board for panel or junction-box mounting (standard).

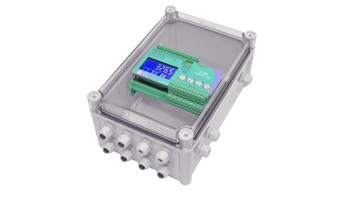

IP67 polycarbonate field enclosure with cable glands.

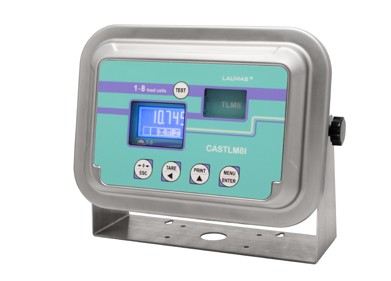

Stainless steel housing with display window for harsh environments. This page represents the TLM8 Modbus/TCP protocol family. Related ordering codes can include display, enclosure, OEM, legal-for-trade, and accessory variations, so WeightechUSA should confirm the exact code before release to production.
Talk to a WeightechUSA specialist.
Send the load-cell count, scale type, PLC protocol, enclosure requirement, power, and legal-for-trade target and we will confirm the correct TLM8 configuration.
Email SalesView DatasheetCall +1 (954) 666-0877 x 305 Number of divisions ±999999 • 0.01 μV/d (with measurement range ±10 mV and sensitivity 2 mV/V) Signal Analog Digital filter 21 levels • 5÷600 Hz Input power supply 12÷24 VDC ±10%; 5 W Internal Battery -- Storage temp range -30 °C +80 °C Manufacturer Laumas Number of load cells up to 16 (350 Ω) - 4/6 wires • 5 VDC/240 mA Fieldbus Modbus/TCP Linearity - Analog output linearity (only for TLB4) <0.01% full scale • <0.01% full scale Thermal Drift Analog output thermal drift (only for TLB4) <0.0005% full scale/°C • <0.003% full scale/°C A/D Converter 8 channels - 24 bit (16000000 points) - 4.8 kHz Display range 999999 Relay outputs 5 relay outputs Optoisolated digital inputs 3 logic inputs Serial ports RS485 Baud rate Modbus RTU / Laumas ASCII via RS485 Manufacturer's Part Number TLM8-MODBUS-TCP Certifications OIML R 76:2006, class III, 10,000 divisions, 0.2 uV/VSI Indicator_type Weight transmitter Short name TLM8 Modbus/TCP Weight Transmitter Hero chips Analog signal; Modbus/TCP; RS485; 12÷24 VDC
