- 01 / 05Weightech WTBT-CO
Compact Bluetooth weighing transmitter with ear-tag reader port and display port.
The Weightech WTBT-CO (SKU 23201) is the WTBT-BR Compact hardware (datasheet code 506071). It connects up to four 350 Ω load cells in parallel and sends the weight by Bluetooth. It has two RS232 serial ports for an ear-tag reader and a remote display, a cattle scale function, and runs from an external 8 to 13 Vdc supply.
4350 Ω load cells in parallelIP65Polycarbonate encapsulation2× RS232Ear-tag reader and remote display8–13VdcExternal power supply02 / 05FeaturesWhat the transmitter does.
01Two RS232 serial ports
Serial 1 connects an ear-tag reader. Serial 2 connects the DRWT-75, DRWT-125 and DRWT-200 remote displays and the WT-Display.
02Cattle scale function
A cattle scale function for livestock weighing, with auto-zero and adjustable digital filters.
03Three status LEDs
Three LEDs indicate low charge, Bluetooth connection and calibration.
04Free Android apps
Calibrate and configure the transmitter with the free Android apps wtbt-br cal and wtbt.
03 / 05Which model is this?WTBT-CO is the WTBT-BR Compact (506071).
This SKU is the WTBT-CO, which is the WTBT-BR Compact hardware (code 506071). It has no internal battery and is powered from an external 8–13 Vdc supply. The WTBT-BR Complete (SKU wtbt, code 504335) is the separate model with a built-in rechargeable battery.
01Typical use
Weighing applications that need fast data transmission and where distance or a difficult environment affects the link between load cells and data processing, such as farms, road yards and on-board weighing.
04 / 05Technical dataWTBT-CO (WTBT-BR Compact) specifications.
Brand / model Weightech WTBT-CO (WTBT-BR Compact) SKU / factory code 23201 / 506071 Load cells Up to 4 x 350 ohm, in parallel Load cell connection CN2 terminal, 4-wire or 6-wire (with sense) CN2, 6-wire 1 Sense+, 2 Exc+, 3 Signal+, 4 Signal-, 5 Exc-, 6 Sense- CN2, 4-wire 1 and 2 Exc+, 3 Signal+, 4 Signal-, 5 and 6 Exc- A/D input range -0.1 to 4.0 mV/V Excitation voltage 5 Vdc Conversion rate 30 to 480 samples per second Internal resolution 1/1,000,000 Serial ports 2 x RS232: Serial 1 (ear-tag reader), Serial 2 (remote displays) Wireless Bluetooth, to Android apps Internal battery None Power supply 8 to 13 Vdc, external Indicators 3 LEDs: low charge, Bluetooth connection, calibration Functions Auto-zero, adjustable digital filters, cattle scale Operating temperature -10 to +40 C Protection IP65 Encapsulation material Polycarbonate Dimensions 98 x 64 x 39 mm body; 143 mm overall over cable glands Mounting holes 86 x 36 mm 05 / 05Part number and FAQOrder code.
Product Order code Weightech WTBT-CO Bluetooth weighing transmitter (WTBT-BR Compact, factory code 506071) 23201 Is the WTBT-CO the same as the WTBT-BR Compact?
Yes. The WTBT-CO is the WTBT-BR Compact hardware, datasheet code 506071.
Does it have a battery?
No. The Compact hardware is powered from an external 8 to 13 Vdc supply. The WTBT-BR Complete (SKU wtbt) is the model with an internal battery.
What do the LEDs show?
Low charge, Bluetooth connection and calibration.
What can I connect to the serial ports?
Serial 1 takes an ear-tag reader; Serial 2 takes remote displays such as the DRWT-75, DRWT-125, DRWT-200 and WT-Display.

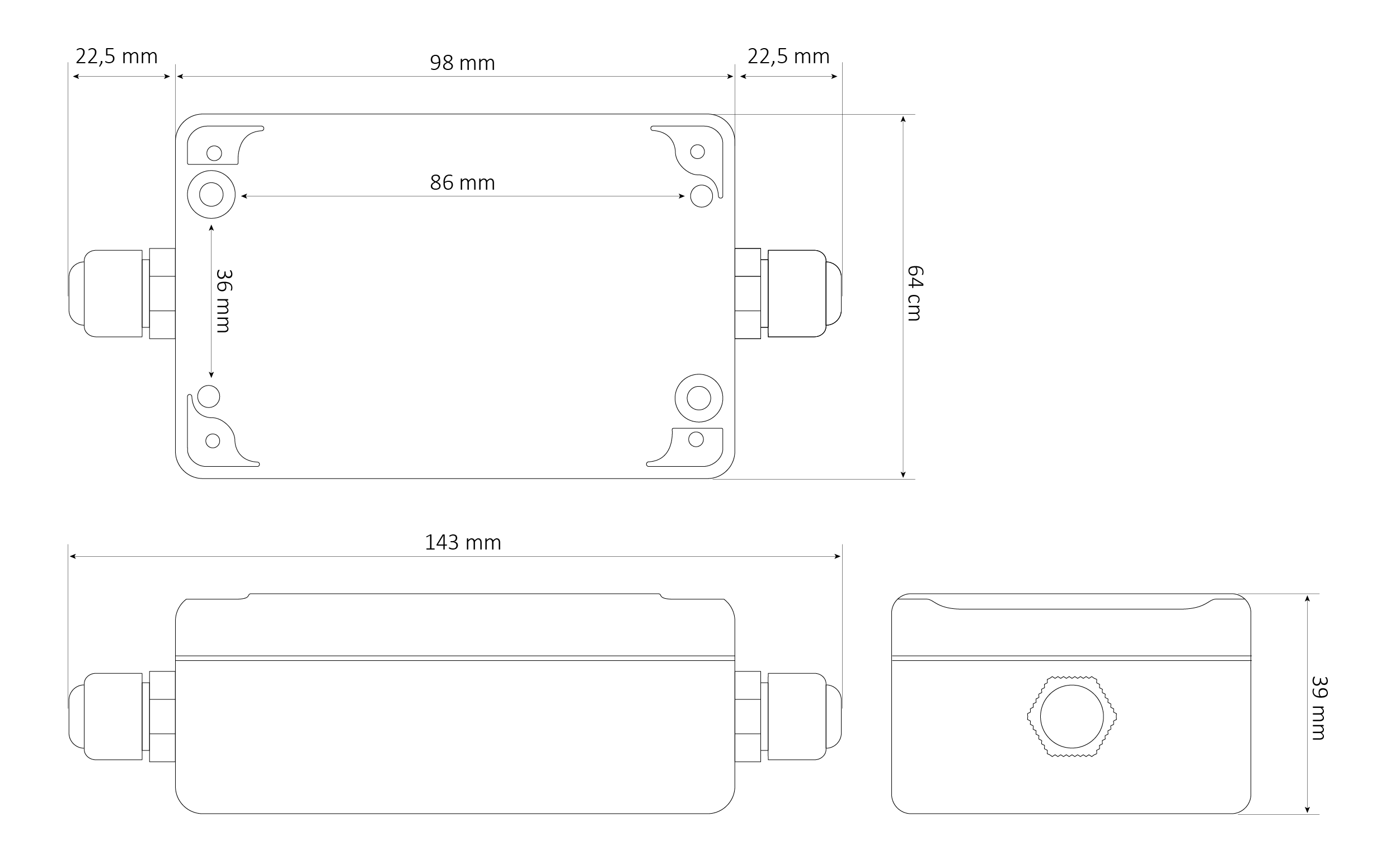

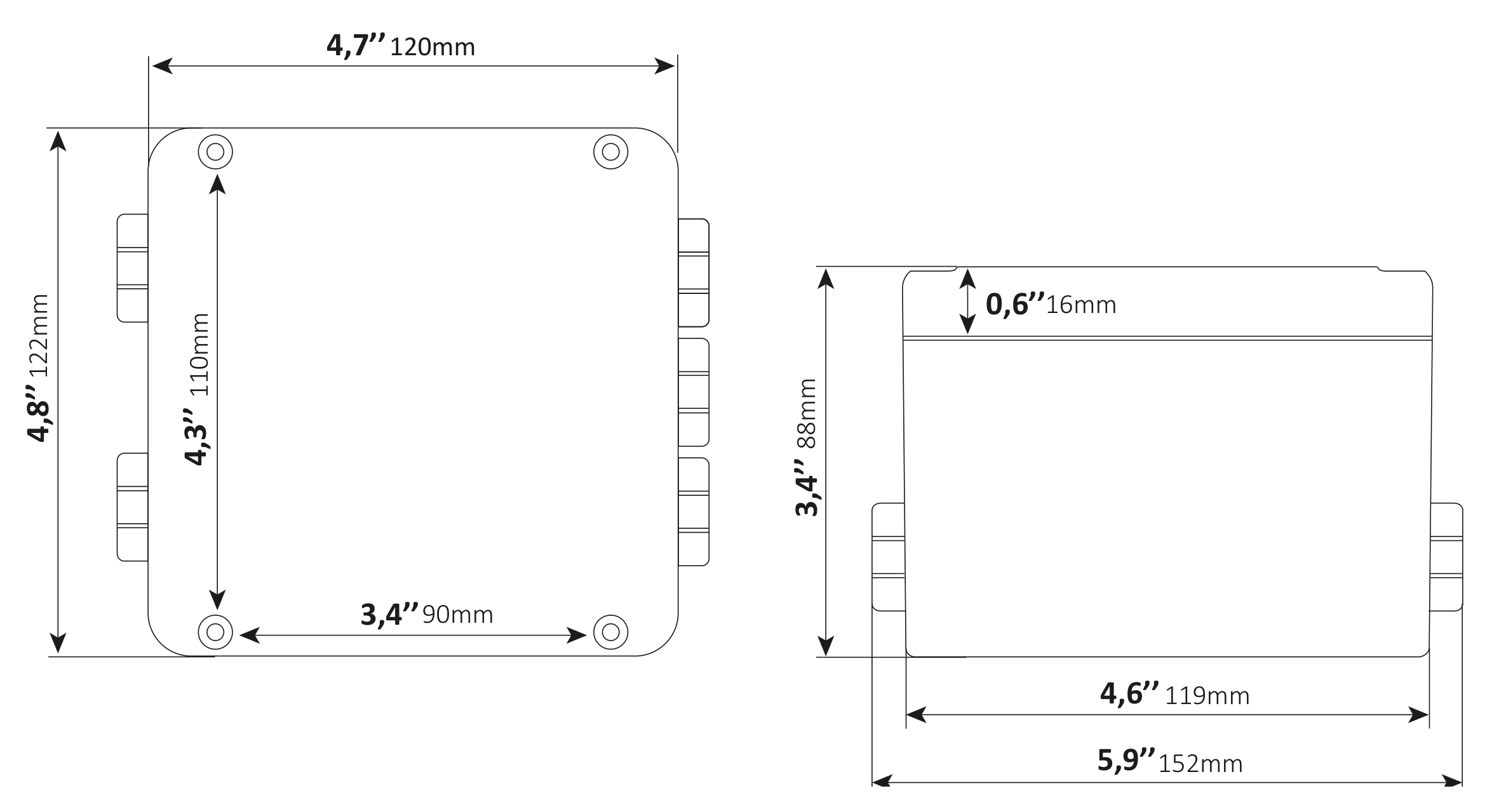

DIMENSIONSOutline dimensions.

Source: manufacturer datasheet Talk to a WeightechUSA specialist.
