Dinamica Generale 969-0493 Mobile Weigh Bar 2.125"
SKU
22493
- Description
- Additional Information

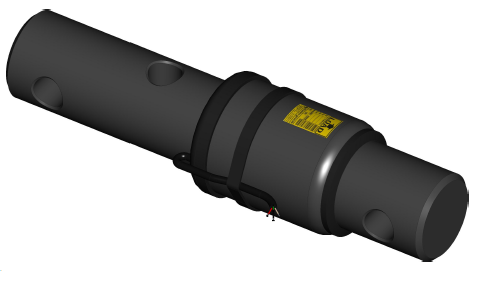

Mixer and Feeder Mobile Load Cell DG 969-0493
- High-quality alloy steel: Dinamica Generale's special thermal treatment makes it stable for years
- PTE cables: maximum protection against moisture, flame, and temperature (operating temperature -40° C ~ 70° C)
- High resistant coating (480h salt spray testing)
- Aluminum protection: strain gauge protected against impact (mobile models)
- Sealed strain gauges: sealing agent and industrial grade potting compound protect against harsh use in the agricultural field
- Temperature compensation as an option
- Custom mechanical design available on request
- IP68 Protection rate
- Replacement load cell for Digistar 140708 load cell
Applications
Feed Mixers, Forage Wagon, Grain Cart, Trailer, Baler, Bale Wrapper, Seed Tender, Manure, and Mineral Spreaders, Compactor.
Material Alloy Steel, Coated Internal Battery -- Rated output Static: 0.68 mV/V | Mobile: 0.45 mV/V Manufacturer Dinamica Generale Cable type 5 Wires Standard Cable length 21.3ft / 6.5m Mobile Rated capacity 9039 Lbs. / 4100 Kg Static Rated Capacity 13558 Lbs. / 6150 Kg Interchangeable Brand Digi-Star Interchangeable 140708 Load Point Diameter 2.125 in.
