Load Cup Set for ASC2 and DSC2 Load Cells, Self-Aligning Stainless Steel Mount

SKU
50010
$161.00
  • Self-aligning load cup set for ASC2 and DSC2 load cells
  • Capacities 20 to 50 T
  • Allows ±5° alignment, anti-rotation design
  • Hardened corrosion-resistant stainless steel
  • Designed for weighbridges without stay or check rods

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 04ASC2 / DSC2 load cup set

    Self-aligning stainless steel mount for ASC2 and DSC2 load cells.

    The ASC2/DSC2 self-aligning load cup set (SKU 50010) is a simple but effective weighing assembly for truck scales, rail scales and process weighing. It is made for the ASC2 and DSC2 load cells and is specially designed for weighbridges without stay or check rods.

    20–50T
    Capacity range
    ±5°
    Self-alignment allowed
    200×150mm
    Overall outline
    02 / 04Applications

    Where the load cup set is used.

    The datasheet lists weighbridges and process weighing, and describes the set as suitable for truck and rail scales.

    01

    Weighbridges

    Designed for weighbridges built without stay or check rods.

    02

    Truck and rail scales

    A simple self-aligning assembly under each ASC2 or DSC2 load cell.

    03

    Process weighing

    Anti-rotation, self-aligning mounting for heavy process weighing.

    03 / 04Construction

    What the mount is built for.

    01

    Self-aligning

    Allows ±5° alignment (5.0° max), so the load cell stays seated as the structure moves.

    02

    Anti-rotation design

    The mount is built to prevent the load cell from rotating.

    03

    Hardened stainless steel

    Hardened, corrosion-resistant stainless steel throughout for long-term stability.

    04

    Eccentric washers on request

    Eccentric washers can be supplied to keep the load cell vertical, perpendicular to its mounting surfaces.

    04 / 04Technical data and order code

    ASC2/DSC2 load cup set specifications.

    ProductASC2/DSC2 self-aligning load cup set
    SKU50010
    Compatible load cellsASC2 and DSC2
    Capacities20 to 50 T
    MaterialHardened corrosion-resistant stainless steel
    Alignment+/-5 deg (5.0 deg max)
    Anti-rotationYes

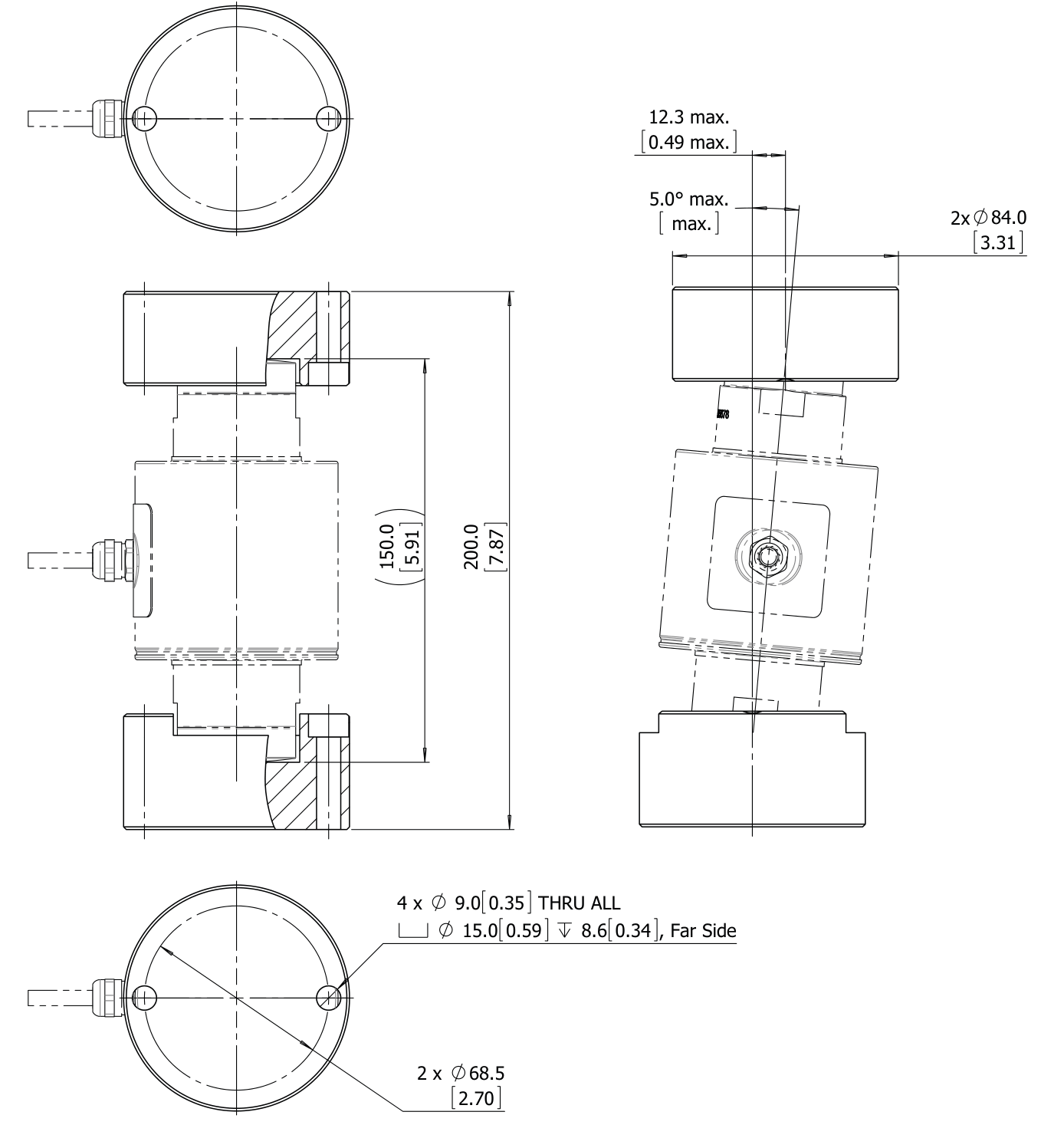

    Outline200 x 150 mm (7.87 x 5.91 in)
    Mounting holes4 x 9.0 mm through, 84.0 mm and 68.5 mm spacings
    Height12.3 mm max
    ProductOrder code
    Load cup set for ASC2 and DSC250010

    Which load cells does this set fit?

    The ASC2 and DSC2 load cells.

    Do I need stay or check rods?

    No. The set is designed for weighbridges without stay or check rods.

    Can the load cell be kept vertical?

    Yes. Eccentric washers can be supplied to place the load cell perpendicular to its mounting surfaces.
