Max Powercell MP MP-LCQ Double-Ended Beam Load Cell
- Description
- Additional Information
- 01 / 06Double-ended beam and weighbridge load cells
Double-ended beam and weighbridge load cells for confirmed-fit replacement and scale builds.
The Max Powercell MP MP-LCQ Double-Ended Beam Load Cell is a double-ended beam load cell. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Max Powercell and the model / part number as MP-LCQ.
CapacityConfirm from applicationAlloy steelMaterialIP68ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Double-ended beam cells are commonly used in truck scales, rail scales, hoppers, and other heavy multi-cell systems.
01Truck and rail scales
A strong fit for weighbridges and vehicle-scale load points.
weighbridge02Heavy vessels
Works in silo, hopper, and tank weighing when the mount controls load introduction.
vessel03Service replacement
Confirm cups, links, mounts, and cable exit before ordering.
retrofit03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm the rated capacity against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit

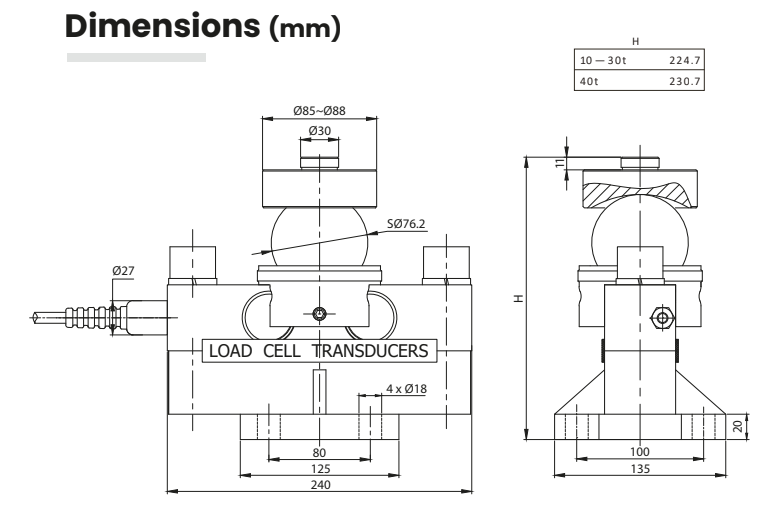

Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Alloy steel Protection IP68 Signal Analog Cable type Length: 19m; Diameter: ?6mm Manufacturer Max Powercell Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Maximum excitation 15 VDC Input impedance 750 ± 10 Ω Output impedance 703 ± 2 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.03 %FS Creep error ≤ ±0.02 % / 30 min Safe overload 150 %FS Operating temperature −30 to +70 °C Output sensitivity 2.0 ± 0.002 mV/V Zero balance ± 1 %FS Compensated temperature −10 to +40 °C Safe side load 300 %FS 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Max Powercell MP MP-LCQ Double-Ended Beam Load Cell MP-LCQ Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether MP-LCQ is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Alloy Steel Combined error ≤ ±0.03 %FS Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.02 % / 30 min Creep error 30 mins ?0.02 Input impedance 750 ± 10 Ω Insulation resistance ≥ 5000 MΩ Internal Battery No Lateral load limit 300 %F.S. Maximum excitation 15 VDC Maximum safe overload 150 %FS Operating temp range −30 to +70 °C Output impedance 703 ± 2 Ω Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Safe sideload 300 %FS Sensitivity 2.0?0.002 mV/V Zero balance ± 1 %FS Manufacturer Max Powercell Cable type Length: 19m; Diameter: ?6mm Max Voltage 15 VDC
