WeightechUSA Mighty Mount H8C Weigh Modules
- Description
- Additional Information
- 01 / 06Shear-beam weigh modules
Shear-beam weigh modules for confirmed-fit vessel and scale builds.
The WeightechUSA Mighty Mount H8C Weigh Modules is a shear-beam weigh-module kit. Use it for new scale builds or retrofit work after confirming load-cell capacity, module count, mounting geometry, cable length, junction box requirements, and the forces the structure must restrain.
250-10,000 lbCapacityNickel Plated Alloy SteelModule material9 m / 30 ft shielded cableCable length1 WTX4S junction boxJunction box02 / 06Application fitWhere this weigh module belongs.
Select the module by force path, vessel movement, required hardware, environment, and what the kit actually includes.
01Hopper and tank scales
Shear-beam modules suit compact process vessels and platform-supported assemblies.
shear beam02Livestock and floor builds
Check foot hardware, deck geometry, cable routing, and washdown exposure.
platform03Replacement flexibility
Match the load-cell model, capacity, mounting pattern, and junction-box wiring before retrofit.

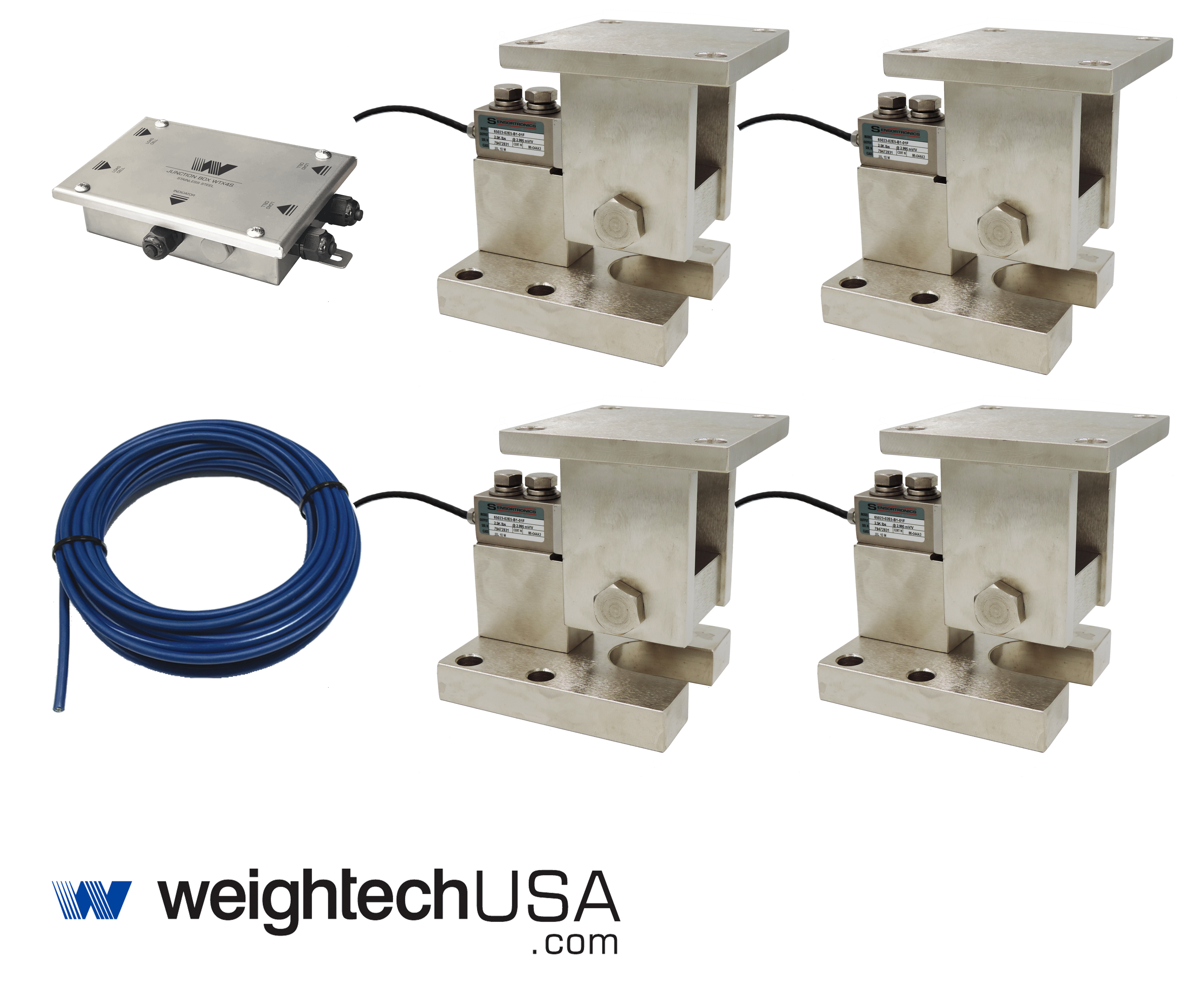

replacement03 / 06Kit scopeConfirm what is included before quoting or installing.
- Three or four load cells ZEMIC H8C
- 9 m / 30 ft shielded cable
- 1 WTX4S junction box
- 1 mild steel mount
- Three or four mild steel mounts
- Single module option: no cable, no load cell, no junction box
04 / 06Installation notesA weigh module is only accurate when the structure around it is correct.
Before ordering, verify the load path, restraint direction, expansion or movement allowance, lift-off protection, grounding, cable routing, and indicator input.
STRUCTUREMechanical restraint
Check side load, lift-off, thermal expansion, and vessel movement before final selection.
WIRINGElectrical interface
Confirm load-cell signal, junction box trim, cable length, shielding, and indicator compatibility.
SERVICEService access
Leave clearance for load-cell replacement, leveling, grounding strap inspection, and cable service.
05 / 06Product mediaReference images and interactive product views.

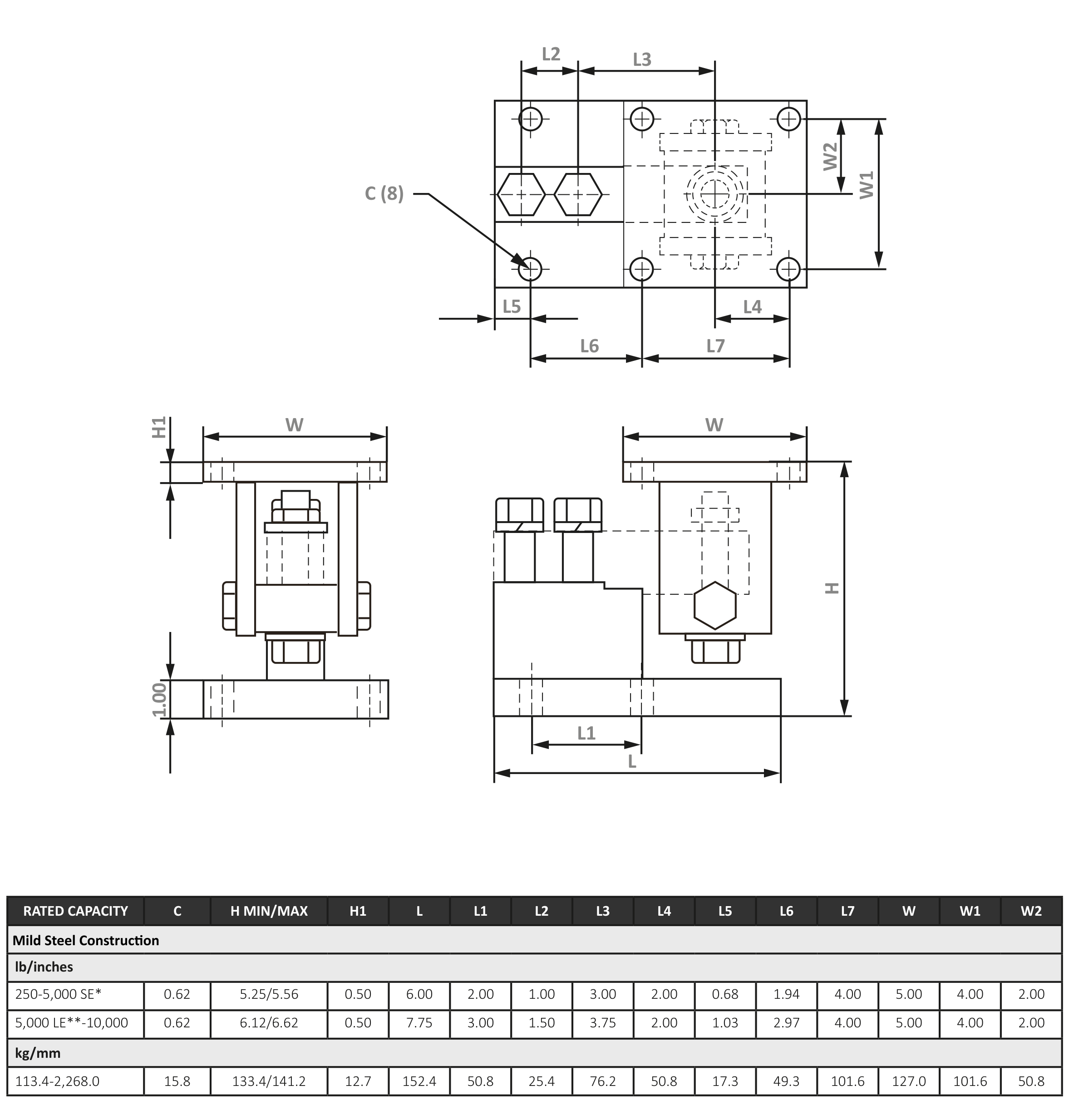

06 / 06Technical dataCatalog attributes for this weigh module.
Module material Nickel Plated Alloy Steel Cable length 9 m / 30 ft shielded cable Junction box 1 WTX4S junction box Manufacturer WeightechUSA Interchangeable note ANYLOAD 563YHM2 Product Order code WeightechUSA Mighty Mount H8C Weigh Modules mighty-mount Is this always a complete weighing kit?
No. Some options are module-only or hardware-only. Confirm the selected option before ordering.
What should be checked before replacement?
Match capacity, load-cell model, module geometry, cable length, junction box, thread, and the vessel or platform load path.
Can WeightechUSA help confirm fit?
Yes. Send photos, dimensions, old part numbers, capacity, cable details, and the application.
Talk to a WeightechUSA weigh-module specialist.
Send the vessel or platform details, current load-cell labels, mounting dimensions, cable length, and target capacity. We will confirm whether mighty-mount is the right fit.
Email SalesCall +1 (954) 666-0877 × 305 Material Nickel Plated Alloy Steel Manufacturer WeightechUSA Interchangeable ANYLOAD 563YHM2
