Dinamica Generale 969-0214 Mobile Weigh Bar 2.5" to 2.125"
- Description
- Additional Information
- 01 / 07Load pins and weigh bars
Load pins and weigh bars for confirmed-fit replacement and scale builds.
The Dinamica Generale 969-0214 Mobile Weigh Bar 2.5" to 2.125" is a load pin or weigh bar rated 12500 LBS / 5670 KG. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Dinamica Generale and the model / part number as 22214. It is listed for mixer, feeder, and mobile agricultural equipment where the replacement must match the original bar or cell geometry and electrical output.
12500 LBS / 5670 KGRated capacityCoated alloy steelMaterialIP68ProtectionAnalogSignal02 / 07Application fitWhere this load cell belongs.
These load cells and weigh bars are intended for agricultural mixer and feeder wagons, grain carts, manure spreaders, forage wagons, seed tenders, and similar mobile equipment. Confirm the installed bar or compression cell by part number, diameter, length, connector, cable length, rated output, and whether the machine uses mobile or static loading values.
01Mixer and feeder wagons
Built for agricultural weighing where feed, forage, grain, manure, or mineral material is loaded, mixed, transported, or dispensed.
agriculture02Mobile equipment replacement
Match the old Dinamica, Digistar, Weigh-Tronix, or OEM part number plus the physical bar dimensions before ordering.
replacement03Signal and connector
Confirm mV/V output, mobile/static rating, cable length, connector type, and indicator compatibility before installation.
wiring03 / 07Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 12500 LBS / 5670 KG against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 07Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 07Dimensions and connectionsUse the available images to confirm the mechanical envelope and cable connection.

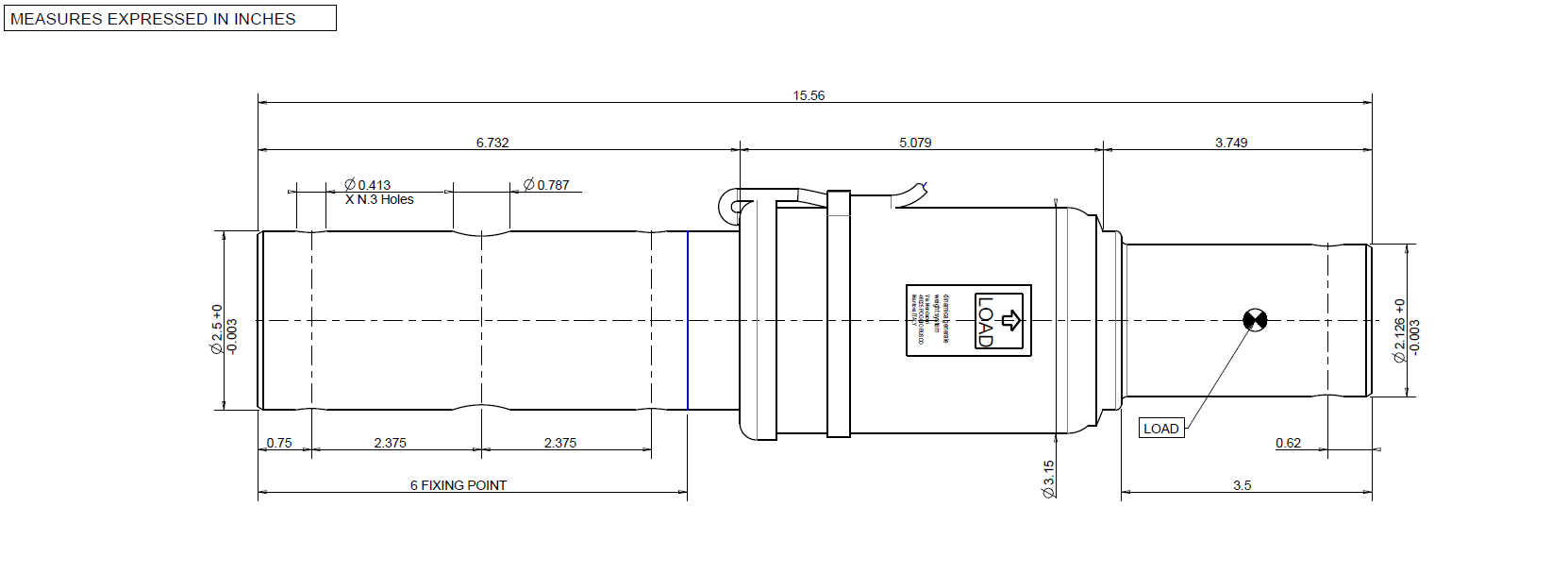

Dimension reference
Connection reference 06 / 07Technical dataCatalog attributes for this load cell.
Material Coated alloy steel Protection IP68 Signal Analog Application Mixer and feeder wagon load-cell replacement for agricultural equipment Cable length 30.2ft / 9.2m Cable type SPM - 5 point military connector Manufacturer Dinamica Generale Rated capacity 12500 LBS / 5670 KG Capacity weight 14575 KG @ 2mV/V Rated output 2 mV/V @ 14,575 kg Operating temperature −40 to +70 °C Number of wires 4 Interchangeable brand Avery Weigh-Tronix 07 / 07Part number referenceOrder code and fit FAQ.
Product Order code Dinamica Generale 969-0214 Mobile Weigh Bar 2.5" to 2.125" 22214 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 22214 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Coated Internal Battery -- Operating temp range −40 to +70 °C Rated capacity 12500 LBS / 5670 KG Rated output 0.78 mV/V Manufacturer Dinamica Generale Cable type SPM - 5 point military connector Cable length 30.2ft / 9.2m Interchangeable Brand Avery Weigh-Tronix Load Point Diameter 2.125 in. Fixing Point Diameter 2.50 in. Bar Length 15.56 in. Number of Wires 4 wires
