Vishay-Revere · Load cell
HPS Single Point Load Cell · 30 kg · 00HPS-030K-3S-02FRevere 00HPS-030K-3S-02F 30 kg Single Point Load Cell
SKU 00HPS-030K-3S-02F
2,116.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Revere 00HPS-030K-3S-02F is a 30 kg capacity variation of the Revere HPS single point load cell family, manufactured in stainless steel 1.4542 with IP66 and IP68 ingress protection.
30 kgRated capacityStainless steel 1.4542MaterialIP66 and IP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Revere Manufacturer part number 00HPS-030K-3S-02F Capacity 30 kg Rated output 2 mV/V Material Stainless steel 1.4542 Protection IP66 and IP68 Signal Analog Input impedance 400 ± 6 Ω Output impedance 350 ± 7 Ω Insulation resistance ≥ 5000 MΩ Recommended excitation 5 to 12 V Maximum excitation 15 V Compensated temperature −10 to +40 °C Operating temperature −40 to +80 °C Storage temperature −40 to +90 °C Safe overload 150 %Emax Ultimate overload 300 %Emax Cable length 7 m 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Revere 00HPS-030K-3S-02F 30 kg Single Point Load Cell 00HPS-030K-3S-02F Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

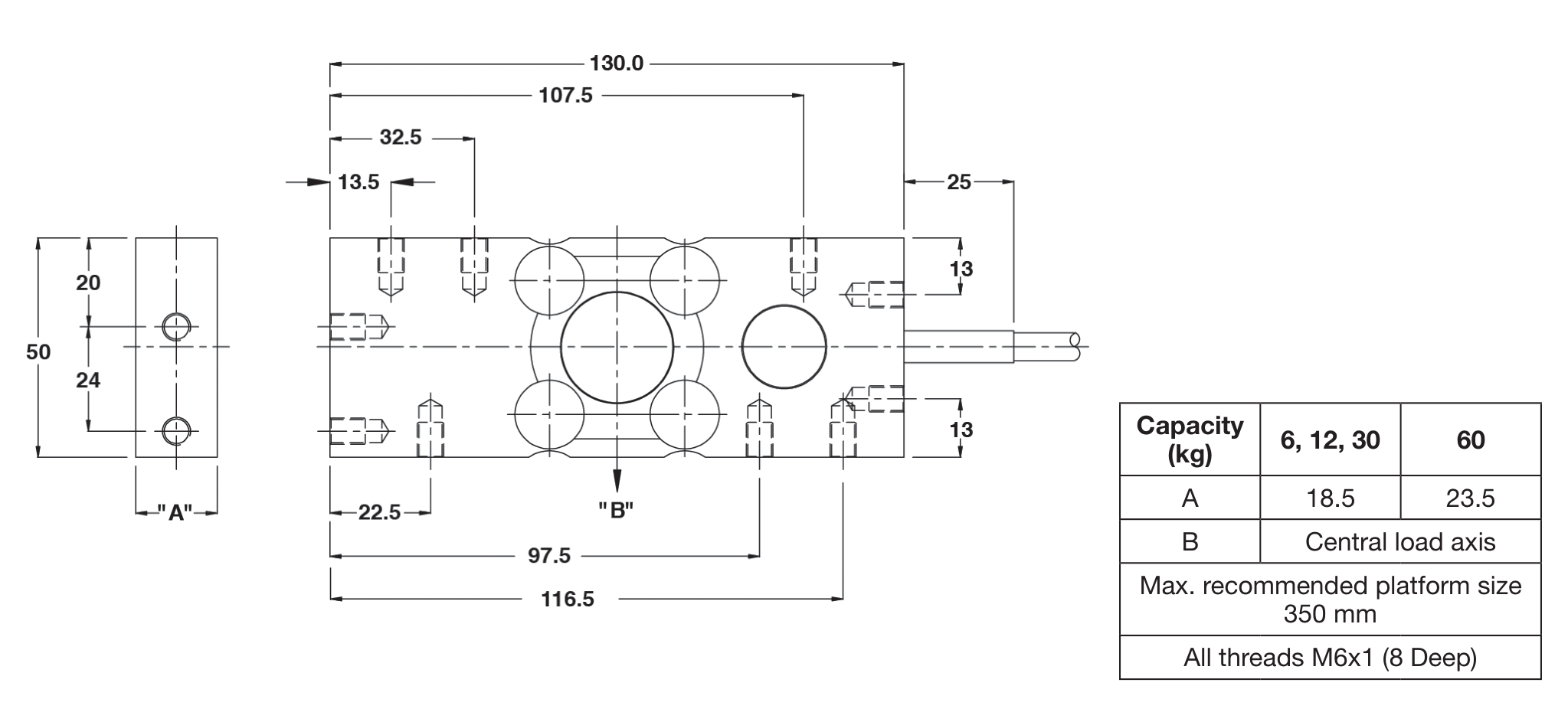

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class Waterproof, IP69K Material Stainless Steel Combined error ≤ ±0.0200 %FSO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0245 % / 30 min (C3) Input impedance 400 ± 6 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 15 V Maximum safe overload 150 %Emax Max platform size 350 x 350 mm Operating temp range −40 to +80 °C Output impedance 350 ± 7 Ω Rated capacity 30 kg Rated output 2 mV/V Rated output tolerance ± 0.2 %mV/V Recommended excitation 5 to 12 V Safe sideload 100 %Emax Storage temp range −40 to +90 °C Ultimate central overload 300 %Emax Zero balance ± 1.0 %FSO Manufacturer Vishay-Revere Cable length 7 m Manufacturer's Part Number 00HPS-030K-3S-02F Approval OIML R60 C3 Short name HPS Single Point Load Cell · 30 kg · 00HPS-030K-3S-02F
