Vishay-Revere · Load cell
HPS Single Point Load CellRevere HPS Stainless Steel Single Point Load Cell
SKU hpsm
IP68; Stainless Steel; Analog signal; OIML R60 C3; 7 m cable
990.00
- Description
- Additional Information
- 01 / 02Single Point Load Cell
Revere HPS single point load cell family.
The Revere HPS is a single point load cell family. This page describes the family; use the table below to select the SKU your application requires.
6 kg – 60 kgKg-line capacity rangeStainless steel 1.4542Material02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Stainless steel 1.4542 Protection IP66 and IP68 Signal Analog Input impedance 400 ± 6 Ω Output impedance 350 ± 7 Ω Insulation resistance ≥ 5000 MΩ Recommended excitation 5 to 12 V Maximum excitation 15 V Compensated temperature −10 to +40 °C Operating temperature −40 to +80 °C Storage temperature −40 to +90 °C Safe overload 150 %Emax Ultimate overload 300 %Emax Cable length 7 m Rated output 2 mV/V CAPACITY TABLEAvailable capacities.

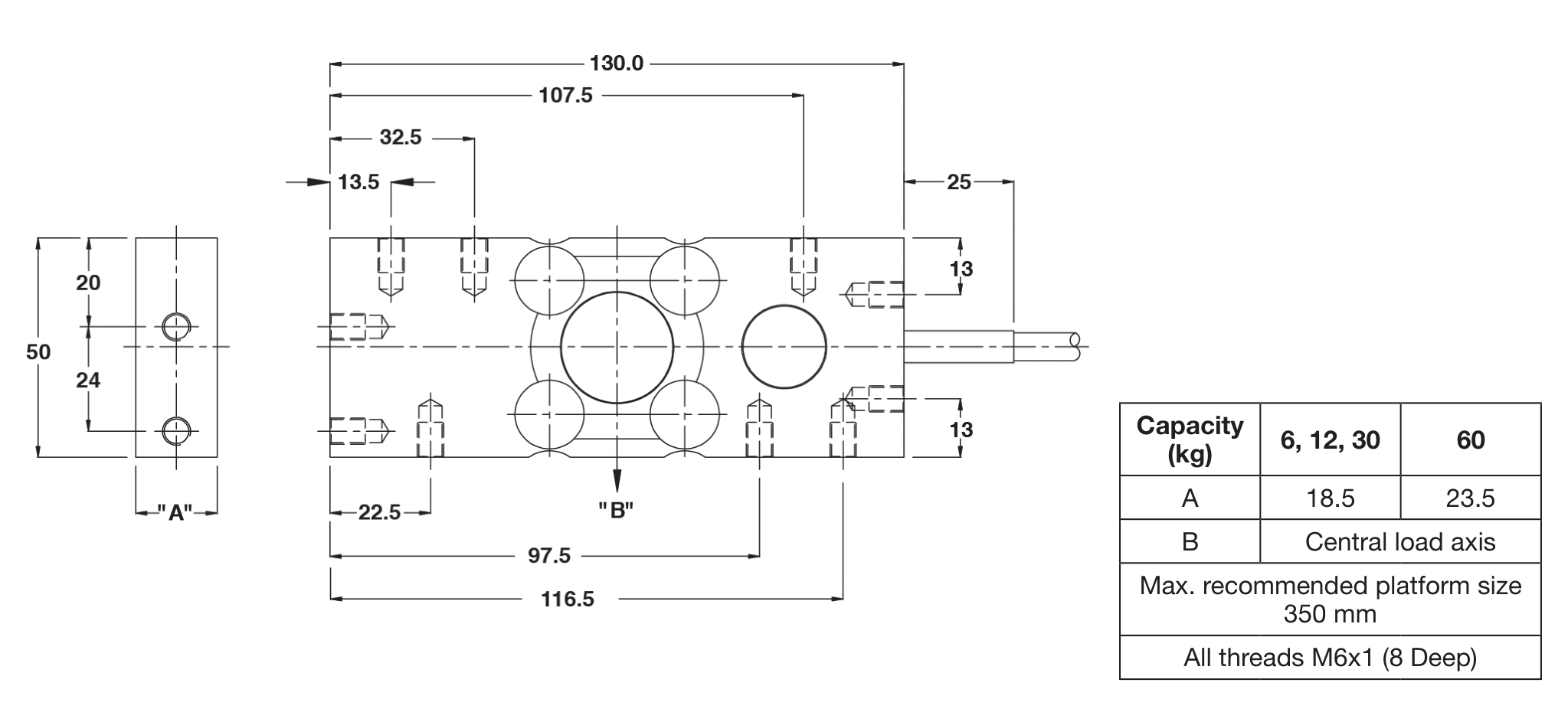

Capacity Manufacturer part number SKU Approval Price 6 kg 00HPS-006K-3S-02F 00HPS-006K-3S-02F OIML R60 C3 $1,543.00 30 kg 00HPS-030K-3S-02F 00HPS-030K-3S-02F ATEX, FM, OIML $2,116.00 60 kg 00HPS-060K-3S-00F 00HPS-060K-3S-00F ATEX, FM, OIML $2,147.00 — — hpsm-12 kg ATEX, FM, OIML $928.00 DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which HPS SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.0200 %FSO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0245 % / 30 min (C3) Input impedance 400 ± 6 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 15 V Maximum safe overload 150 %Emax Max platform size 350 x 350 mm Non-repeatability ≤ ±0.0100 %FSO Operating temp range −40 to +80 °C Output impedance 350 ± 7 Ω Rated output 2.0 mV/V Recommended excitation 5 to 12 V Safe sideload 100 %Emax Storage temp range −40 to +90 °C Ultimate central overload 300 %Emax Zero balance ± 1.0 %FSO Manufacturer Vishay-Revere Cable length 7 m Approval OIML R60 C3 Short name HPS Single Point Load Cell Hero chips IP68; Stainless Steel; Analog signal; OIML R60 C3; 7 m cable
