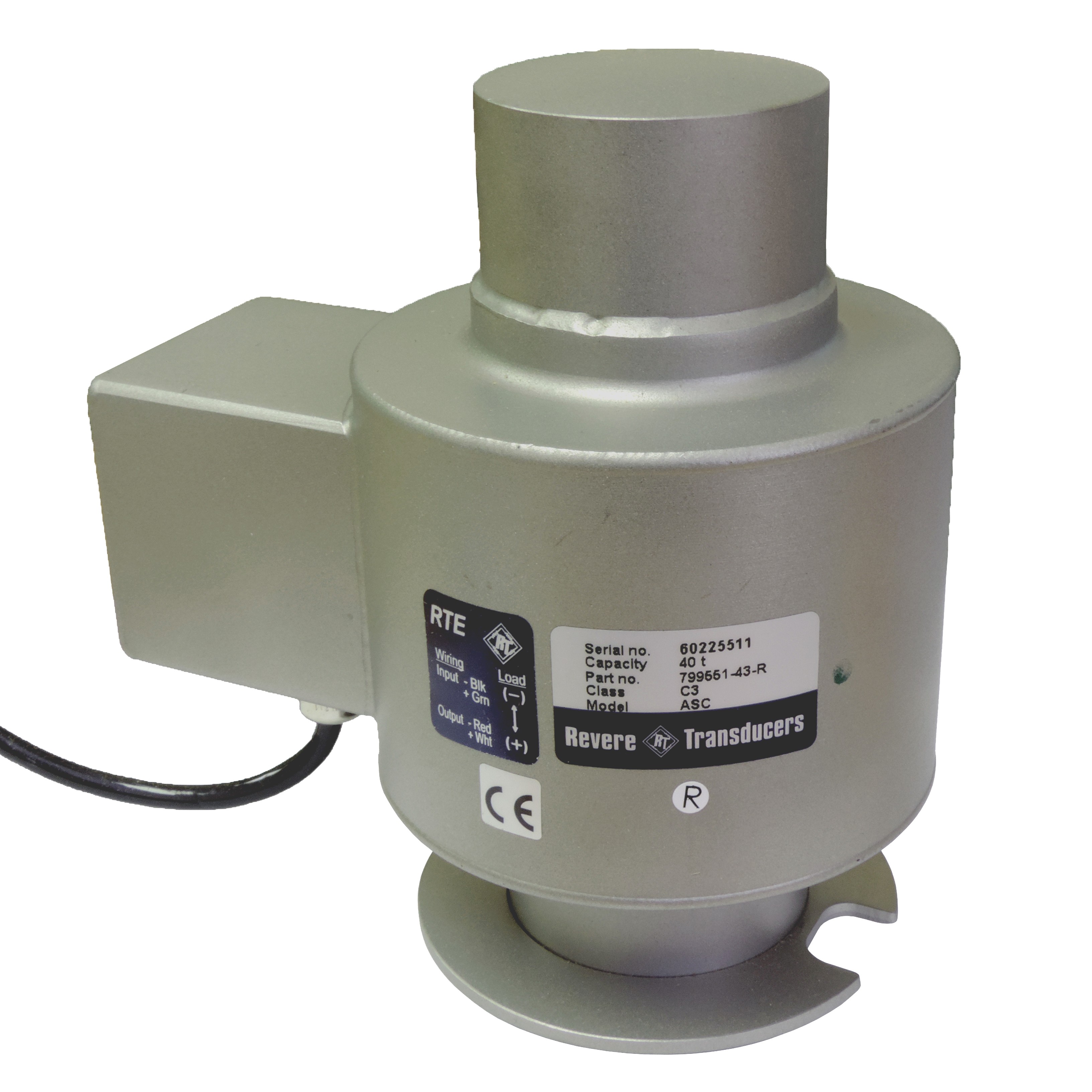

Revere DSC Digital Compression Load Cell
Vishay-Revere · Load cell

DSC Compression Load Cell

SKU Vishay-DSC
1,600.00
☎ x305

Regular Price: $1,600.00

Sale Price $830.00

  • Vishay-DSC - Revere DSC Digital Compression Load Cell
  • Type: Digital compression, single-column load cell
  • Manufacturer: Revere (Vishay Precision Group)
  • Material: Stainless steel
  • Protection: IP66 and IP68
  • Signal: Digital (RS-422 / RS-485)
  • Cable length: 15 m
  • Available in 2 capacities, from 30 t to 40 t. See the table below for each SKU and part number.

Datasheet

* Required

OR
  • Description
  • Additional Information
  • 01 / 02Digital Compression Load Cell

    Revere DSC digital compression load cell family.

    The Revere DSC is a digital compression load cell family. This page describes the family; use the table below to select the SKU your application requires.

    30,000 kg – 40,000 kg
    Kg-line capacity range
    Stainless steel (DIN 1.4542)
    Material
    02 / 02Technical data

    Series-wide catalog attributes.

    Values that differ per SKU are listed in the table below and on each SKU's own page.

    MaterialStainless steel (DIN 1.4542)
    ProtectionIP66 and IP68
    SignalDigital (RS-422 / RS-485)
    Excitation voltage range12.5 to 18.0 VDC
    Recommended excitation15 VDC
    Maximum current consumption80 mA
    Start-up current150 mA
    Insulation resistance> 5000 MΩ
    Compensated temperature−10 to +40 °C
    Operating temperature−40 to +80 °C
    Storage temperature−40 to +90 °C
    Safe overload150 %Emax
    Ultimate overload300 %Emax
    Baud rate9600 bit/s
    Signal update rate25 per second
    Maximum transmission distance1200 m
    Cable length15 m
    CAPACITY TABLE

    Available capacities.

    CapacityManufacturer part numberSKUApprovalPrice
    30 t (30,000 kg)DSC-C3-30T-60T5ROIML R60 C3$830.00
    40 t (40,000 kg)DSC-C3-40T-60T5ROIML R60 C3$830.00

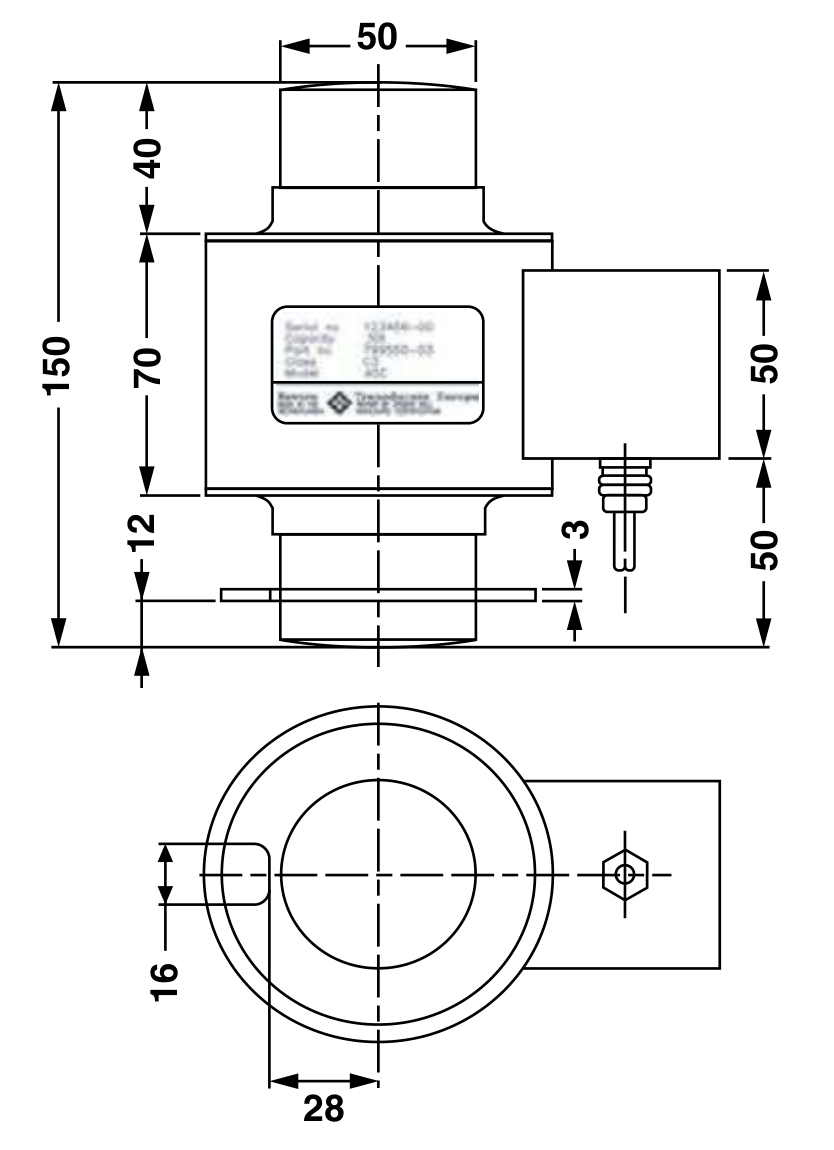

    DIMENSIONS

    Outline dimensions.

    Revere DSC Digital Compression Load Cell dimensions drawing
    Source: manufacturer datasheet
