BLSCA Compression Load CellBerman BLSCA Compression Load Cell
SKU BLSCA
IP68; Stainless Steel; Analog signal
907.00
- Description
- Additional Information
- 01 / 02Compression Load Cell
Berman BLSCA compression load cell family.
The Berman BLSCA is a compression load cell family. This page describes the family; use the table below to select the SKU your application requires.
50,000 kg – 50,000 kgKg-line capacity rangeStainless steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Stainless steel Protection IP68 (EN 60529) Signal Analog Input impedance 1150 ± 15 Ω Output impedance 1050 ± 5 Ω Insulation resistance ≥ 5000 MΩ Zero balance ± 1 %FS Compensated temperature −10 to +50 °C Operating temperature −20 to +60 °C Excitation voltage 10 VDC/AC Safe overload 120 %FS Non-linearity ± 0.02 %FS Hysteresis ± 0.02 %FS Repeatability ± 0.01 %FS Creep (30 min) ± 0.02 %FS Temperature effect on zero ± 0.02 %FS / 10 °C Temperature effect on output ± 0.02 %FS / 10 °C Cable 12 m, Ø6 mm, 4 wires Rated output 2.00 ± 0.005 mV/V CAPACITY TABLEAvailable capacities.

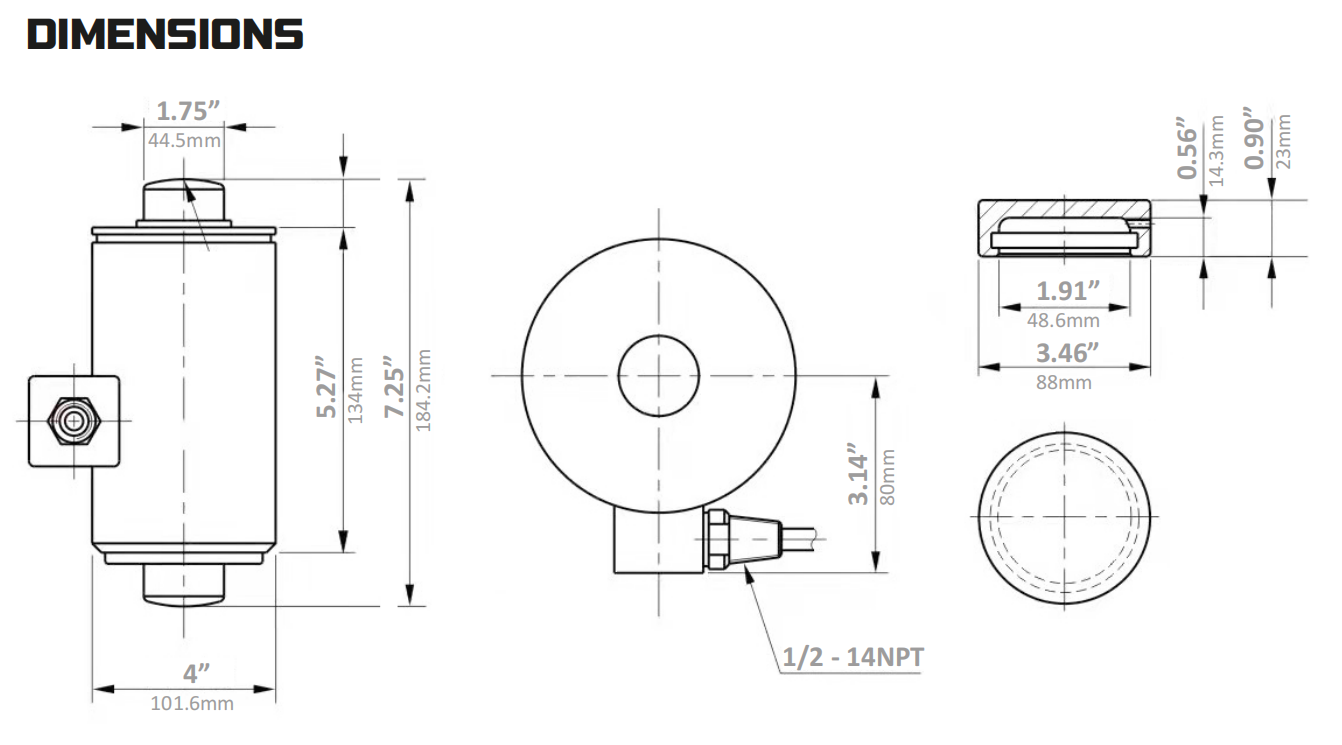

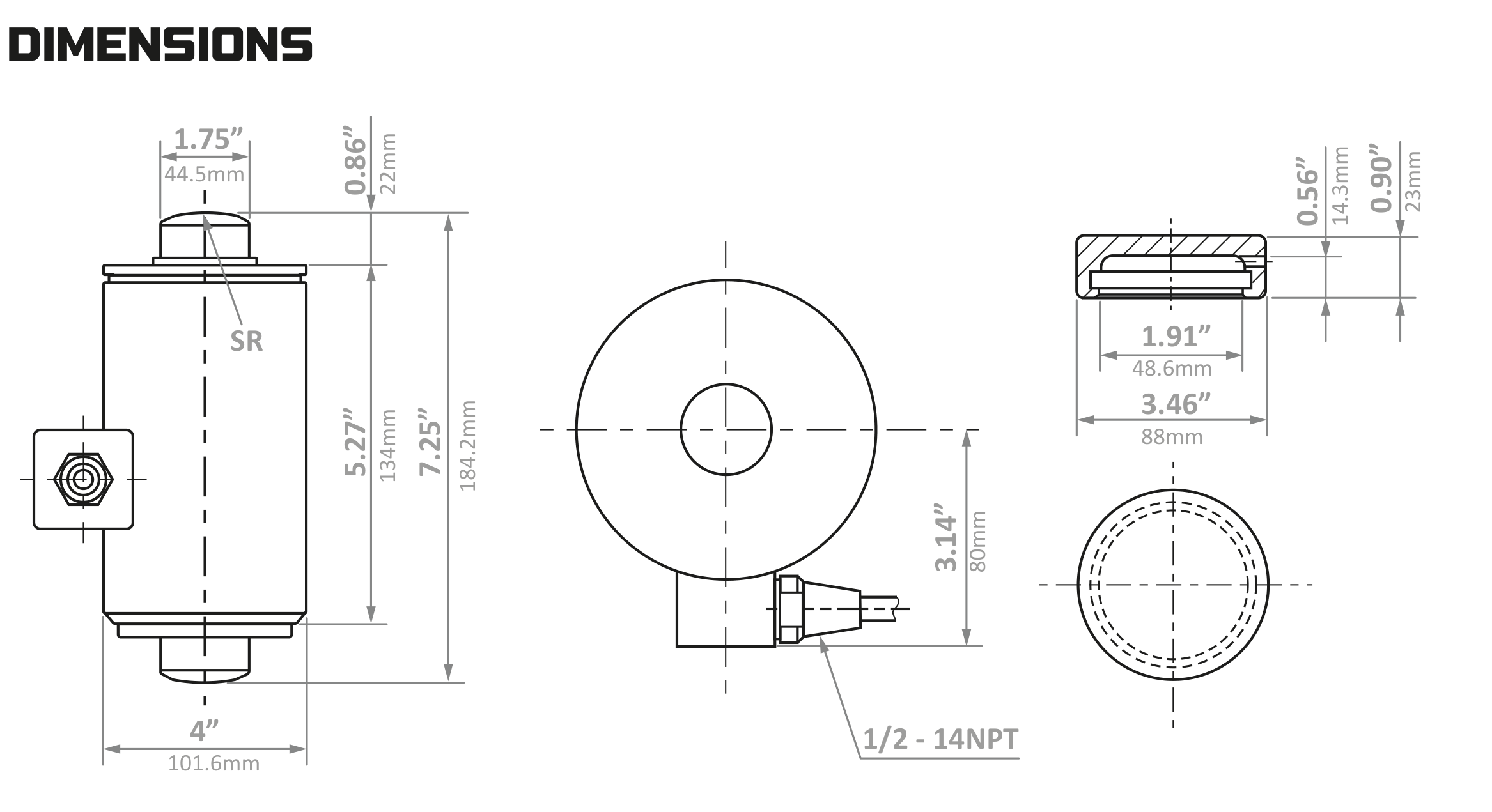

Capacity Manufacturer part number SKU Approval Price 50,000 lb BLSCA-50K 11011 — $420.00 DIMENSIONSOutline dimensions.
Source: Berman BLSCA datasheet Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which BLSCA SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Compensated temp range −10 to +50 °C Creep error 20mins ± 0.02 %FS / 30 min Creep error 30 mins ± 0.02 %F.S. Hysteresis error ± 0.02 %F.S. Input impedance 1150 ± 15 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum safe overload 120 %FS Non-repeatability ± 0.01 %FS Operating temp range -20ºC ~ +60 ºC Output impedance 1050 ± 5 Ω Rated output 2.00 ± 0.005 mV/V Recommended excitation 10 VDC/AC Temp effect on zero ± 0.02 %F.S./10ºC Zero balance ± 1 Manufacturer Berman Weighing Technology Cable type 4 wires | Length: 12m | Diameter: Ø6mm Interchangeable Cardinal SCA Repeatability ± 0.01 %F.S. Short name BLSCA Compression Load Cell Hero chips IP68; Stainless Steel; Analog signal
