Berman BLS S-Type Load Cell Tension Mount, Clevis and Rod End Kit (2,500-20,000 lb)
- Description
- Additional Information
- 01 / 05Berman BLS tension mount
S-type load cell tension mount for suspended hoppers and tanks.
The Berman BLS mount holds an S-type load cell in tension. Each module has two PTFE-lined rod ends, two clevises and a grounding strap. It is made for suspended hoppers and tanks and for mechanical scale conversions. The S-type load cell is not included; choose the module whose capacity and thread match your cell.
2,500–20,000lbCapacities offered, per module8Part numbers (capacity and thread)PTFELined rod ends02 / 05ApplicationsWhere the BLS mount is used.
The datasheet lists suspended hoppers and tanks and mechanical scale conversions. The same S-type mount kit is also used on:
01Suspended hoppers and tanks
Hangs a vessel from S-type load cells so the full load passes through the cells.
02Mechanical scale conversions
Converts a lever or mechanical scale to electronic weighing.
03Hybrid and overhead track scales
Tension or compression mounting for hybrid scales and overhead track scales.
04Belt scales and process weighing
Listed by the manufacturer for belt scales and process weighing applications.
03 / 05What is in the kitHardware included in each module.
01PTFE-lined rod ends
Two rod ends per module with PTFE-lined ball joints.
02Zinc-plated clevises
Two clevis assemblies per module, supplied with nylon washers.
03Grounding strap
A ground strap is supplied for electrical continuity across the mount.
04Load cell not included
Order the S-type load cell separately, matched to the capacity and thread of the module.
04 / 05Technical dataBLS tension mount specifications.

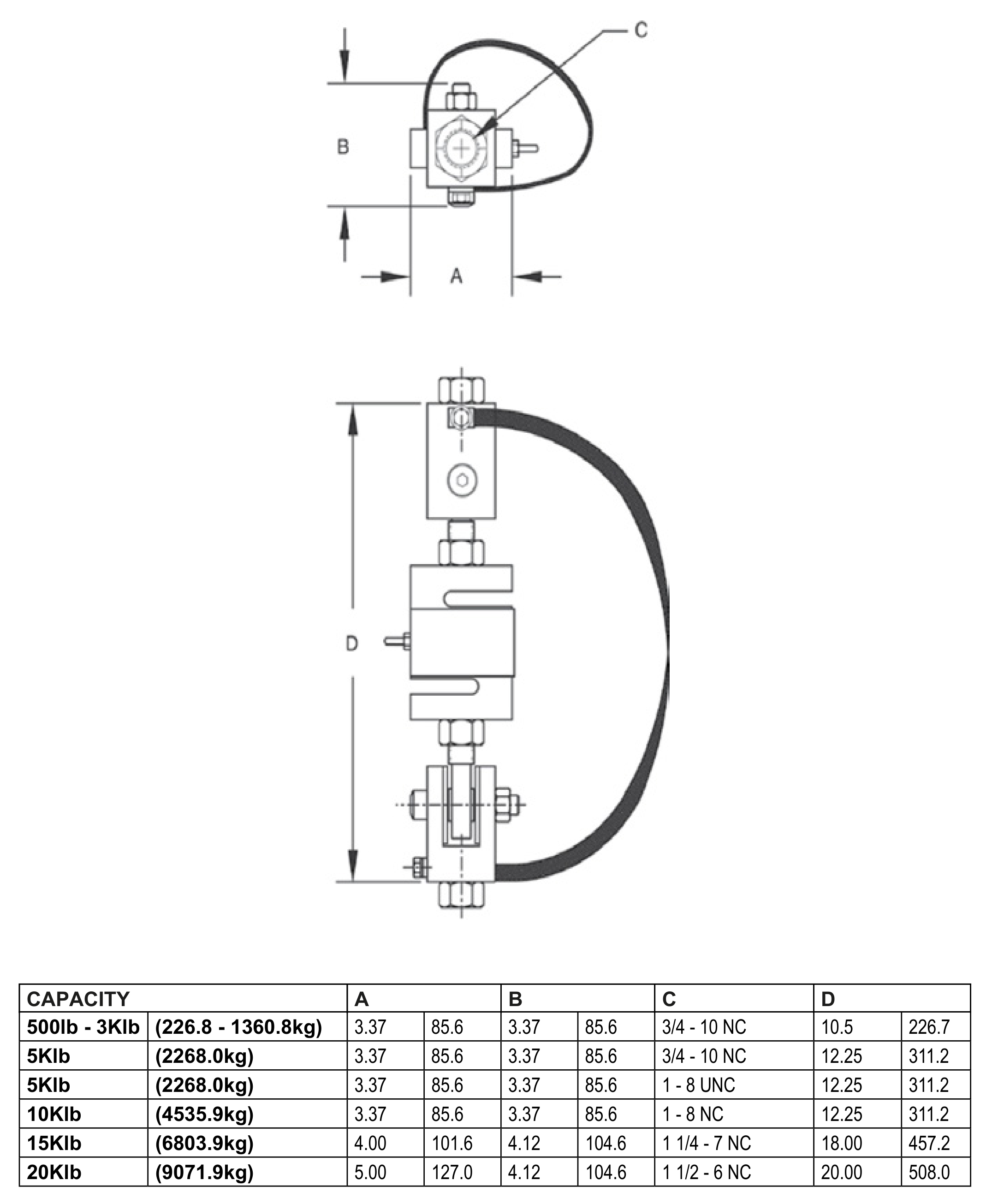

Brand / model Berman BLS Product type S-type load cell tension mount Capacities offered 2,500 / 3,000 / 5,000 / 10,000 / 15,000 / 20,000 lb per module Clevis thread by capacity (datasheet) 500-3,000 lb: 3/4-10 UNC; 5,000 lb: 3/4-10 UNC or 1-8 UNC; 10,000 lb: 1-8 UNC; 15,000 lb: 1 1/4-7 UNC; 20,000 lb: 1 1/2-6 UNC Rod ends 2 per module, PTFE-lined Clevis 2 per module, zinc-plated, with nylon washers Grounding Ground strap included Load cell Not included 05 / 05Part numbers and FAQOrder codes by capacity and thread.
Product Order code Berman BLS, 2,500 lb, 5/8-11 UNC 10891 Berman BLS, 2,500 lb, 3/4-10 UNC 10892 Berman BLS, 3,000 lb, 3/4-10 UNC 10893 Berman BLS, 5,000 lb, 3/4-10 UNC 10894 Berman BLS, 5,000 lb, 1-8 UNC 10895 Berman BLS, 10,000 lb, 1-8 UNC 10896 Berman BLS, 15,000 lb, 1 1/4-7 UNC 10897 Berman BLS, 20,000 lb, 1 1/2-6 UNC 10898 Which module do I need?
Pick the capacity of your S-type load cell, then the clevis thread that fits it. The 5,000 lb size is offered with either a 3/4-10 UNC or a 1-8 UNC thread.
Is the load cell included?
No. Each SKU is the mount only (rod ends, clevises, nylon washers and ground strap).
Why is the 2,500 lb module offered in two threads?
SKU 10892 has a 3/4-10 UNC thread, as listed in the datasheet. SKU 10891 has a 5/8-11 UNC thread, which the datasheet thread chart does not list, so confirm it against your load cell before ordering.
