S-Type Load Cell Tension Mount Kit

SKU
s-type-load-cell-mount-kit
$500.00
  • s-type-load-cell-mount-kit - S-Type Load Cell Tension Mount Kit
  • Type: S-type tension weigh-module kits
  • Module material: Alloy Steel
  • Capacity: 500-20,000 lb
  • Kit includes:
  • 1 S-Type Load Cell 500 lb to 20,000 lb Alloy Steel
  • 1 Pair of Clevis
  • 2 Rod End Alloy Steel PTFE + 2 Jam Nut

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 06S-type tension weigh-module kits

    S-type tension weigh-module kits for confirmed-fit vessel and scale builds.

    The S-Type Load Cell Tension Mount Kit is an S-type tension weigh-module kit. Use it for new scale builds or retrofit work after confirming load-cell capacity, module count, mounting geometry, cable length, junction box requirements, and the forces the structure must restrain.

    500-20,000 lb
    Capacity
    Alloy Steel
    Module material
    Confirm
    Cable length
    Confirm
    Junction box
    02 / 06Application fit

    Where this weigh module belongs.

    Select the module by force path, vessel movement, required hardware, environment, and what the kit actually includes.

    01

    Suspended vessels

    Built around S-type load cells for hoppers, hanging tanks, overhead tracks, and tension links.

    tension
    02

    Mechanical conversions

    Useful when a suspended or lever-style structure needs a complete tension hardware package.

    retrofit
    03

    Kit verification

    Confirm load-cell count, capacity, thread size, cable, and junction-box requirements before ordering.

    fit check
    03 / 06Kit scope

    Confirm what is included before quoting or installing.

    • 1 S-Type Load Cell 500 lb to 20,000 lb Alloy Steel
    • 1 Pair of Clevis
    • 2 Rod End Alloy Steel PTFE + 2 Jam Nut
    04 / 06Installation notes

    A weigh module is only accurate when the structure around it is correct.

    Before ordering, verify the load path, restraint direction, expansion or movement allowance, lift-off protection, grounding, cable routing, and indicator input.

    STRUCTURE

    Mechanical restraint

    Check side load, lift-off, thermal expansion, and vessel movement before final selection.

    WIRING

    Electrical interface

    Confirm load-cell signal, junction box trim, cable length, shielding, and indicator compatibility.

    SERVICE

    Service access

    Leave clearance for load-cell replacement, leveling, grounding strap inspection, and cable service.

    05 / 06Product media

    Reference images and interactive product views.

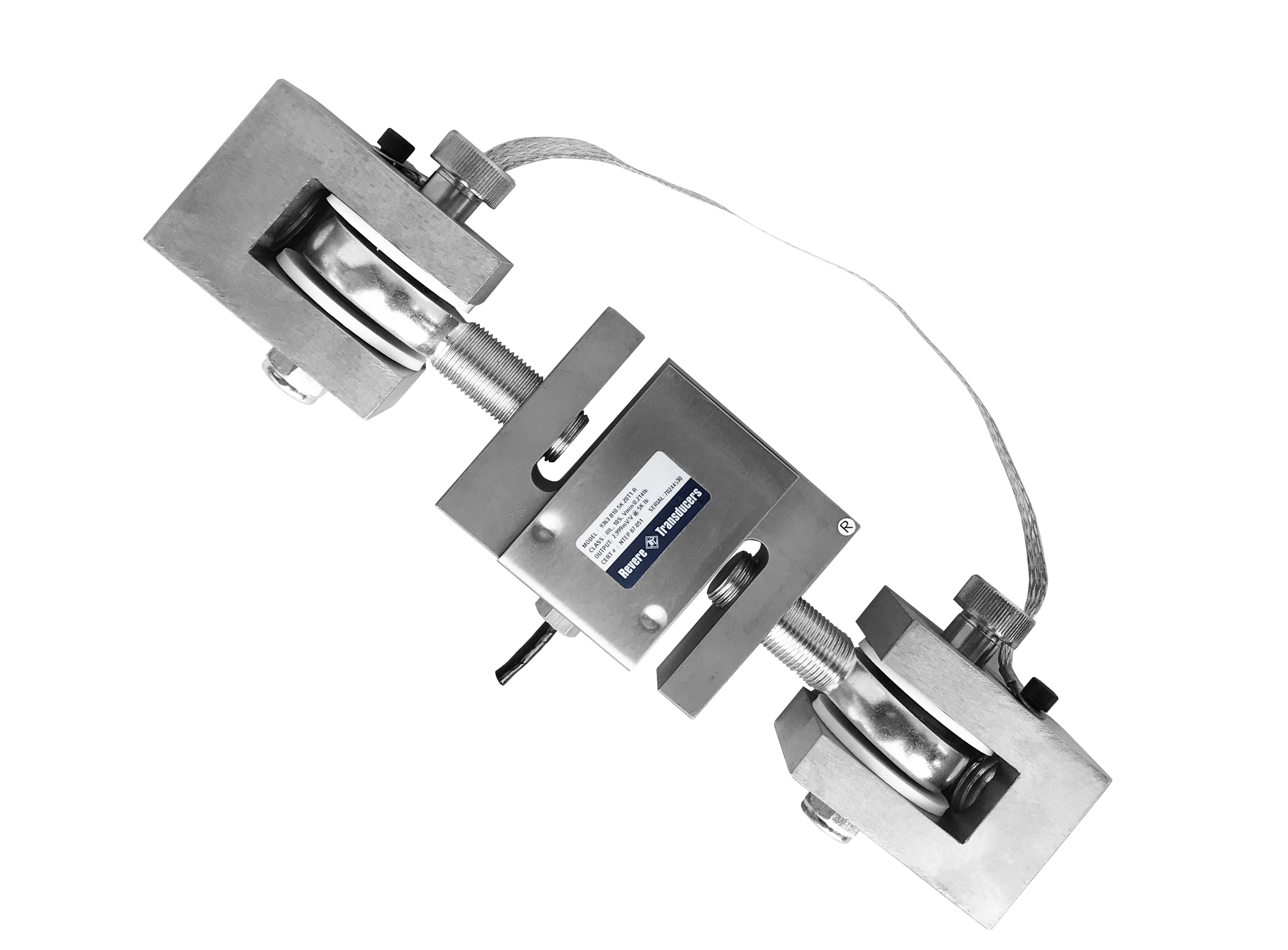

    S-Type Load Cell Tension Mount Kit product or technical reference image
    06 / 06Technical data

    Catalog attributes for this weigh module.

    Module materialAlloy Steel
    ManufacturerWeightechUSA
    ProductOrder code
    S-Type Load Cell Tension Mount Kits-type-load-cell-mount-kit

    Is this always a complete weighing kit?

    No. Some options are module-only or hardware-only. Confirm the selected option before ordering.

    What should be checked before replacement?

    Match capacity, load-cell model, module geometry, cable length, junction box, thread, and the vessel or platform load path.

    Can WeightechUSA help confirm fit?

    Yes. Send photos, dimensions, old part numbers, capacity, cable details, and the application.

    Talk to a WeightechUSA weigh-module specialist.

    Send the vessel or platform details, current load-cell labels, mounting dimensions, cable length, and target capacity. We will confirm whether s-type-load-cell-mount-kit is the right fit.
