RTN-33t C4/C5 Ring Torsion Load CellSchenck Process RTN C4/C5-33t D724754.10 Ring Torsion Load Cell
- Description
- Additional Information
- 01 / 06Compression, canister, rocker column, and ring torsion load cells
Compression, canister, rocker column, and ring torsion load cells for confirmed-fit replacement and scale builds.

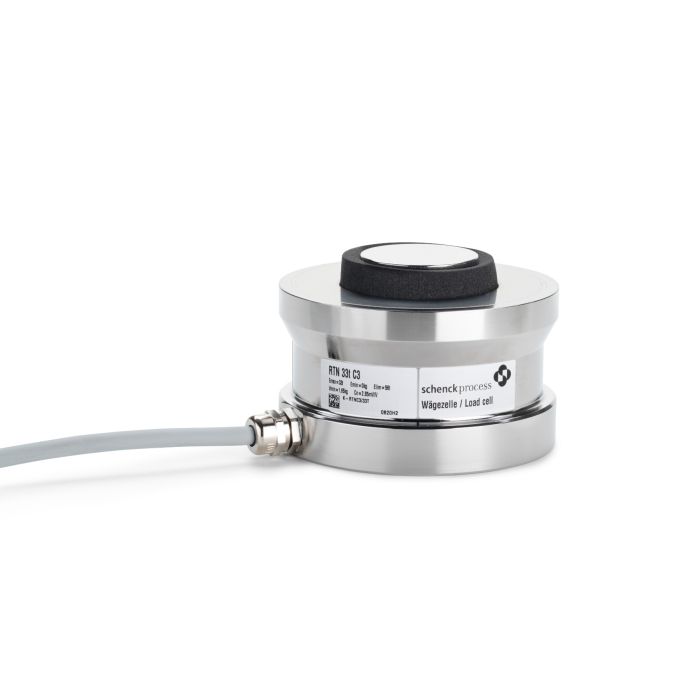

The Schenck Process RTN C4/C5-33t D724754.10 Ring Torsion Load Cell is a compression, canister, rocker column, or ring torsion load cell rated 33 t. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Schenck Process and the model / part number as D724754.10.
33 tRated capacityStainless steelMaterialIP68 (tested 100 h at 1 m water column)ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Compression cells cover canister, rocker-column, ring-torsion, and disk-style weighing for tanks, silos, truck scales, and high-capacity systems.
01Truck and tank scales
Compression geometry is common in high-capacity vehicle and vessel weighing.
compression02Outdoor and washdown service
Material and seal rating matter because compression cells often live under structures.
environment03Mount-dependent accuracy
Cup, mount, lift-off, and side-load details must be confirmed with the cell.
mount03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 33 t against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68 (tested 100 h at 1 m water column). Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel Protection IP68 (tested 100 h at 1 m water column) Signal Analog Cable length 15 m Cable type 4-wire cable Manufacturer Schenck Process Manufacturer part number D724754.10 Rated capacity 33 t Capacity weight 33 t Accuracy C4/C5 Mi 7.5 Approval OIML R60 C5 (5000 intervals) · C4 Mi 7.5 (7500, multi-interval scales) Rated output 2.85 mV/V Rated output tolerance ±2.85 µV/V Recommended excitation 5 VDC (rated 5 … 30 V) Maximum excitation 60 V Input impedance 4450 ± 100 Ω Output impedance 4010 ± 0.5 Ω Insulation resistance > 20 GΩ Combined error 0.01% Creep error ± 0.009 % Cn / 30 min Safe overload 58 t Ultimate overload 130 t Operating temperature −40 to +80 °C Cable fitting Brass, nickel-plated / sealing CR/NBR Non-linearity ± 0.01 % Cn Hysteresis ± 0.01 % Cn Compensated temperature −10 to +40 °C Storage temperature −50 to +85 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Schenck Process RTN C4/C5-33t D724754.10 Ring Torsion Load Cell 15477 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

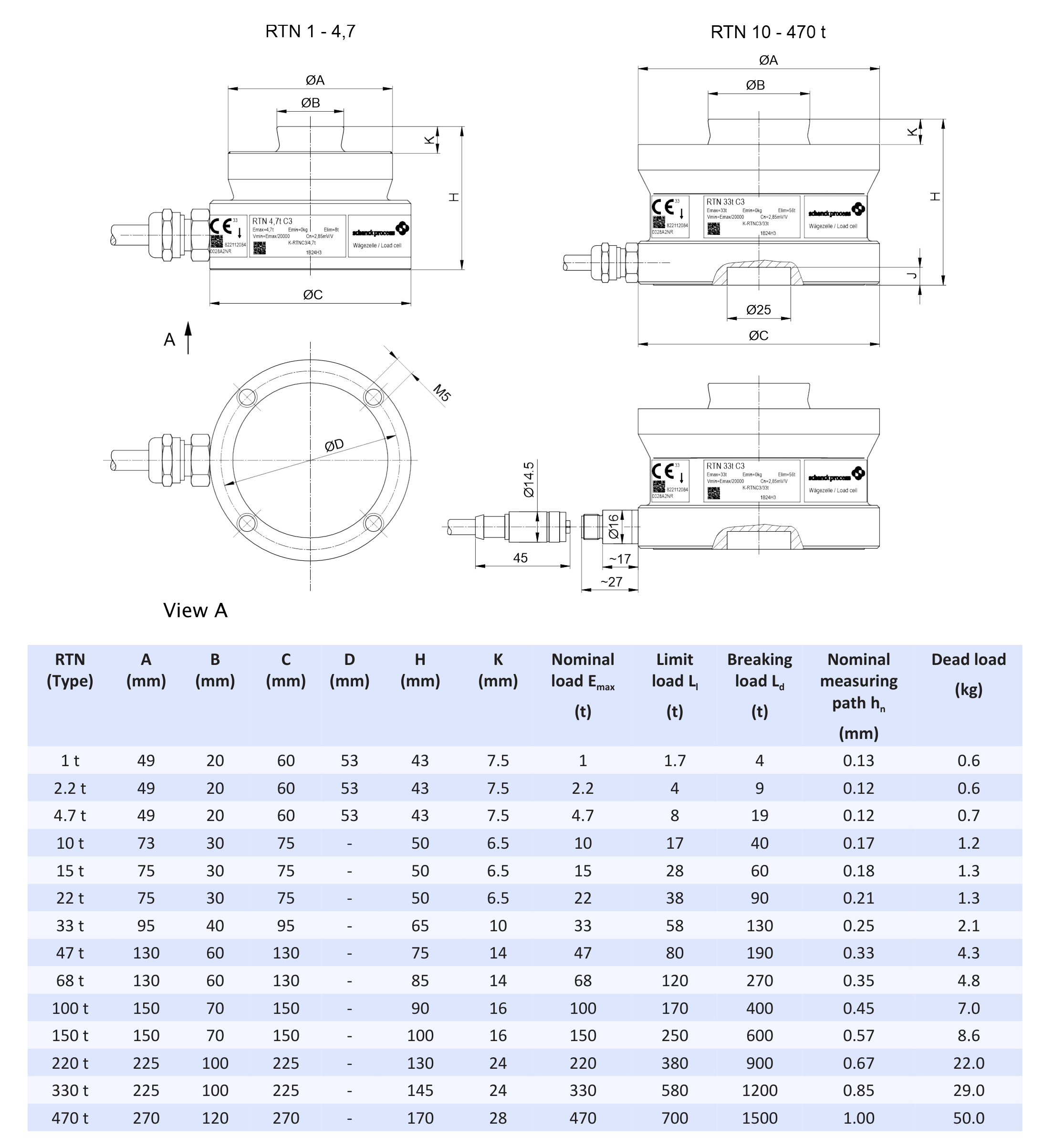

DIMENSIONSOutline dimensions.

Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 15477 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error 0.01% Compensated temp range −10 to +40 °C Creep error 20mins ± 0.009 % Cn / 30 min Hysteresis error ± 0.01 % Cn Input impedance 4450 ± 100 Ω Insulation resistance > 20 GΩ Internal Battery -- Load cell connection Input+: black; Input-: blue; Output+: red; Output-: white; Shield: yellow Maximum excitation 60 V Maximum number of intervals 5000 Maximum safe overload 58 t NTEP/OIML OIML R60 Operating temp range −40 to +80 °C Output impedance 4010 ± 0.5 Ω Rated capacity 33 t Rated output 2.85 mV/V Rated output tolerance ±2.85 µV/V Recommended excitation 5 VDC (rated 5 … 30 V) Storage temp range −50 to +85 °C Temp effect on output ±0.0062 %/10K Temp effect on zero ±0.0058 %/10K Ultimate central overload 130 t Manufacturer Schenck Process Cable type 4-wire cable Cable length 15 m Accuracy C4/C5 Mi 7.5 Manufacturer's Part Number D724754.10 Approval OIML R60 C4/C5 Short name RTN-33t C4/C5 Ring Torsion Load Cell Hero chips IP68; Stainless Steel; Analog signal; OIML R60 C4/C5; 15 m cable
