60040-250lb 60040-025L-NC-01F Shear Beam Load CellSensortronics 60040-250lb 60040-025L-NC-01F Shear Beam Load Cell
- Description
- Additional Information
- 01 / 06Shear beam and bending beam load cells
Shear beam and bending beam load cells for confirmed-fit replacement and scale builds.
The Sensortronics 60040-250lb 60040-025L-NC-01F Shear Beam Load Cell is a shear beam or bending beam load cell rated 250 lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Sensortronics and the model / part number as 60040-025L-NC-01F.
250 lbRated capacityNickel-plated alloy steelMaterialIP65ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Shear and bending beam cells are common choices for floor scales, livestock platforms, tanks, hoppers, and low-to-mid capacity industrial scales.
01Platforms and floor scales
A practical load-cell family for fabricated platforms and summing-box systems.
platform02Tanks and hoppers
Works well when mounts control side load and vessel movement.
vessel03Livestock and agriculture
Often used in platform and chute builds when capacity and environmental rating fit.
ag scale03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 250 lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP65. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Nickel-plated alloy steel Protection IP65 Signal Analog Manufacturer Sensortronics Manufacturer part number 60040-025L-NC-01F Rated capacity 250 lb Capacity 250 lb Capacity in pounds 250 lb Sealing Covered and Potted Thread Through Hole Rated output 2.0 mV/V Recommended excitation 10 VDC / VAC RMS Maximum excitation 15 VDC / VAC RMS Input impedance 380–450 Ω Output impedance 349–355 Ω Insulation resistance > 1000 MΩ @ 50 VDC Combined error ≤ ±0.03 %FSO Non-repeatability ≤ ±0.01 %FSO Creep error ≤ ±0.03 %FSO / 20 min Safe overload 150 %RC Ultimate overload 300 %RC Operating temperature −18 to +65 °C Output sensitivity 2.0 mV/V Zero balance ± 1.0 %FSO Compensated temperature −10 to +40 °C Storage temperature −50 to +85 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Sensortronics 60040-250lb 60040-025L-NC-01F Shear Beam Load Cell 12401 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

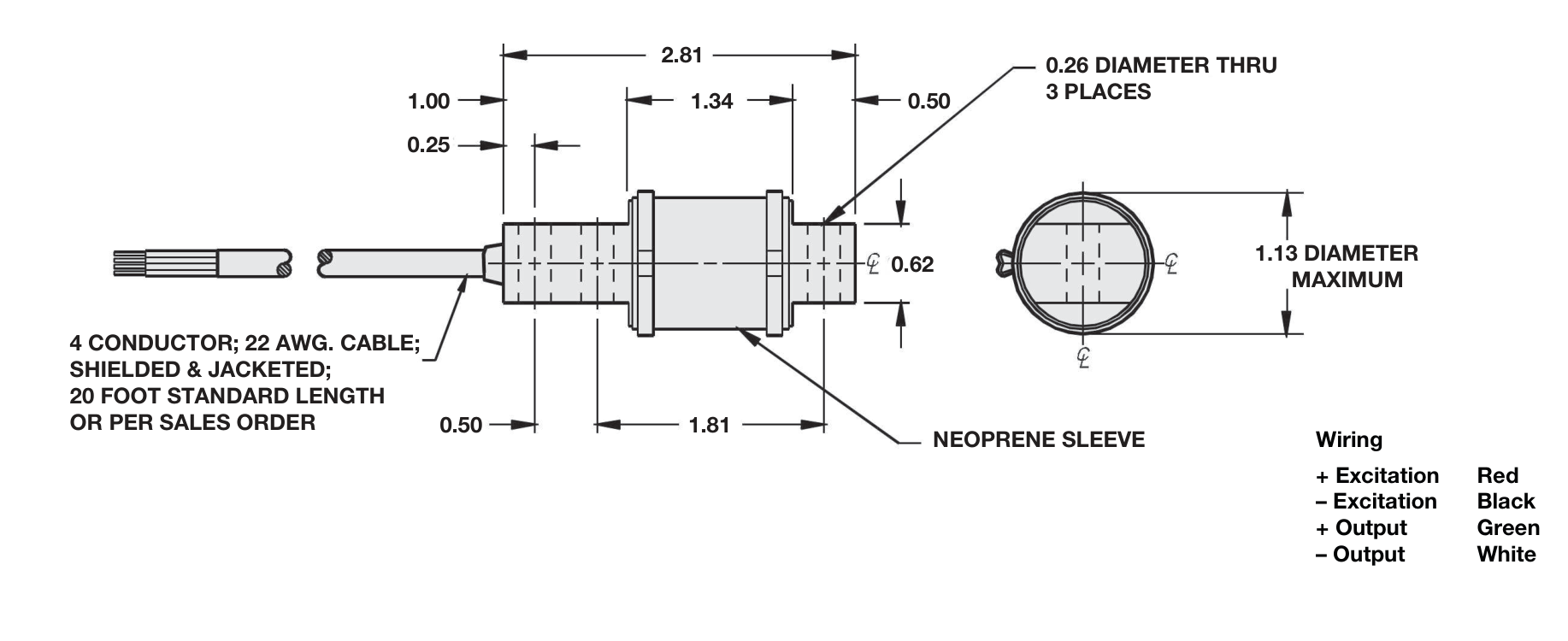

DIMENSIONSOutline dimensions.

Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12401 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP65 Material Nickel-Plated Alloy Steel Combined error ≤ ±0.03 %FSO Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.03 %FSO / 20 min Input impedance 380–450 Ω Insulation resistance > 1000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %RC Non-repeatability ≤ ±0.01 %FSO Operating temp range −18 to +65 °C Output impedance 349–355 Ω Rated capacity 250 lb Rated output 2.0 mV/V Recommended excitation 10 VDC / VAC RMS Storage temp range −50 to +85 °C Ultimate central overload 300 %RC Zero balance ± 1.0 %FSO Manufacturer Sensortronics Capacity 250 lb Thread - Clevis Through Hole Sealing Covered and Potted Manufacturer's Part Number 60040-025L-NC-01F Short name 60040-250lb 60040-025L-NC-01F Shear Beam Load Cell Hero chips 250 lb; IP65; Nickel-Plated Alloy Steel; Analog signal
