60050-250lb S-Type Load CellSensortronics 60050-250lb 60050-250L-NC-00F S-Type Tension/Compression Load Cell
- Description
- Additional Information
- 01 / 06S-type tension/compression load cells
S-type tension/compression load cells for confirmed-fit replacement and scale builds.
The Sensortronics 60050-250lb 60050-250L-NC-00F S-Type Tension/Compression Load Cell is an S-type tension/compression load cell rated 250 lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Sensortronics and the model / part number as 60050-250L-NC-00F.
250 lbRated capacityStainless steelMaterialIP67 (environmentally sealed)ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
S-type cells are used for suspended, tension, and inline force applications where the force path must stay centered.
01Hanging scales
S-type geometry fits suspended weighing with clevises, rod ends, or tension hardware.
tension02Force measurement
Useful where the system measures pull, compression, or bidirectional force.
force03Retrofit work
Match thread, capacity, material, and wiring before swapping an existing S-beam.
replacement03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 250 lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67 (environmentally sealed). Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel Protection IP67 (environmentally sealed) Signal Analog Cable length 20.5 ft / 6.25 m Manufacturer Sensortronics Manufacturer part number 60050-250L-NC-00F Rated capacity 250 lb Capacity 250 lb Capacity in pounds 250 lb Sealing Covered and Potted Approval FM (cFMus) Thread Unified National Rated output 3.0 mV/V Recommended excitation 5–10 VDC Maximum excitation 15 VDC Input impedance 343–450 Ω Output impedance 349–355 Ω Insulation resistance 5000 MΩ Safe overload 150 %FS Operating temperature −18 to +65 °C Output sensitivity 3.0 mV/V Non-linearity ≤ ±0.03 %FS Hysteresis ≤ ±0.02 %FS 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Sensortronics 60050-250lb 60050-250L-NC-00F S-Type Tension/Compression Load Cell 60050-250L-NC-00F Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

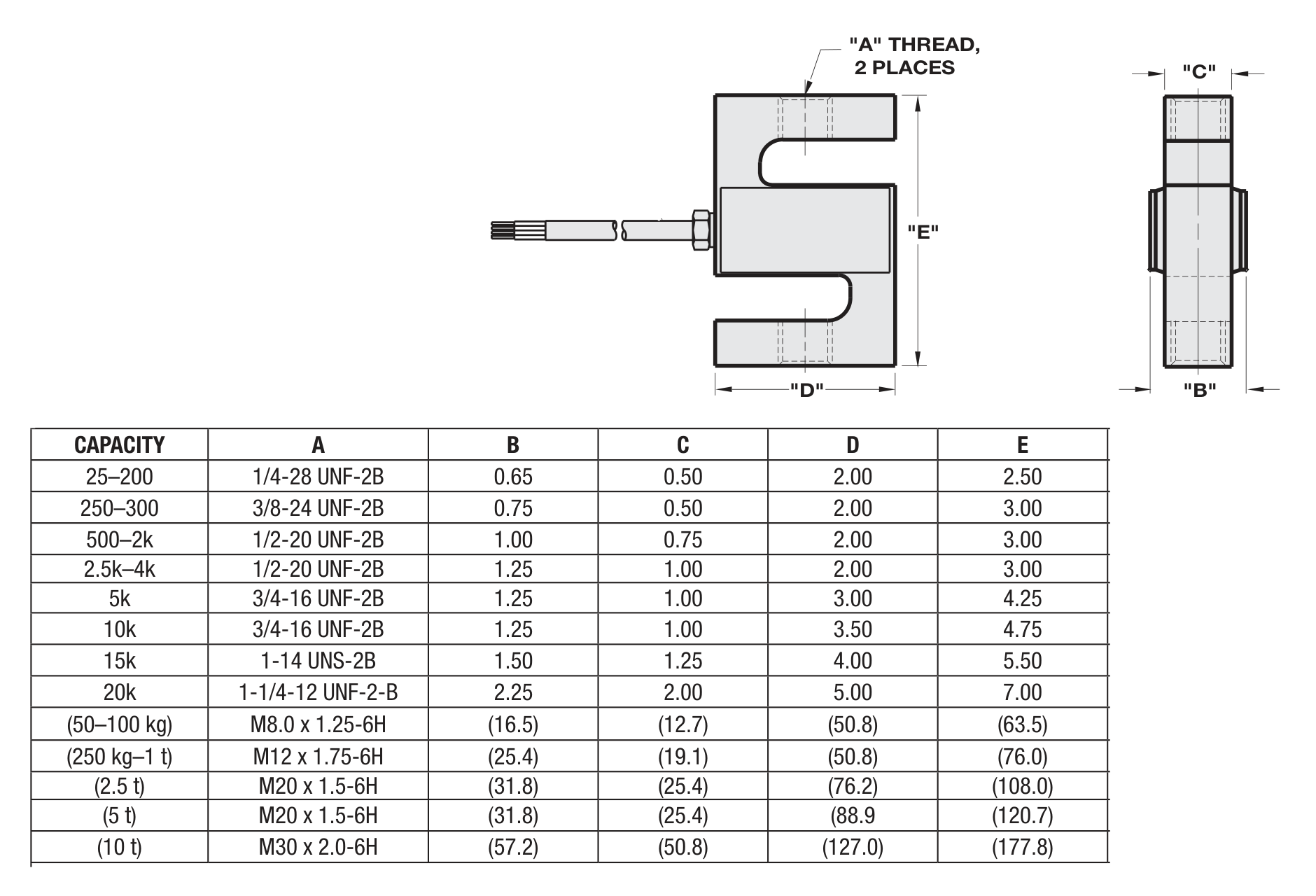

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 60050-250L-NC-00F is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Stainless Steel Hysteresis error ≤ ±0.02 %FS Input impedance 343–450 Ω Insulation resistance 5000 MΩ Internal Battery -- Maximum excitation 15 VDC Maximum safe overload 150 %FS Operating temp range −18 to +65 °C Output impedance 349–355 Ω Rated capacity 250 lb Rated output 3.0 mV/V Recommended excitation 5–10 VDC Manufacturer Sensortronics Capacity 250 lb Cable length 20.5 ft / 6.25 m Thread - Clevis Unified National Sealing Covered and Potted Manufacturer's Part Number 60050-250L-NC-00F Approval FM Short name 60050-250lb S-Type Load Cell Hero chips 250 lb; IP67; Stainless Steel; Analog signal; FM
