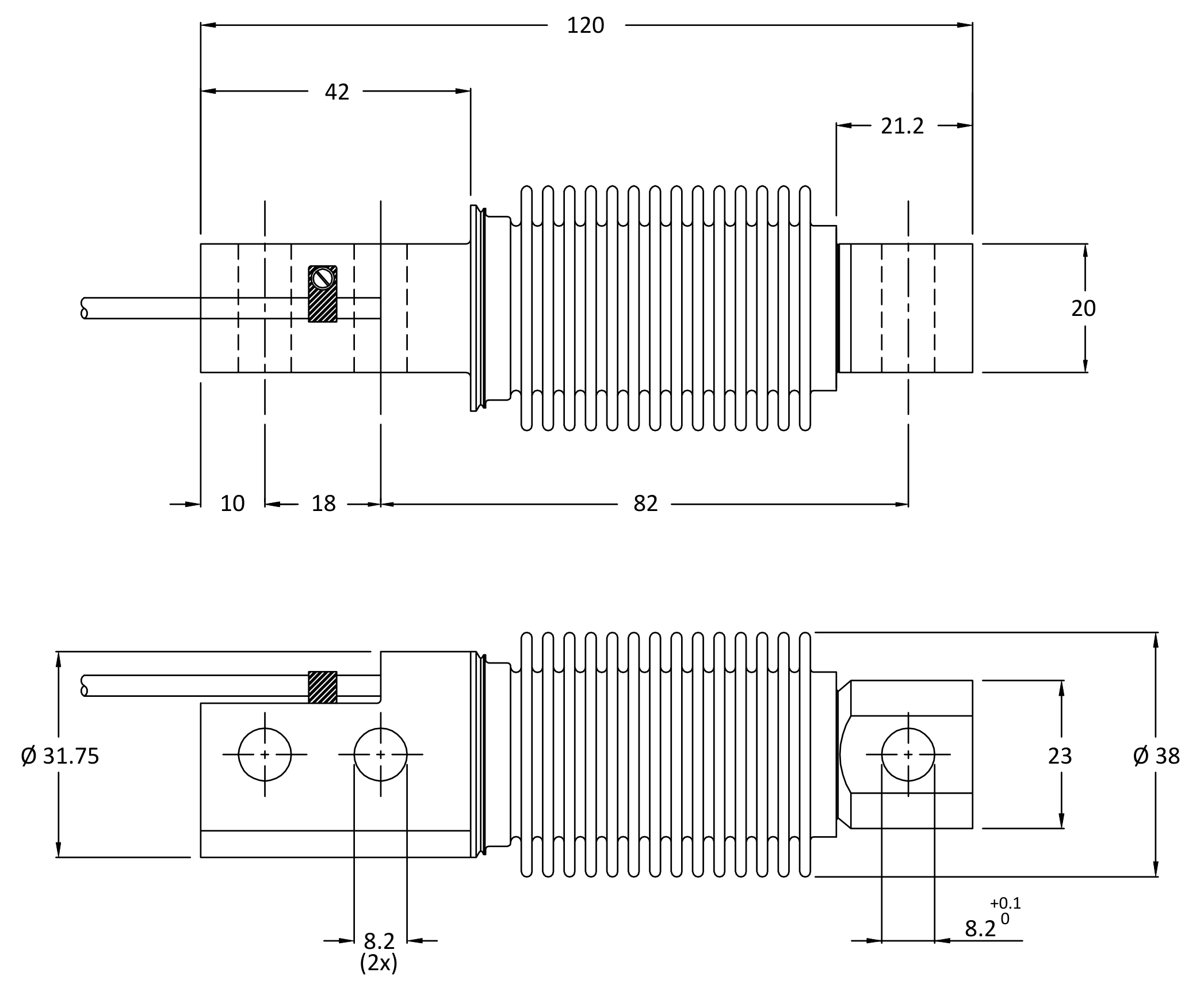

Revere SHBXR-50kg Shear Beam Load Cell
- Description
- Additional Information
- 01 / 06Shear beam and bending beam load cells
Shear beam and bending beam load cells for confirmed-fit replacement and scale builds.
The Revere SHBXR-50kg Shear Beam Load Cell is a shear beam or bending beam load cell rated 50kg. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 10296.
50kgRated capacityStainless steel 1.4542 (fully welded)MaterialIP66 and IP68ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Shear and bending beam cells are common choices for floor scales, livestock platforms, tanks, hoppers, and low-to-mid capacity industrial scales.
01Platforms and floor scales
A practical load-cell family for fabricated platforms and summing-box systems.
platform02Tanks and hoppers
Works well when mounts control side load and vessel movement.
vessel03Livestock and agriculture
Often used in platform and chute builds when capacity and environmental rating fit.
ag scale03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 50kg against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP66 and IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel 1.4542 (fully welded) Protection IP66 and IP68 Signal Analog Manufacturer Vishay-Revere Capacity weight 50 kg Accuracy C3, C4, NTEP IIIL, Non- Approved Approval OIML R60 C3/C4 · NTEP Class IIIL Rated output 2 mV/V Rated output tolerance 0.02 ±%mV/V Recommended excitation 5 to 12 V Maximum excitation 15 V Input impedance 460 ± 50 Ω Output impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.0200 %FSO (C3) Non-repeatability ≤ ±0.0100 %FSO Creep error ≤ ±0.0245 % / 30 min (C3) Safe overload 150 %Emax Ultimate overload 300 %Emax Output sensitivity 2.0 mV/V Zero balance ± 1.0 %FSO Compensated temperature −10 to +40 °C Storage temperature −40 to +90 °C Safe side load 100 %Emax 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere SHBXR-50kg Shear Beam Load Cell 10296 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10296 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.0200 %FSO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0245 % / 30 min (C3) Input impedance 460 ± 50 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Excitation voltage 5 to 12 VDC or VAC RMS Maximum excitation 15 V Maximum safe overload 150 %Emax Non-repeatability ≤ ±0.0100 %FSO Output impedance 350 ± 3.5 Ω Rated output 2 mV/V Rated output tolerance 0.02 ±%mV/V Recommended excitation 5 to 12 V Safe sideload 100 %Emax Storage temp range −40 to +90 °C Ultimate central overload 300 %Emax Zero balance ± 1.0 %FSO Manufacturer Vishay-Revere Accuracy C3, C4, NTEP IIIL, Non- Approved Approval OIML R60 C3
