Revere SHBxR Stainless Steel, Single-Ended Beam Load Cell 20 kg

SKU

10294

$430.00

Capacities: 20 kg
Fully-welded, stainless-steel construction
Hermetically sealed, IP66 and IP68
Certified to OIML R-60, 4000d and NTEP class IIIL, 10000 divisions
Current calibration output (SC version) ensures an easy and accurate parallel connection of multiple load cells

Qty

OR

Description
Additional Information

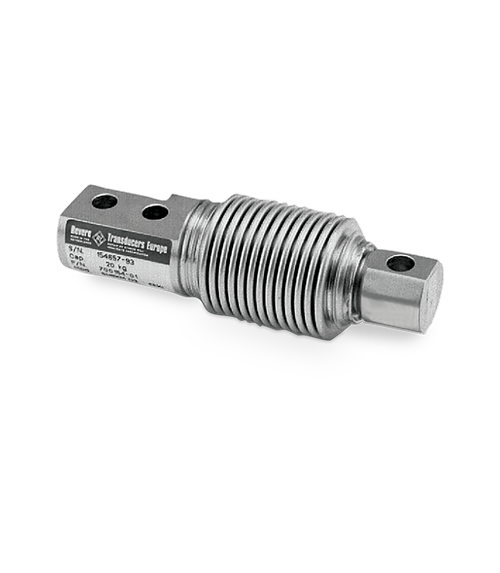

Revere SHBxR Stainless Steel, Single-Ended Beam Load Cell
Model SHBxR is a fully-welded sealed stainless-steel bending beam type load cell. The product is suitable for low-capacity platform scales, packaging machines, hybrid scales and process weighing.
Fully welded construction and water block cable-entry ensure that this product can be used successfully in demanding environments found in the food, chemical and allied industries.
The product meets the stringent Weights and Measures requirements throughout Europe.
Options
ATEX and FM-certified versions for use in potentially explosive atmospheres

Download SHBxR Datasheet

Protection class	IP66, IP68 as configured:
Input impedance	460±50 Ω as configured:
Internal Battery	-- as configured:
Excitation voltage	5 to 12 VDC or VAC RMS as configured:
Maximum excitation	15 VDC or VAC RMS as configured:
Maximum safe overload	300 % of R.C. as configured:
Non-repeatability	C3: 0.0100 ±%FSO \| C4: 0.0090 ±%FSO \| NTEP IIIL: 0.01 ±%FSO \| Non- Approved: 0.02 ±%FSO as configured:
Output impedance	350±3.5 Ω as configured:
Rated output	2 mV/V as configured:
Rated output tolerance	0.02 ±%mV/V as configured:
Zero balance	1 ±%FSO as configured:
Manufacturer	Vishay-Revere as configured:
Accuracy	C3, C4, NTEP IIIL, Non- Approved as configured:
