HBM SP4MC3MR-7kg 1-SP4MC3MR-7KG Single Point Load Cell
- Description
- Additional Information
- 01 / 06Single point load cells
Single point load cells for confirmed-fit replacement and scale builds.
The HBM SP4MC3MR-7kg 1-SP4MC3MR-7KG Single Point Load Cell is a single point load cell rated 7kg. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as HBM and the model / part number as 1-SP4MC3MR-7kg.
7kgRated capacityAluminiumMaterialIP67ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Single point cells are selected around platform size, off-center loading behavior, capacity, material, and approval requirements.
01Bench and retail platforms
Best fit for compact scales where one cell supports the full platform.
platform02Counting and pricing scales
A common choice for small weighing stations that need repeatability under off-center loading.
bench scale03Replacement work
Confirm maximum platform size and mounting pattern before replacing another brand.
retrofit03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 7kg against dead load, live load, impact, and load distribution.

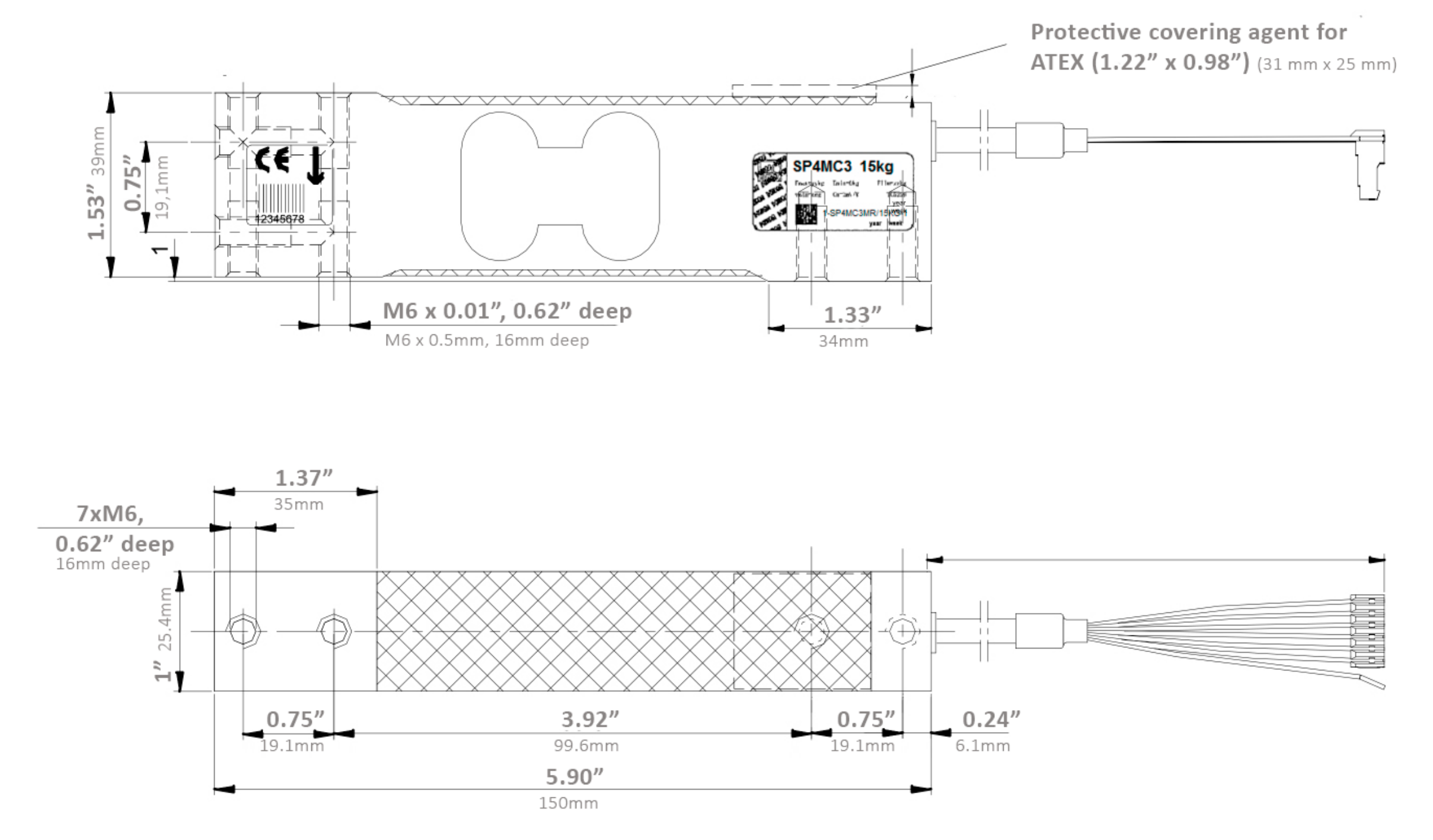

MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Aluminium Protection IP67 Signal Analog Cable length - Cable type PVC Manufacturer HBM Manufacturer part number 1-SP4MC3MR-7kg Capacity weight 7 kg Approval OIML R60 C3 (Multi Range) Recommended excitation 1 … 12 VDC (ref 5 V) Maximum excitation 15 V Input impedance 300 … 500 Ω Output impedance 300 … 500 Ω Insulation resistance > 2 GΩ @ 100 VDC Safe overload 150 % Emax Operating temperature −10 to +50 °C Compensated temperature −10 to +40 °C Storage temperature −25 to +70 °C Non-linearity ± 0.0166 % Cn 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code HBM SP4MC3MR-7kg 1-SP4MC3MR-7KG Single Point Load Cell 10424 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10424 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Aluminum Compensated temp range −10 to +40 °C Input impedance 300 … 500 Ω Insulation resistance > 2 GΩ @ 100 VDC Internal Battery -- Maximum excitation 15 V Maximum safe overload 150 % Emax Max platform size - Operating temp range −10 to +50 °C Output impedance 300 … 500 Ω Recommended excitation 1 … 12 VDC (ref 5 V) Recommended torque - Sensitivity Maximum capacity 1 kg =1.8+15%;-10% (Option 6: A1 = 1.8 mV/V + - 0.1%); Maximum capacity 3kg...200kg= 2.0 + - 10% (Option 6: A= 2mV/V + - 0.1%) Storage temp range −25 to +70 °C Manufacturer HBM Cable type PVC Cable length - Manufacturer's Part Number 1-SP4MC3MR-7kg Approval OIML R60 C3
