Systec 50REL328-E Relay module, 8I/O-RS485-HS-24VDC

SKU
20799
$754.00
  • 8 optoisolated 24 V DC inputs
  • 8 galvanically isolated relay outputs (24 V DC / 2 A and 250 V AC / 2 A)
  • Up to 8 modules per RS485 bus (64 inputs + 64 outputs)
  • ~3 ms signal transmission, up to 1,000 m cable
  • DIN-rail snap-on mounting, IP20
  • ETL listed (UL 61010-1/-2-201, CSA C22.2), FCC Part 15
OR
  • Description
  • Additional Information

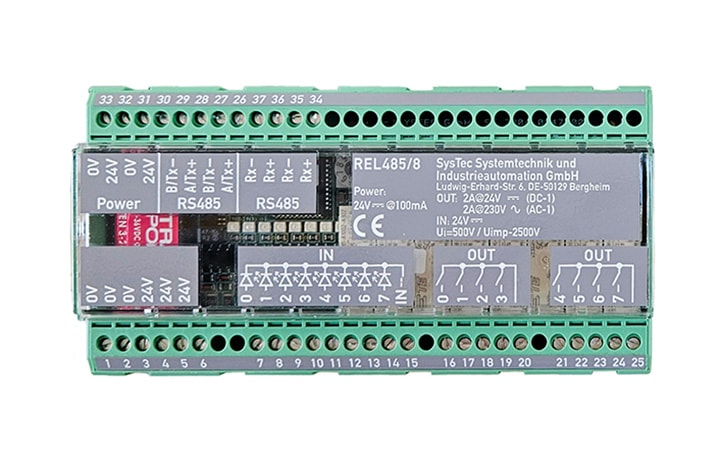

  • 01 / 04SysTec REL485 relay module

    DIN-rail RS485 digital I/O expansion for SysTec IT-series terminals.

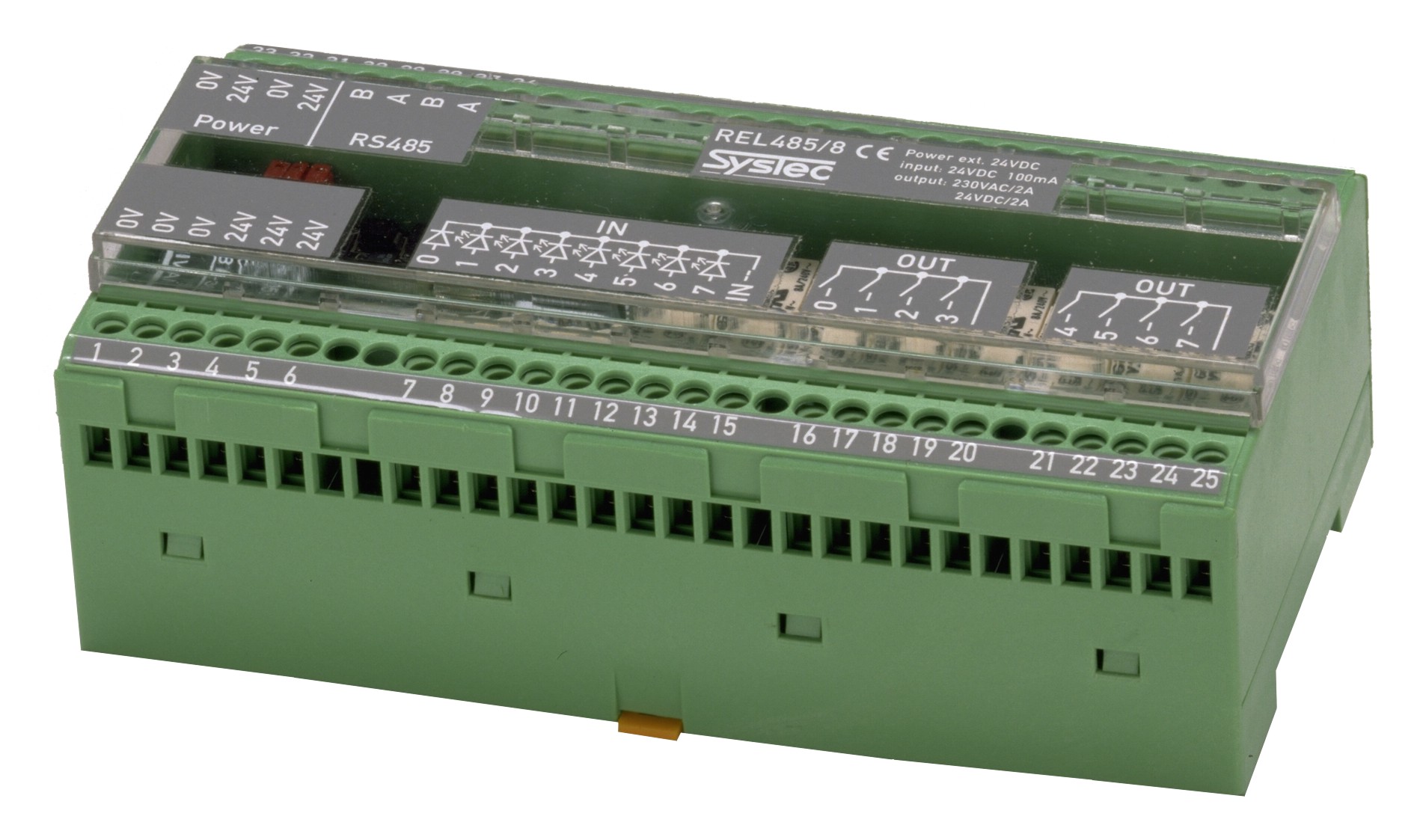

    The SysTec REL485 (ordering code 50REL328-E) is a DIN-rail RS485 digital input/output expansion module for SysTec IT-series weighing terminals. It switches solenoid valves, pilot lamps, and motor control centers, and reads push buttons, switches, and sensors through optoisolated inputs.SysTec REL485 RS485 relay output module

    02 / 04Key features

    8 inputs, 8 relay outputs, expandable I/O bus.

    Each REL485 adds eight optoisolated inputs and eight relay outputs to a SysTec IT-series terminal over RS485, and up to eight modules share one bus.

    • 8 optoisolated 24 V DC inputs
    • 8 galvanically isolated relay outputs (24 V DC / 2 A and 250 V AC / 2 A, normally open)
    • Up to 8 modules per RS485 bus (64 inputs + 64 outputs), addressed via rotary switch
    • ~3 ms signal transmission, up to 1,000 m cable
    • Per-channel input/output LEDs plus a status LED
    • DIN-rail snap-on mounting, IP20
    • ETL listed (UL 61010-1/-2-201, CSA C22.2), FCC Part 15
    03 / 04Compatibility

    Works with the SysTec IT-series terminal lineup.

    01

    IT1, IT3, IT2000M, IT3000M, IT4000E, IT6000E, IT8000E, IT9000E

    RS485 4-wire via SIM module.

    02

    Legacy IT6000, IT8000, IT9000

    RS485 2-wire.

    03

    TS3000

    Separating module.

    04 / 04Technical specifications

    Key attributes for quoting and integration.

    Brand / modelSysTec REL485 (ordering code 50REL328-E)
    SKU20799
    Housing150 × 75 × 52 mm plastic, ~0.3 kg
    Operating temperature-10 °C to +40 °C
    Humidity95% RH, non-condensing
    Inputs8 optoisolated 24 V DC; low 0-2 V DC / high 19.5-30 V DC; common IN-
    Outputs8 relay, normally open, 4 per common OUT+
    Insulation1500 V AC double insulation per EN 61010-1
    Max switching frequency10 Hz
    Power supply24 V DC / 100 mA (external certified SELV supply required)
    CommunicationRS485 2-wire and 4-wire variants, 19200 baud DeviceBus protocol
