IT2000M Fill ControlSystec IT2000M FILL Control for Automatic Liquid Filling

- Description
- Additional Information
- 01 / 06SysTec · liquid filling controller
Liquid filling controller for drums, kegs, canisters, and IBCs.
The IT2000M FILL is a precise, W&M-approved controller for gravimetric liquid filling. Handles single containers or multi-container lines, in semi-automatic or fully-automatic operation, with above-surface or below-surface filling modes. Suited for chemicals, food liquids, pharmaceutical actives, and industrial fluids where accurate per-container fills are required by the buyer, the regulator, or both.

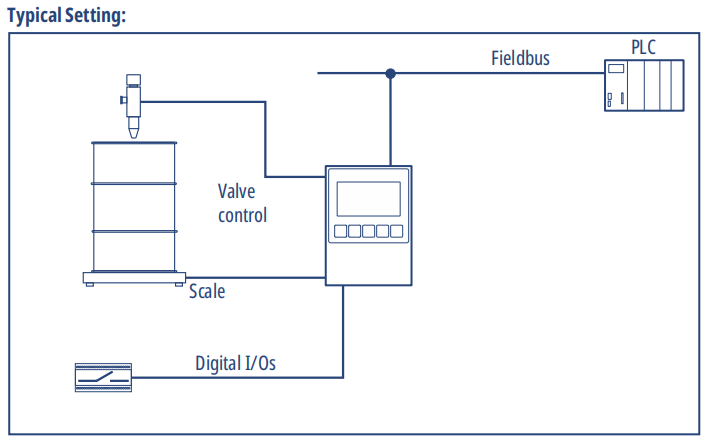

The controller drives filling lances, valves, and container movement directly through its digital I/O. Auto-tare resets the scale before each container, two-speed fill (fast + dribble) hits the target weight without over-fill, and trend-sensing preact adjustment compensates for flow-rate drift as the supply tank empties or temperature changes.
AGFIW&M approved for gravimetric filling2modesAbove-surface + below-surface filling800/secMax filtered weight readings per second02 / 06The drum filling cycleRepeatable, in-spec, hands-off liquid filling.
A typical drum filling cycle on the IT2000M FILL:
- 01Select product, enter target weight and container count.
- 02System reaches ready status; filling starts manually (button press) or via external signal from the line controller.
- 03Auto-tare function resets the scale to zero before filling each container (compensates for drum-to-drum tare weight variance).
- 04Lower the fill lance into the drum (below-surface mode) or position over (above-surface mode).
- 05Fill at fast then dribble speed, while monitoring fill time and material flow continuously.
- 06Raise the fill lance once dribble feed stops.
- 07Check weight tolerance; if out of spec, trigger automatic preact adjustment for the next container.
- 08End of cycle; ready for the next container (advance conveyor, signal palletizer, or wait for operator).
Above- vs. below-surface filling: Above-surface mode is the standard configuration — the fill lance pours from above. Below-surface mode dips the lance into the drum and raises as the fill progresses; useful for foamy liquids, volatile chemicals where vapor capture matters, or viscous products that would splash.03 / 06Where it fitsFrom single-drum to fully-automated multi-container lines.
CHEMICALSolvent, resin, lubricant drumming
Below-surface fill mode for volatile or foamy products. Drives explosion-rated valve actuators through digital outputs. AGFI W&M certification suits commercial sale-by-weight applications.
FOODEdible oils, syrups, sauces
Drum and IBC filling for industrial food liquids. Sanitary scale + IT2000M FILL means repeatable per-container weights with archived per-batch records.
PHARMALiquid active ingredient transfer
Gravimetric filling into transport containers with sealed data archive supporting GMP traceability. Operator-prompt sequences capture lot numbers per fill.
INDUSTRIALWater-based products, paints, inks
Bulk fill into 55-gallon drums, IBCs, or smaller kegs. Two-speed fill with preact adjustment keeps fills in spec across viscosity ranges.
04 / 06About the IT2000M platformOne hardware module, three application firmwares.
The IT2000M is SysTec's W&M-approved weighing and filling controller in a compact stainless-steel DIN-rail housing. Same module across the BAG, BATCH, and FILL variants — the firmware loaded onto it determines whether it acts as a bag filling controller, multi-ingredient batchweighing controller, or liquid filling controller.
Every variant delivers the same baseline: 10,000 d W&M approval, 524,000 d internal resolution, 50–800 weight readings per second, 8 × 350 Ω load cell support, and Ethernet / Modbus TCP + USB as standard. PROFINET, PROFIBUS DP, EtherNet/IP, serial, and additional analog I/O all available via plug-in expansion modules.
- +W&M approved (10,000 d)
- +524,000 d internal resolution
- +50–800 wt readings/sec
- +8 × 350 Ω load cells
- +Ethernet/Modbus TCP + USB std
- +Stainless DIN rail housing
05 / 06Technical dataIT2000M FILL full specifications.
Manufacturer SysTec Systemtechnik und Industrieautomation GmbH Application Liquid filling controller for drums, kegs, canisters, and IBCs Housing Stainless steel, DIN rail mount Dimensions 92 × 120 × 106 mm (W × H × D) Protection class IP20 (control cabinet installation) Display LCD with 15 mm weight digits, 20-character clear-text operator prompts Keypad Tactile membrane, 5 keys W&M approval class AGFI (Automatic Gravimetric Filling Instrument) W&M approved resolution 10,000 e Internal resolution 524,000 d Weight update rate Selectable 50 to 800 filtered weight values / sec Load cell input 1 analog scale, up to 8 × 350 Ω strain-gauge load cells (overall impedance 43–3,300 Ω) Standard interfaces Ethernet / Modbus TCP, USB Plug-in modules (optional) PROFINET, PROFIBUS DP, EtherNet/IP, serial (RS232 / RS485 / 20 mA), analog input, analog output, pulse counting input, up to 14 × 24 VDC digital I/O Digital I/O (typical config) 8 inputs (24 V, 7 mA, optoisolated) + 8 outputs (24 V, 500 mA, optoisolated, short-circuit proof) Compatibility SIEMENS S7, PCS7, and other major PLC / SCADA platforms via Ethernet or fieldbus Power-fail behavior Power-fail-safe storage of data 06 / 06FAQCommon questions about the IT2000M FILL.
When should I use above- vs. below-surface filling?
Above-surface fill is the default — lance positioned over the drum, simple plumbing. Switch to below-surface when (a) the liquid foams aggressively, (b) volatile vapors must be contained, or (c) the product is viscous enough that splash from above-surface fill is unacceptable. The IT2000M FILL handles both modes; the choice is plumbing and lance hardware on the line.
Can it run a fully unattended multi-container line?
Yes. With container conveyor control on the digital I/O, the controller advances the next container onto the scale automatically after each fill cycle completes. Stop conditions (low product, out-of-tolerance fill, scale overload, e-stop) all trigger automatic shutdown with operator alarm.
Does it work with explosion-proof installations?
The IT2000M FILL itself is a control-cabinet device (IP20) and is not directly explosion-rated. For ATEX / IECEx zoned areas, the standard pattern is to mount the IT2000M FILL in a safe-area cabinet and drive the in-zone valve actuators through intrinsically-safe or explosion-rated interface modules. SysTec offers application notes for ATEX zone 1 and zone 2 installations — ask sales for guidance.
What integrates with PLC / SCADA?
Standard Ethernet / Modbus TCP and USB interfaces work out of the box with most PC-based SCADA. For native fieldbus to SIEMENS S7, PCS7, or other industrial PLCs, add the PROFINET, PROFIBUS DP, or EtherNet/IP plug-in module to the IT2000M FILL.
How precise are the fills?
Per-fill tolerance is set in the recipe and enforced through the two-speed fast/dribble cycle. The 524,000 d internal resolution and 50-to-800 weight-reading-per-second sample rate let the dribble cut-off hit the target very tightly — typical fills land within a fraction of a percent of target on a properly calibrated scale.
What's the difference between IT2000M FILL and the larger IT6000E / IT8000E filling controllers?
The IT2000M FILL is the compact DIN-rail variant — built for single-station fill cells or simple multi-container lines, mounted in a control cabinet. The IT6000E (wall/desk panel) and IT8000E (panel-mount full HMI) handle larger operator-interface needs, more complex multi-line coordination, and applications where a standalone field-mounted terminal is preferred over a cabinet-mounted module.
Talk to a SysTec specialist.
Scoping a drum, keg, or IBC filling line? Need help choosing between IT2000M FILL and the larger IT6000E / IT8000E controllers? Our team handles filling-system specifications directly.
Email SalesCall +1 (954) 666-0877 × 305 Protection class IP20 Internal Battery -- Max. number of load cells up to 8 strain gauge load cells (350 Ohm) in 4- or 6-wire mode. Operating temp range –10 °C (+14 °F) to +40 °C (+104 °F) at max. 95 % relative humidity, non condensing. Manufacturer Systec Power Consumption 17 VA Manufacturer's Part Number IT2000M-FILL Working voltage 12-30 VDC Short name IT2000M Fill Control Hero chips IP20; Up to 8 load cells; Systec
