WeightechUSA T Mount Weigh Module Assembly Kit

SKU
t-mount-assembly-kit
$395.00
  • t-mount-assembly-kit - WeightechUSA T Mount Weigh Module Assembly Kit
  • Type: Double-ended beam weigh modules
  • Module material: Painted mild steel mount; alloy steel load cells
  • Capacity: 5,000-150,000 lb
  • Cable length: 30 ft Braided Cable, 4 wires, 6 mm
  • Junction box: 1 Stainless Steel Junction Box 4 Channels
  • Kit includes:
  • 3 or 4 Double-Ended Beam Load Cell between 5,000 - 150,000 lb Alloy Steel
  • 1 Stainless Steel Junction Box 4 Channels
  • 30 ft Braided Cable, 4 wires, 6 mm
  • 1 Mount between 5,000 - 150,000 lb Max Cap, Painted mild Steel
  • 3 or 4 Double-Ended Mount between 5,000 - 150,000 lb Max Cap, Painted mild Steel
  • Single module option: no junction box, no cable, no load cell

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 06Double-ended beam weigh modules

    Double-ended beam weigh modules for confirmed-fit vessel and scale builds.

    The WeightechUSA T Mount Weigh Module Assembly Kit is a double-ended beam weigh-module kit. Use it for new scale builds or retrofit work after confirming load-cell capacity, module count, mounting geometry, cable length, junction box requirements, and the forces the structure must restrain.

    5,000-150,000 lb
    Capacity
    Painted mild steel mount; alloy steel load cells
    Module material
    30 ft Braided Cable, 4 wires, 6 mm
    Cable length
    1 Stainless Steel Junction Box 4 Channels
    Junction box
    02 / 06Application fit

    Where this weigh module belongs.

    Select the module by force path, vessel movement, required hardware, environment, and what the kit actually includes.

    01

    High-capacity vessels

    Double-ended modules are selected for large tanks, weighbridges, and vessel scales.

    high capacity
    02

    Lateral restraint

    Stay rods, lift-off protection, and mount geometry must be matched to the structure.

    restraint
    03

    Load-cell access

    Confirm whether the order is a mount only or a complete kit with load cells, cable, and junction box.

    kit
    03 / 06Kit scope

    Confirm what is included before quoting or installing.

    • 3 or 4 Double-Ended Beam Load Cell between 5,000 - 150,000 lb Alloy Steel
    • 1 Stainless Steel Junction Box 4 Channels
    • 30 ft Braided Cable, 4 wires, 6 mm
    • 1 Mount between 5,000 - 150,000 lb Max Cap, Painted mild Steel
    • 3 or 4 Double-Ended Mount between 5,000 - 150,000 lb Max Cap, Painted mild Steel
    • Single module option: no junction box, no cable, no load cell
    04 / 06Installation notes

    A weigh module is only accurate when the structure around it is correct.

    Before ordering, verify the load path, restraint direction, expansion or movement allowance, lift-off protection, grounding, cable routing, and indicator input.

    STRUCTURE

    Mechanical restraint

    Check side load, lift-off, thermal expansion, and vessel movement before final selection.

    WIRING

    Electrical interface

    Confirm load-cell signal, junction box trim, cable length, shielding, and indicator compatibility.

    SERVICE

    Service access

    Leave clearance for load-cell replacement, leveling, grounding strap inspection, and cable service.

    05 / 06Product media

    Reference images and interactive product views.

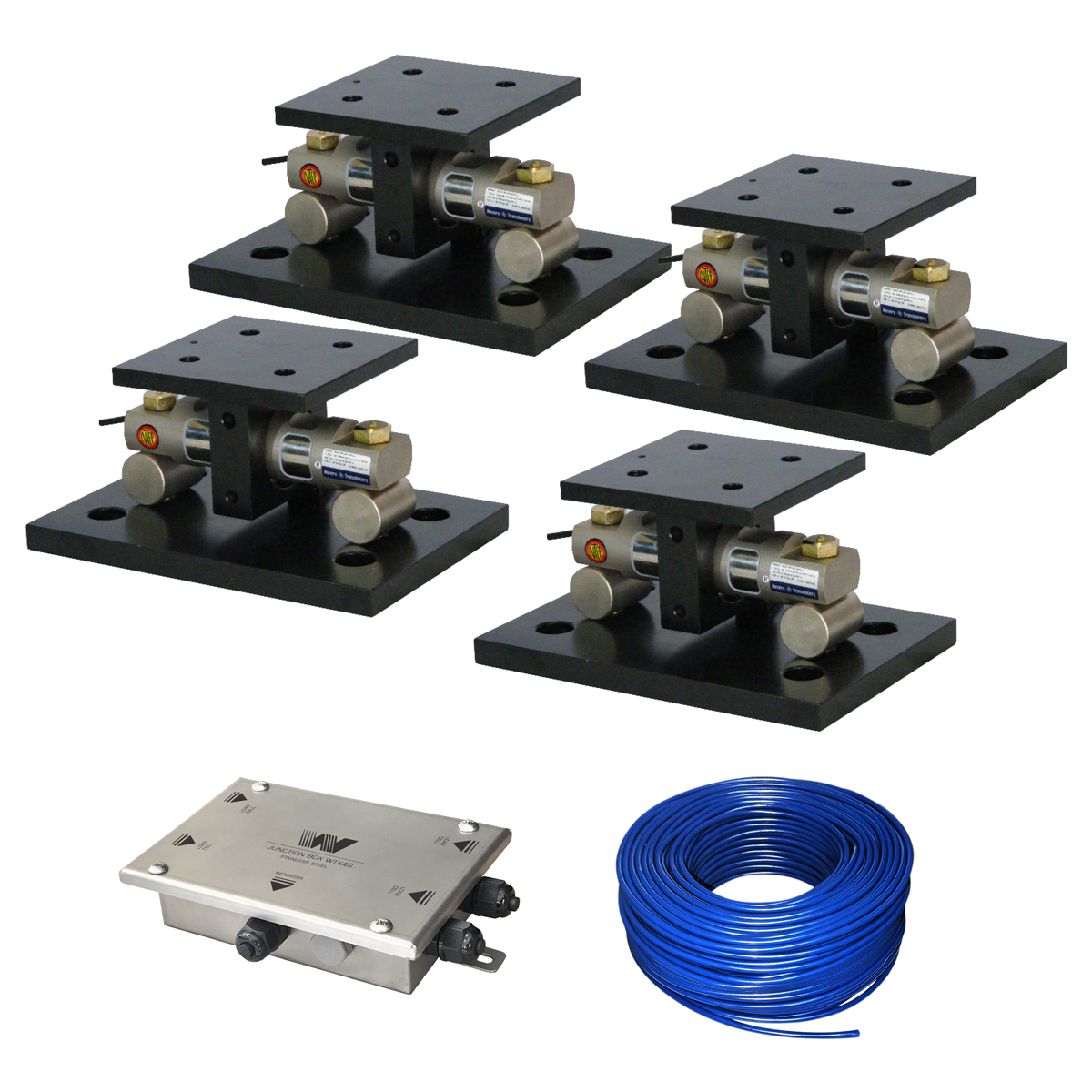

    WeightechUSA T Mount Weigh Module Assembly Kit product or technical reference image
    06 / 06Technical data

    Catalog attributes for this weigh module.

    Module materialPainted mild steel mount; alloy steel load cells
    Cable length30 ft Braided Cable, 4 wires, 6 mm
    Junction box1 Stainless Steel Junction Box 4 Channels
    ManufacturerWeightechUSA
    ProductOrder code
    WeightechUSA T Mount Weigh Module Assembly Kitt-mount-assembly-kit

    Is this always a complete weighing kit?

    No. Some options are module-only or hardware-only. Confirm the selected option before ordering.

    What should be checked before replacement?

    Match capacity, load-cell model, module geometry, cable length, junction box, thread, and the vessel or platform load path.

    Can WeightechUSA help confirm fit?

    Yes. Send photos, dimensions, old part numbers, capacity, cable details, and the application.

    Talk to a WeightechUSA weigh-module specialist.

    Send the vessel or platform details, current load-cell labels, mounting dimensions, cable length, and target capacity. We will confirm whether t-mount-assembly-kit is the right fit.
