Vishay-Tedea · Load cell

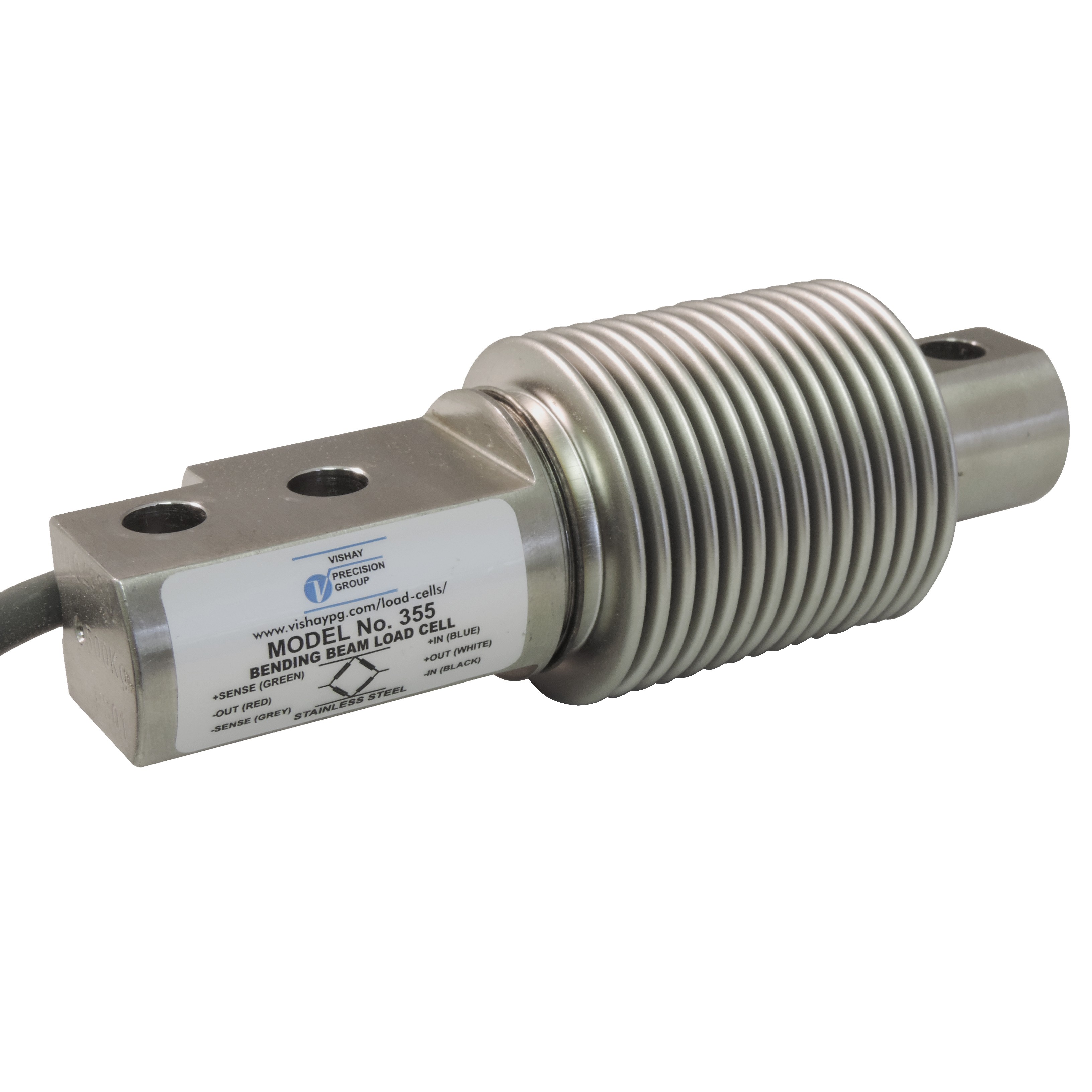

Tedea-Huntleigh 355 Shear Beam Load Cell
SKU Vishay-355
20–250 kg; IP68; Stainless Steel; Analog signal; NTEP
420.00
- Description
- Additional Information
- 01 / 02Shear Beam Load Cell
Tedea-Huntleigh 355 shear beam load cell family.
The Tedea-Huntleigh 355 is a shear beam load cell family. This page describes the family; use the table below to select the SKU your application requires.
5 kg – 250 kgKg-line capacity rangeStainless steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Stainless steel Protection IP68 Signal Analog Cable length 3 m Cable type 6-wire, braided, polyurethane, dual floating screen Rated output tolerance 0.002 ± mV/V Zero balance 0.04 ± mV/V Compensated temperature range -10 to +40 °C Safe temperature range -20 to +70 °C Maximum safe central overload 150 % of R.C. Ultimate central overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 380 ± 10 Ω Output impedance 355 ± 5 Ω Insulation resistance > 2000 MΩ Rated output 2.00 mV/V CAPACITY TABLEAvailable capacities.

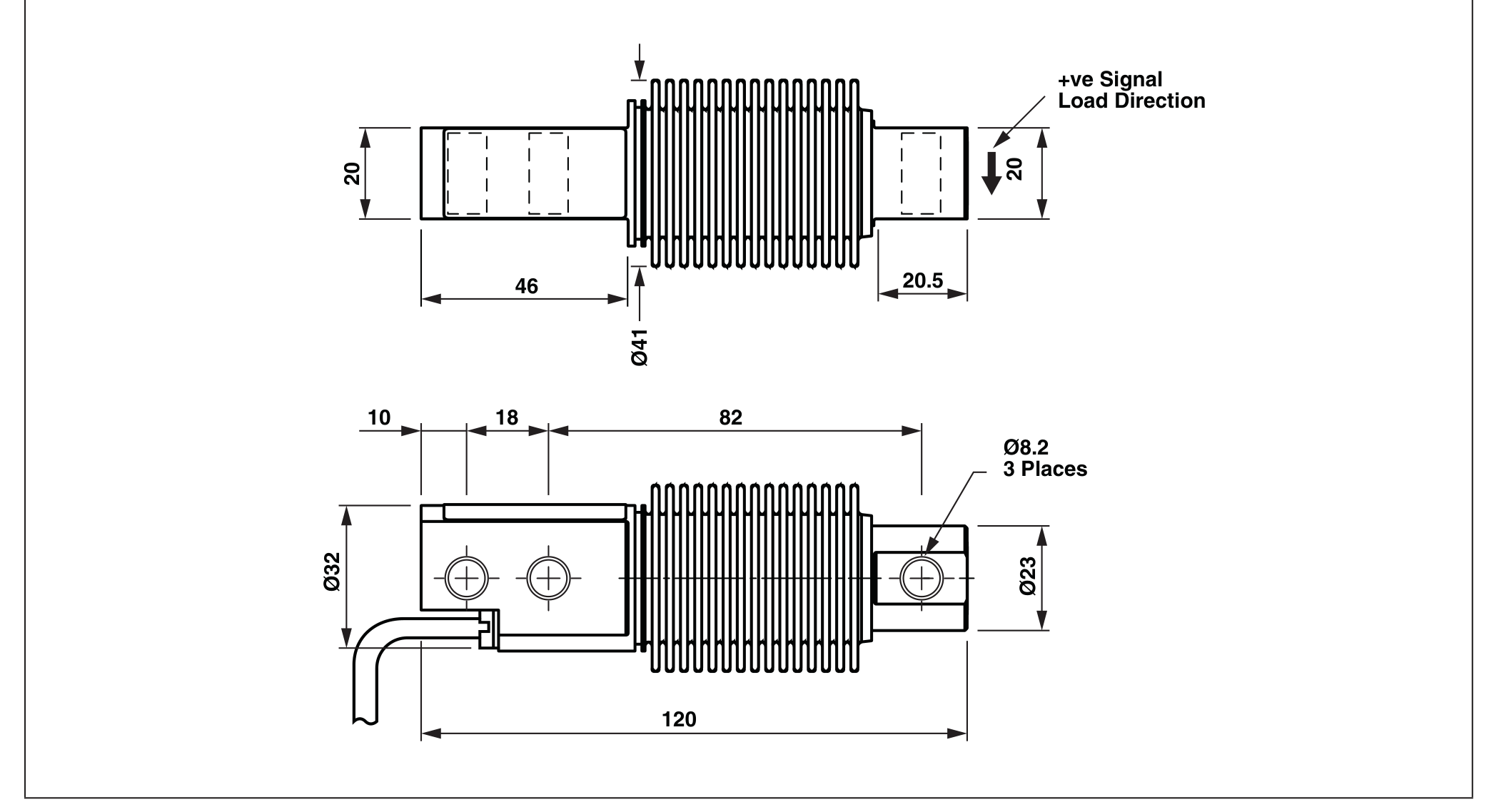

Capacity Manufacturer part number SKU Approval Price 5 kg 00355-005K-C3-00X 10061 OIML R60 C3 $261.00 20 kg 00355-020K-C3-00X 10063 OIML R60 C3 $252.00 30 kg 00355-030K-C3-00X 10064 ATEX, FM, NTEP, OIML $530.00 50 kg 00355-050K-C3-72X 10066 ATEX, FM, NTEP, OIML $365.00 100 kg 00355-100K-C3-00X 10067 — $397.00 200 kg 00355-200K-C3-70X 10068 OIML R60 C3 $252.00 250 kg 00355-250K-C3-04X 10069 OIML R60 C3 $261.00 — — 10062 ATEX, FM, NTEP, OIML $530.00 — — 10070 — $530.00 DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which 355 SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Internal Battery -- Maximum excitation 15 VDC or VAC RMS Maximum safe overload 300% of R.C. Max platform size - Operating temp range -10°C ... +40°C Recommended excitation 10 VDC or VAC RMS Recommended torque 22 Nm Sensitivity 2.0±0.002 mV/V Storage temp range -20°C ... +70°C Manufacturer Vishay-Tedea Cable type 6 wire, braided, Polyurethane, dual floating screen Cable length 3m Interchangeable Cardinal CB6, Celtron HBB, HBM Z6, Mettler Toledo MTB, Revere SHB, Rice Lake RLHBB, Coti CG-Z6, Totalcomp TZ6, Zemic BM11 Approval NTEP Hero chips 20–250 kg; IP68; Stainless Steel; Analog signal; NTEP
