220-30t 00220-030T-C3-00X Compression Load CellTedea-Huntleigh 220-30t 00220-030T-C3-00X Compression Load Cell
- Description
- Additional Information
- 01 / 06Compression, canister, rocker column, and ring torsion load cells
Compression, canister, rocker column, and ring torsion load cells for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 220-30t 00220-030T-C3-00X Compression Load Cell is a compression, canister, rocker column, or ring torsion load cell rated 30 t. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Tedea-Huntleigh and the model / part number as 00220-030T-C3-00X.
30 tRated capacityStainless steelMaterialIP68ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Compression cells cover canister, rocker-column, ring-torsion, and disk-style weighing for tanks, silos, truck scales, and high-capacity systems.
01Truck and tank scales
Compression geometry is common in high-capacity vehicle and vessel weighing.
compression02Outdoor and washdown service
Material and seal rating matter because compression cells often live under structures.
environment03Mount-dependent accuracy
Cup, mount, lift-off, and side-load details must be confirmed with the cell.
mount03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 30 t against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel Protection IP68 Signal Analog Cable length 65.6 ft / 20 m Manufacturer Tedea-Huntleigh Manufacturer part number 00220-030T-C3-00X Rated capacity 30 t Capacity weight 30 t Sealing Welded Seal Approval OIML R60 C3 (C1/C4 available) · NTEP IIIL/10000 Thread Metric Thread Recommended excitation 10 VDC / VAC RMS Maximum excitation 20 VDC / VAC RMS Input impedance 1065 ± 60 Ω Output impedance 1025 ± 20 Ω Insulation resistance > 2000 MΩ Combined error ≤ ±0.020 %RO (C3) Creep error ≤ ±0.0170 % / 30 min (C3) Safe overload 150 %RC Ultimate overload 300 %RC Operating temperature −30 to +70 °C Number of wires 6 Zero balance ± 2 %RO Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 220-30t 00220-030T-C3-00X Compression Load Cell 12055 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

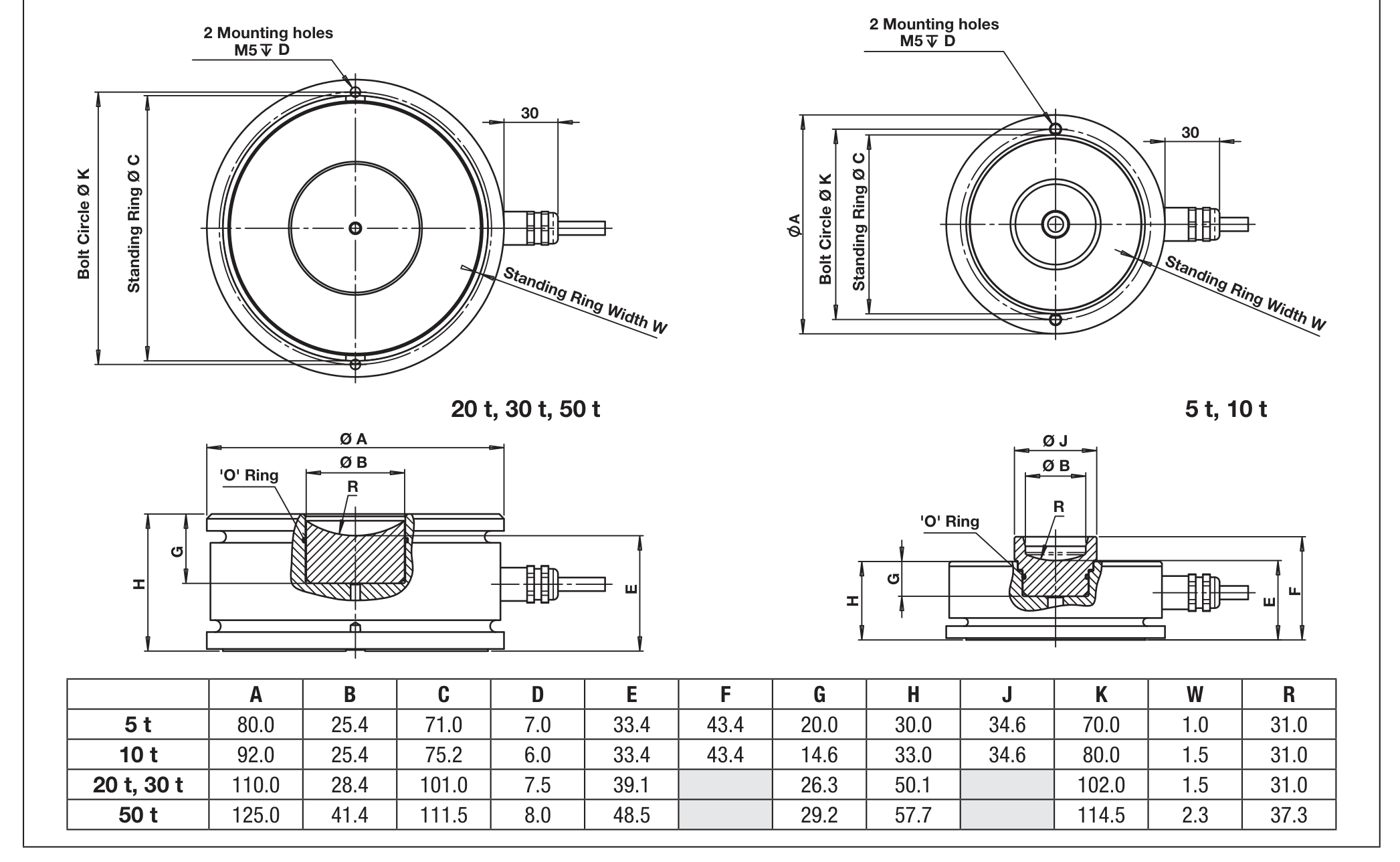

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12055 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.020 %RO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0170 % / 30 min (C3) Input impedance 1065 ± 60 Ω Insulation resistance > 2000 MΩ Internal Battery -- Maximum excitation 20 VDC / VAC RMS Maximum safe overload 150 %RC NTEP/OIML OIML Operating temp range −30 to +70 °C Output impedance 1025 ± 20 Ω Rated capacity 30 t Recommended excitation 10 VDC / VAC RMS Ultimate central overload 300 %RC Zero balance ± 2 %RO Manufacturer Tedea-Huntleigh Cable length 65.6 ft / 20 m Thread - Clevis Metric Thread Sealing Welded Seal Number of Wires 6 wires Manufacturer's Part Number 00220-030T-C3-00X Approval OIML R60 C3 Short name 220-30t 00220-030T-C3-00X Compression Load Cell Hero chips IP68; Stainless Steel; Analog signal; OIML R60 C3; 65.6 ft / 20 m cable
