1022-30kg 01022-030K-D5-03F Single Point Load CellTedea-Huntleigh 1022-30kg 01022-030K-D5-03F Single Point Load Cell
- Description
- Additional Information
- 01 / 06Single point load cells
Single point load cells for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 1022-30kg 01022-030K-D5-03F Single Point Load Cell is a single point load cell rated 30 kg. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Tedea-Huntleigh and the model / part number as 01022-030K-D5-03F.
30 kgRated capacityAluminiumMaterialIP66ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Single point cells are selected around platform size, off-center loading behavior, capacity, material, and approval requirements.
01Bench and retail platforms
Best fit for compact scales where one cell supports the full platform.
platform02Counting and pricing scales
A common choice for small weighing stations that need repeatability under off-center loading.
bench scale03Replacement work
Confirm maximum platform size and mounting pattern before replacing another brand.
retrofit03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 30 kg against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP66. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Aluminium Protection IP66 Signal Analog Cable length 1.6 ft / 0.5 m Cable type 4 or 6 wire, PVC, single floating screen Manufacturer Tedea-Huntleigh Manufacturer part number 01022-030K-D5-03F Rated capacity 30 kg Capacity weight 30 kg Sealing Potted Max platform size 350 × 350 mm Thread Metric Thread Rated output 2.0 mV/V Rated output tolerance ±0.2 mV/V Recommended excitation 10 VDC / VAC RMS Maximum excitation 15 VDC / VAC RMS Input impedance 415 ± 15 Ω Output impedance 350 ± 3 Ω Insulation resistance > 2000 MΩ Combined error ≤ ±0.0200 %RO (C3) Creep error ≤ ±0.0170 % / 30 min (C3) Safe overload 150 % R.C. Ultimate overload 300 % R.C. Operating temperature −30 to +70 °C Number of wires 4 or 6 Zero balance ± 0.1 mV/V Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 1022-30kg 01022-030K-D5-03F Single Point Load Cell 12166 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

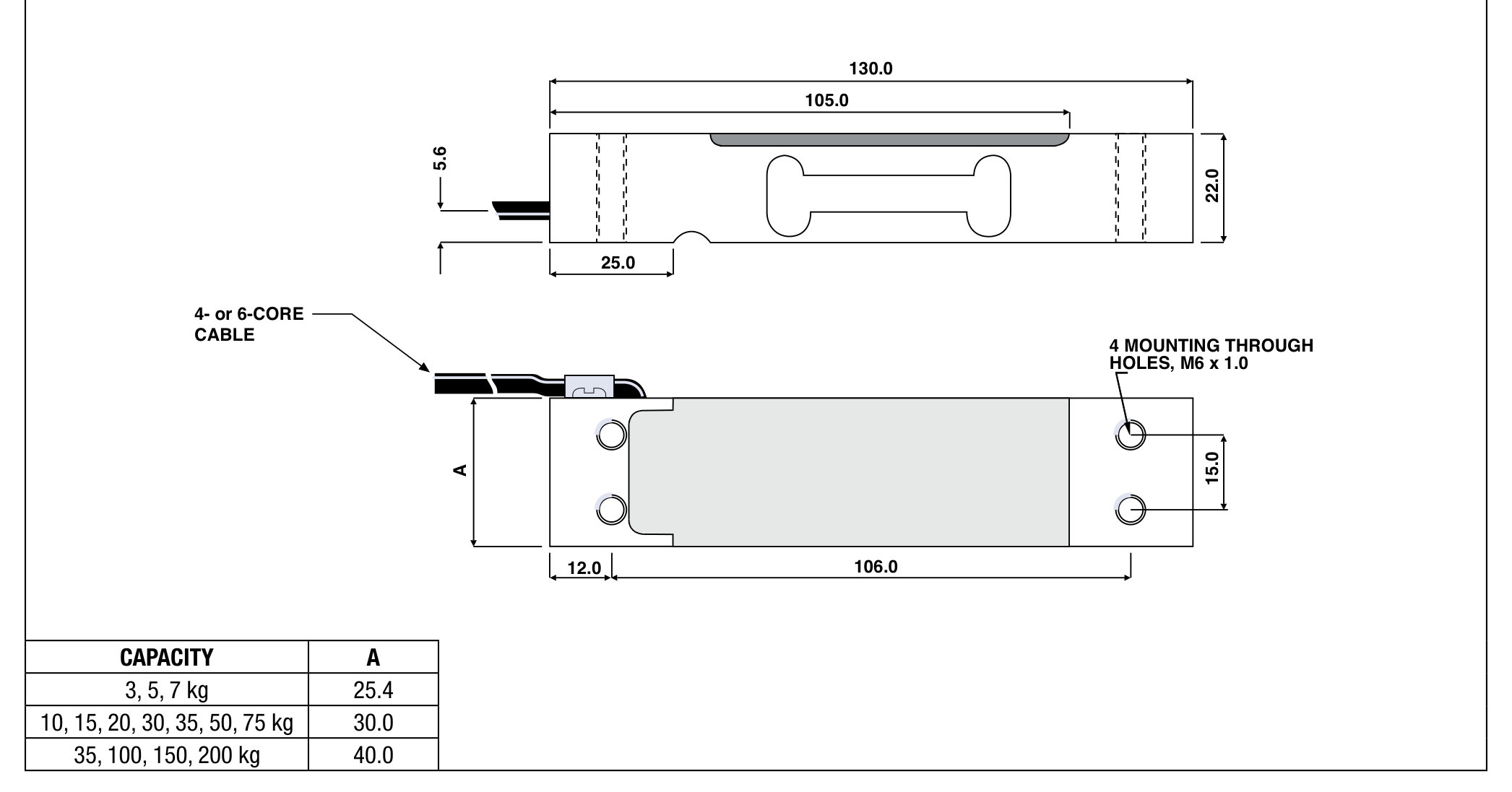

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12166 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP66 Material Aluminum Combined error ≤ ±0.0200 %RO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0170 % / 30 min (C3) Creep error 30 mins 0.01 0.05 0.0170 0.0125 Eccentric loading error 0.0057 0.0085 0.0057 0.0042 Input impedance 415 ± 15 Ω Insulation resistance > 2000 MΩ Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 % R.C. Max platform size 350 × 350 mm Operating temp range −30 to +70 °C Output impedance 350 ± 3 Ω Rated capacity 30 kg Rated output 2.0 mV/V Rated output tolerance ±0.2 mV/V Recommended excitation 10 VDC / VAC RMS Recommended torque Up to 30 kg: 7.0 Sensitivity 2.0 mV/V Temp effect on output 0.0010 0.0030 0.0010 0.00075 Temp effect on zero 0.0014 0.0100 0.0023 0.0014 Ultimate central overload 300 % R.C. Zero balance ± 0.1 mV/V Zero return 0.01 0.05 0.0170 0.0125 Manufacturer Tedea-Huntleigh Cable type 4 or 6 wire, PVC, single floating screen Cable length 1.6 ft / 0.5 m Thread - Clevis Metric Thread Sealing Potted Number of Wires 4 wires Manufacturer's Part Number 01022-030K-D5-03F Short name 1022-30kg 01022-030K-D5-03F Single Point Load Cell Hero chips IP66; Aluminum; Analog signal; 2.0 mV/V; 1.6 ft / 0.5 m cable
