1030-5kg 01030-005K-F0-52X Single Point Load CellTedea-Huntleigh 1030-5kg 01030-005K-F0-52X Single Point Load Cell
- Description
- Additional Information
- 01 / 06Single point load cells
Single point load cells for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 1030-5kg 01030-005K-F0-52X Single Point Load Cell is a single point load cell rated 5 kg. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Tedea-Huntleigh and the model / part number as 01030-005K-F0-52X.
5 kgRated capacityAnodized aluminiumMaterialIP65 (IP67 available)ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Single point cells are selected around platform size, off-center loading behavior, capacity, material, and approval requirements.
01Bench and retail platforms
Best fit for compact scales where one cell supports the full platform.
platform02Counting and pricing scales
A common choice for small weighing stations that need repeatability under off-center loading.
bench scale03Replacement work
Confirm maximum platform size and mounting pattern before replacing another brand.
retrofit03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 5 kg against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP65 (IP67 available). Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Anodized aluminium Protection IP65 (IP67 available) Signal Analog Cable length 3.3 ft / 1 m Manufacturer Tedea-Huntleigh Manufacturer part number 01030-005K-F0-52X Rated capacity 5 kg Capacity weight 5 kg Sealing Covered and Potted Approval OIML R60 C2.5 Max platform size 350 × 350 mm Recommended excitation 10 VDC / VAC RMS Maximum excitation 15 VDC / VAC RMS Input impedance 415 ± 15 Ω Output impedance 350 ± 3 Ω Insulation resistance > 5000 MΩ Combined error ≤ ±0.020 %RO (C2.5) Creep error ≤ ±0.0170 % / 30 min (C2.5) Safe overload 150 %RC Ultimate overload 300 %RC Operating temperature −30 to +70 °C Number of wires 4 Zero balance ± 0.2 mV/V Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 1030-5kg 01030-005K-F0-52X Single Point Load Cell 12171 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

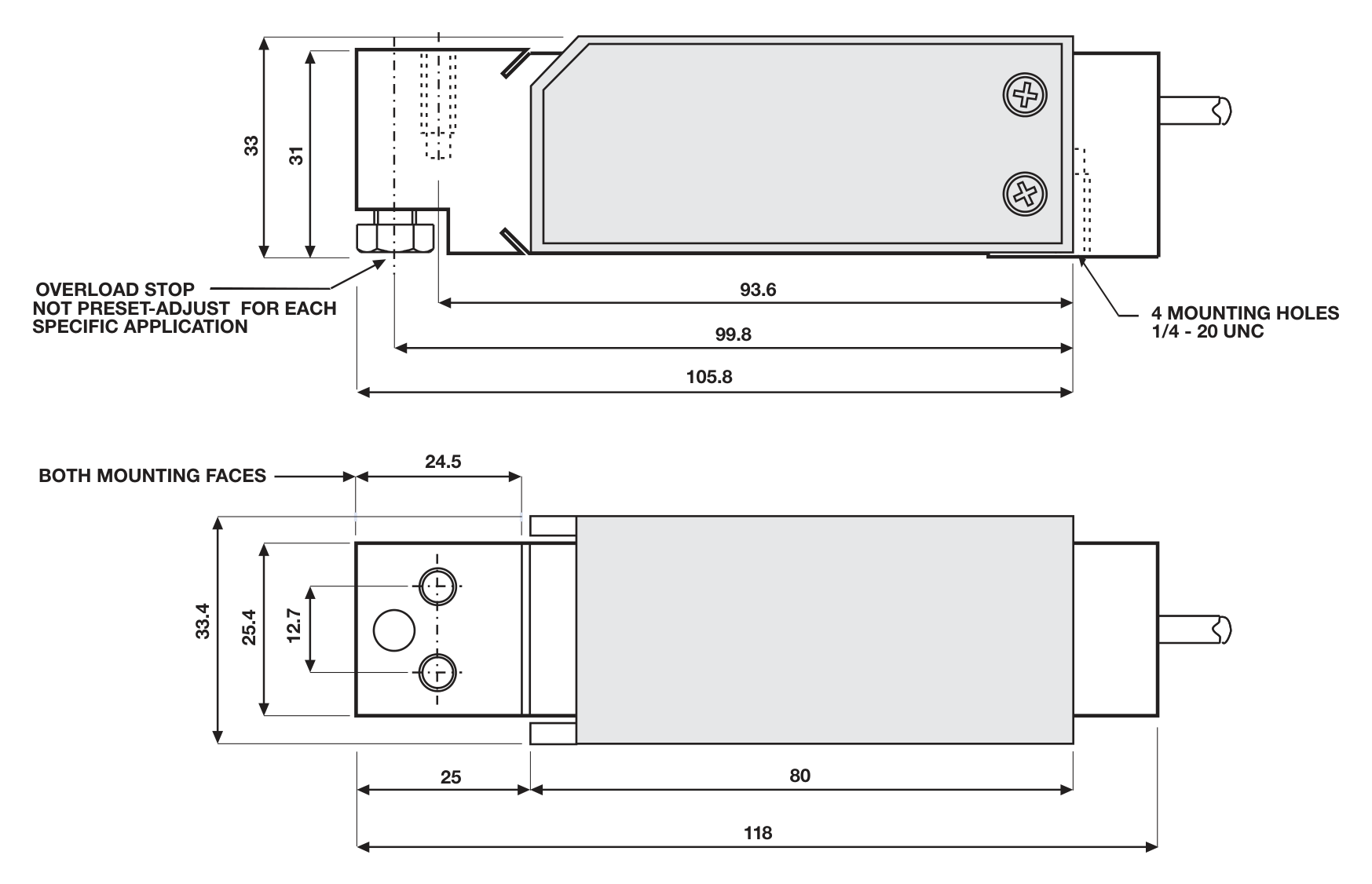

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12171 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP65 Material Aluminum Combined error ≤ ±0.020 %RO (C2.5) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0170 % / 30 min (C2.5) Input impedance 415 ± 15 Ω Insulation resistance > 5000 MΩ Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %RC Max platform size 350 × 350 mm Operating temp range −30 to +70 °C Output impedance 350 ± 3 Ω Rated capacity 5 kg Recommended excitation 10 VDC / VAC RMS Ultimate central overload 300 %RC Zero balance ± 0.2 mV/V Manufacturer Tedea-Huntleigh Cable length 3.3 ft / 1 m Sealing Covered and Potted Number of Wires 4 wires Manufacturer's Part Number 01030-005K-F0-52X Approval OIML Short name 1030-5kg 01030-005K-F0-52X Single Point Load Cell Hero chips IP65; Aluminum; Analog signal; OIML; 3.3 ft / 1 m cable
