Tedea-Huntleigh 3510-1Klb 03510-001E-C3-00X Shear Beam Load Cell
- Description
- Additional Information
- 01 / 06Shear beam and bending beam load cells
Shear beam and bending beam load cells for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 3510-1Klb 03510-001E-C3-00X Shear Beam Load Cell is a shear beam or bending beam load cell rated 1K lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Tedea-Huntleigh and the model / part number as 03510-001E-C3-00X.
1K lbRated capacityStainless steel (hermetically sealed)MaterialIP68 / IP69KProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Shear and bending beam cells are common choices for floor scales, livestock platforms, tanks, hoppers, and low-to-mid capacity industrial scales.
01Platforms and floor scales
A practical load-cell family for fabricated platforms and summing-box systems.
platform02Tanks and hoppers
Works well when mounts control side load and vessel movement.
vessel03Livestock and agriculture
Often used in platform and chute builds when capacity and environmental rating fit.
ag scale03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 1K lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68 / IP69K. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel (hermetically sealed) Protection IP68 / IP69K Signal Analog Cable length 16.4 ft / 5 m Manufacturer Tedea-Huntleigh Manufacturer part number 03510-001E-C3-00X Rated capacity 1K lb Capacity 1000 lb Capacity in pounds 1,000 lb Sealing Welded Seal Approval OIML R60 C3 · NTEP Class III (5000 multiple) Thread Through Hole Recommended excitation 10 VDC / VAC RMS Maximum excitation 15 VDC / VAC RMS Input impedance 380 ± 10 Ω Output impedance 355 ± 5 Ω Insulation resistance > 2000 MΩ Combined error ≤ ±0.0200 %RO (C3) Creep error ≤ ±0.0170 % / 30 min (C3) Safe overload 150 %RC Ultimate overload 300 %RC Operating temperature −30 to +80 °C Number of wires 6 Zero balance ± 2 %RO Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 3510-1Klb 03510-001E-C3-00X Shear Beam Load Cell 10083 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

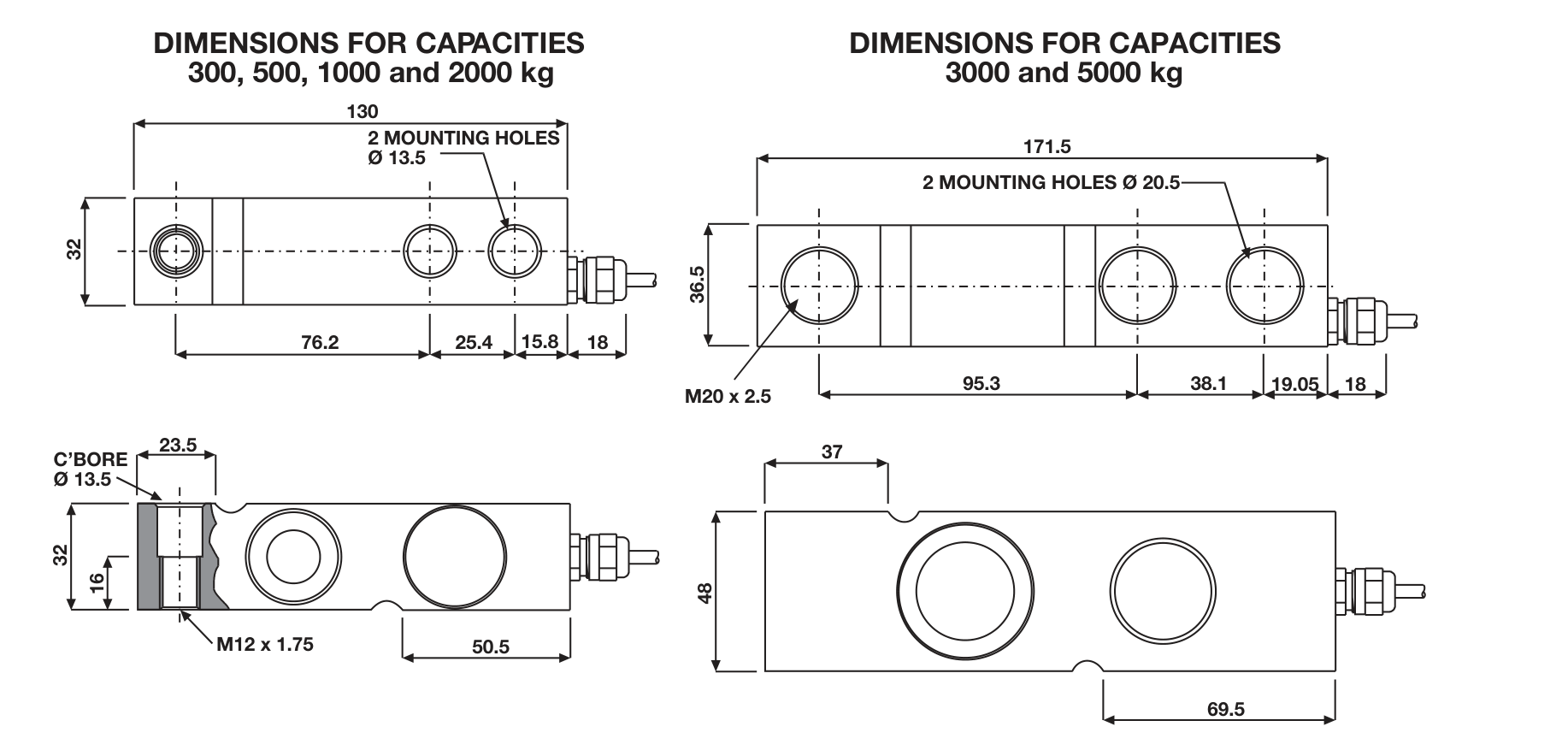

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10083 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP69K Material Stainless Steel Combined error ≤ ±0.0200 %RO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0170 % / 30 min (C3) Input impedance 380 ± 10 Ω Insulation resistance > 2000 MΩ Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %RC NTEP/OIML OIML Operating temp range −30 to +80 °C Output impedance 355 ± 5 Ω Rated capacity 1K lb Recommended excitation 10 VDC / VAC RMS Ultimate central overload 300 %RC Zero balance ± 2 %RO Manufacturer Tedea-Huntleigh Capacity 1000 lb Cable length 16.4 ft / 5 m Thread - Clevis Through Hole Sealing Welded Seal Number of Wires 6 wires Manufacturer's Part Number 03510-001E-C3-00X Approval OIML Hero chips 1,000 lb; IP69K; Stainless Steel; Analog signal; OIML
