Tedea-Huntleigh 1263 200kg 200 kg Single Point Load Cell
SKU 10774
IP66; Aluminum; OIML
275.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 1263 200kg is a 200 kg capacity variation of the Tedea-Huntleigh 1263 single-point load cell family, manufactured in aluminum with IP66 ingress protection.
200 kgRated capacityAluminumMaterialIP66Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Tedea-Huntleigh Manufacturer part number 1263 200kg Capacity 200 kg Rated output 2.0 mV/V Material Aluminum Protection IP66 Signal Analog Cable length 1.5 m Cable type 4-wire, PVC, single floating screen Rated output tolerance 0.2 ± mV/V Zero balance 0.2 ± mV/V Compensated temperature range -10 to +40 °C Safe temperature range -20 to +70 °C Maximum safe central overload 150 % of R.C. Ultimate central overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 415 ± 15 Ω Output impedance 350 ± 3 Ω Insulation resistance > 2000 MΩ Platform size (max) 600 x 600 mm 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 1263 200kg 200 kg Single Point Load Cell 10774 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

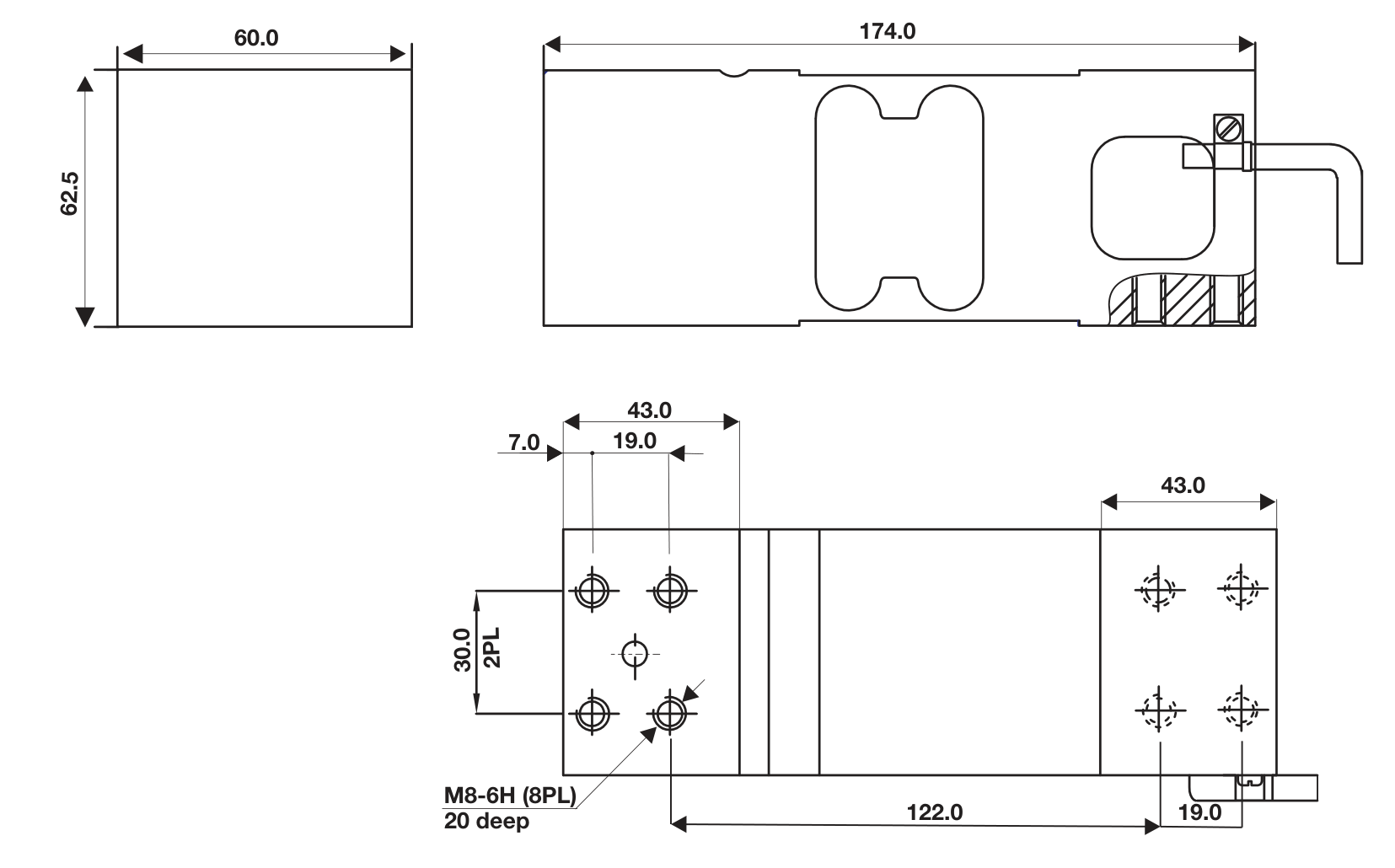

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Protection class IP66 Material Aluminum Internal Battery -- Rated capacity 200 kg Rated output 2.0 mV/V Interchangeable Zemic L6G Manufacturer's Part Number 1263 200kg Approval OIML Hero chips IP66; Aluminum; OIML
