Vishay-Tedea · Load cell
Tedea-Huntleigh 1260 Single Point Load Cell
SKU Vishay-1260
50–500 kg; IP66; Aluminum; Analog signal; NTEP
650.00
- Description
- Additional Information
- 01 / 02Single Point Load Cell
Tedea-Huntleigh 1260 single point load cell family.
The Tedea-Huntleigh 1260 is a single-point load cell family. This page describes the family; use the table below to select the SKU your application requires.
50 kg – 635 kgKg-line capacity rangePlated (anodized) aluminumMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Plated (anodized) aluminum Protection IP66 Signal Analog Cable length 3 m Cable type 6-wire, braided, polyurethane, dual floating screen Rated output tolerance 0.2 ± mV/V Zero balance 0.2 ± mV/V Compensated temperature range -10 to +40 °C Safe temperature range -20 to +70 °C Maximum safe central overload 150 % of R.C. Ultimate central overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 415 ± 15 Ω Output impedance 350 ± 3 Ω Insulation resistance > 2000 MΩ Platform size (max) 600 x 600 mm Rated output 2.0 mV/V CAPACITY TABLEAvailable capacities.

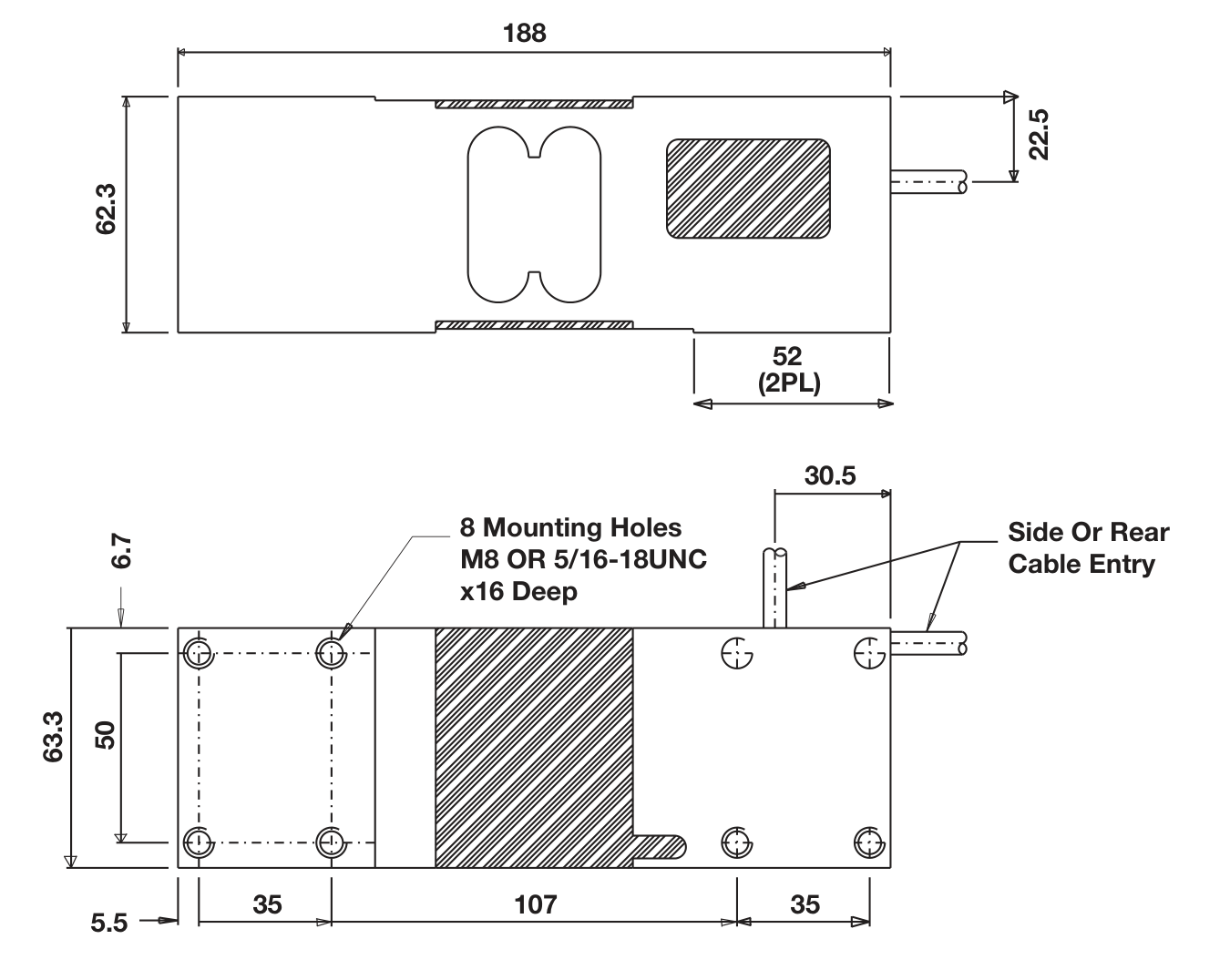

Capacity Manufacturer part number SKU Approval Price 50 kg 01260-050K-C3-00X 10241 OIML R60 C3 $291.00 75 kg 01260-075K-D5-01X 10242 OIML R60 C3 $291.00 100 kg 01260-100K-D5-01X 10243 OIML R60 C3 $291.00 150 kg 01260-150K-D5-01X 10244 ATEX, FM, NTEP, OIML $650.00 250 kg 01260-250K-D5-01X 10245 — $650.00 300 kg 01260-300K-D5-01X 10246 — $650.00 500 kg 01260-500K-D5-01X 10247 OIML R60 C3 $291.00 635 kg 01260-635K-D5-01X 10248 OIML R60 C3 $291.00 DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which 1260 SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP66 Material Aluminum Internal Battery -- Maximum excitation 15 VDC or VAC RMS Maximum safe overload - Max platform size - Operating temp range -20 to +70 C Recommended excitation 10 VDC or VAC RMS Recommended torque 16 Nm Sensitivity 2.0 mV/V Storage temp range - Manufacturer Vishay-Tedea Cable type Polyurethane jacket Cable length 10 ft/3 m Interchangeable HBM PW16, Rice Lake RL1260, Rice Lake RLPWM16, Coti CG-50-1, Tedea 1260S, Toledo MT1260 Approval NTEP Hero chips 50–500 kg; IP66; Aluminum; Analog signal; NTEP
