STR-500lb S-Type Load CellCeltron STR-500lb 00STR-500L-D5-00F S-Type Tension/Compression Load Cell
- Description
- Additional Information
- 01 / 06S-type tension/compression load cells
S-type tension/compression load cells for confirmed-fit replacement and scale builds.

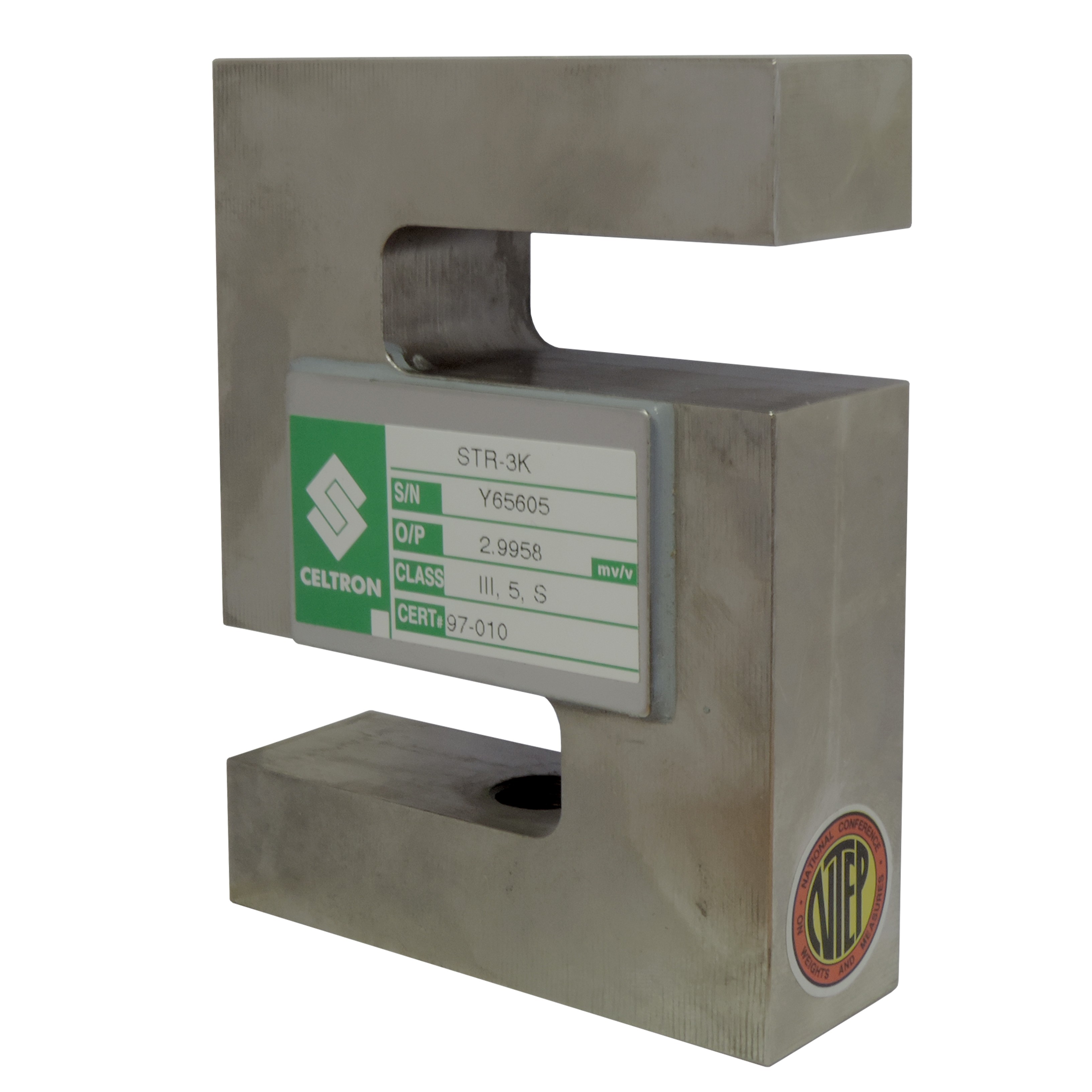

The Celtron STR-500lb 00STR-500L-D5-00F S-Type Tension/Compression Load Cell is an S-type tension/compression load cell rated 500 lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Celtron and the model / part number as 00STR-500L-D5-00F.
500 lbRated capacityAlloy SteelMaterialIP67ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
S-type cells are used for suspended, tension, and inline force applications where the force path must stay centered.
01Hanging scales
S-type geometry fits suspended weighing with clevises, rod ends, or tension hardware.
tension02Force measurement
Useful where the system measures pull, compression, or bidirectional force.
force03Retrofit work
Match thread, capacity, material, and wiring before swapping an existing S-beam.
replacement03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 500 lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Alloy Steel Protection IP67 Signal Analog Cable length 19.7 ft / 6 m Manufacturer Vishay-Celtron Manufacturer part number 00STR-500L-D5-00F Rated capacity 500 lb Capacity 500 lb Capacity in pounds 500 lb Sealing Covered and Potted Thread Unified National 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Celtron STR-500lb 00STR-500L-D5-00F S-Type Tension/Compression Load Cell 10658 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

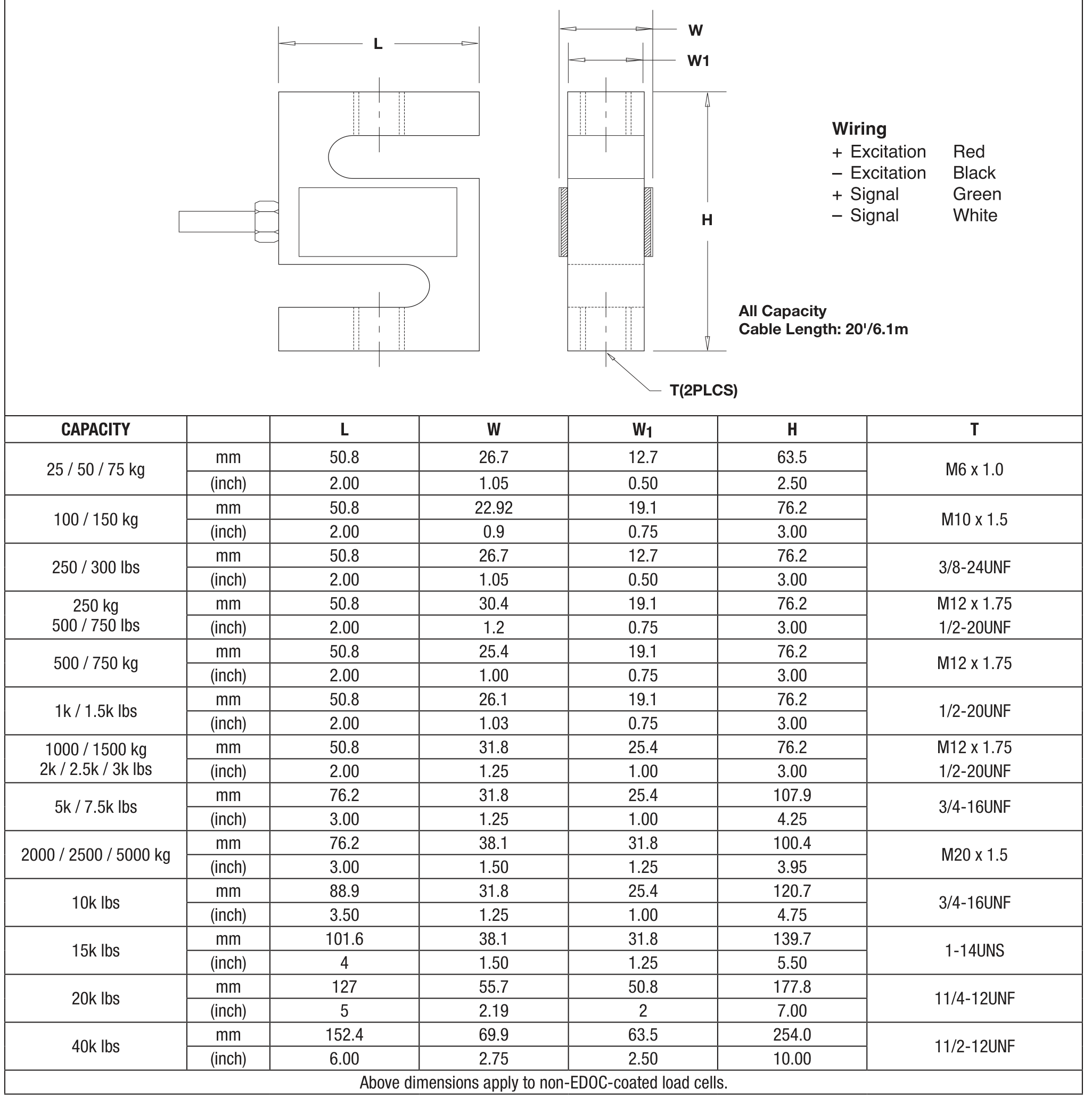

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10658 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Alloy Steel Internal Battery -- Rated capacity 500 lb Manufacturer Vishay-Celtron Capacity 500 lb Cable length 19.7 ft / 6 m Thread - Clevis Unified National Sealing Covered and Potted Manufacturer's Part Number 00STR-500L-D5-00F Short name STR-500lb S-Type Load Cell Hero chips 500 lb; IP67; Alloy Steel; Analog signal; 19.7 ft / 6 m cable
