363-2.5Klb S-Type Load CellRevere 363-2.5Klb 00363-02E5-B1-00F S-Type Tension/Compression Load Cell
- Description
- Additional Information
- 01 / 06S-type tension/compression load cells
S-type tension/compression load cells for confirmed-fit replacement and scale builds.
The Revere 363-2.5Klb 00363-02E5-B1-00F S-Type Tension/Compression Load Cell is an S-type tension/compression load cell rated 2.5K lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 00363-02E5-B1-00F.
2.5K lbRated capacityNickel-plated alloy steelMaterialIP65ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
S-type cells are used for suspended, tension, and inline force applications where the force path must stay centered.
01Hanging scales
S-type geometry fits suspended weighing with clevises, rod ends, or tension hardware.
tension02Force measurement
Useful where the system measures pull, compression, or bidirectional force.
force03Retrofit work
Match thread, capacity, material, and wiring before swapping an existing S-beam.
replacement03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 2.5K lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP65. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Nickel-plated alloy steel Protection IP65 Signal Analog Cable length 20.5 ft / 6.25 m Manufacturer Vishay-Revere Manufacturer part number 00363-02E5-B1-00F Rated capacity 2.5K lb Capacity 2500 lb Capacity in pounds 2,500 lb Sealing Covered and Potted Approval NTEP Class IIIL Thread Unified National Rated output 3.3 ± 0.3 mV/V (3.0 mV/V trimmed) Recommended excitation 10 VDC / VAC RMS Maximum excitation 15 VDC / VAC RMS Input impedance 390 ± 15 Ω Output impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.0200 %FSO (NTEP IIIL) Non-repeatability ≤ ±0.0100 %FSO Safe overload 150 %Emax Ultimate overload 300 %Emax Operating temperature −40 to +80 °C Output sensitivity 3.3 ± 0.3 mV/V (3.0 mV/V trimmed) Zero balance ± 1.0 %FSO Compensated temperature −10 to +40 °C Storage temperature −40 to +90 °C Safe side load 100 %Emax 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere 363-2.5Klb 00363-02E5-B1-00F S-Type Tension/Compression Load Cell 10753 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

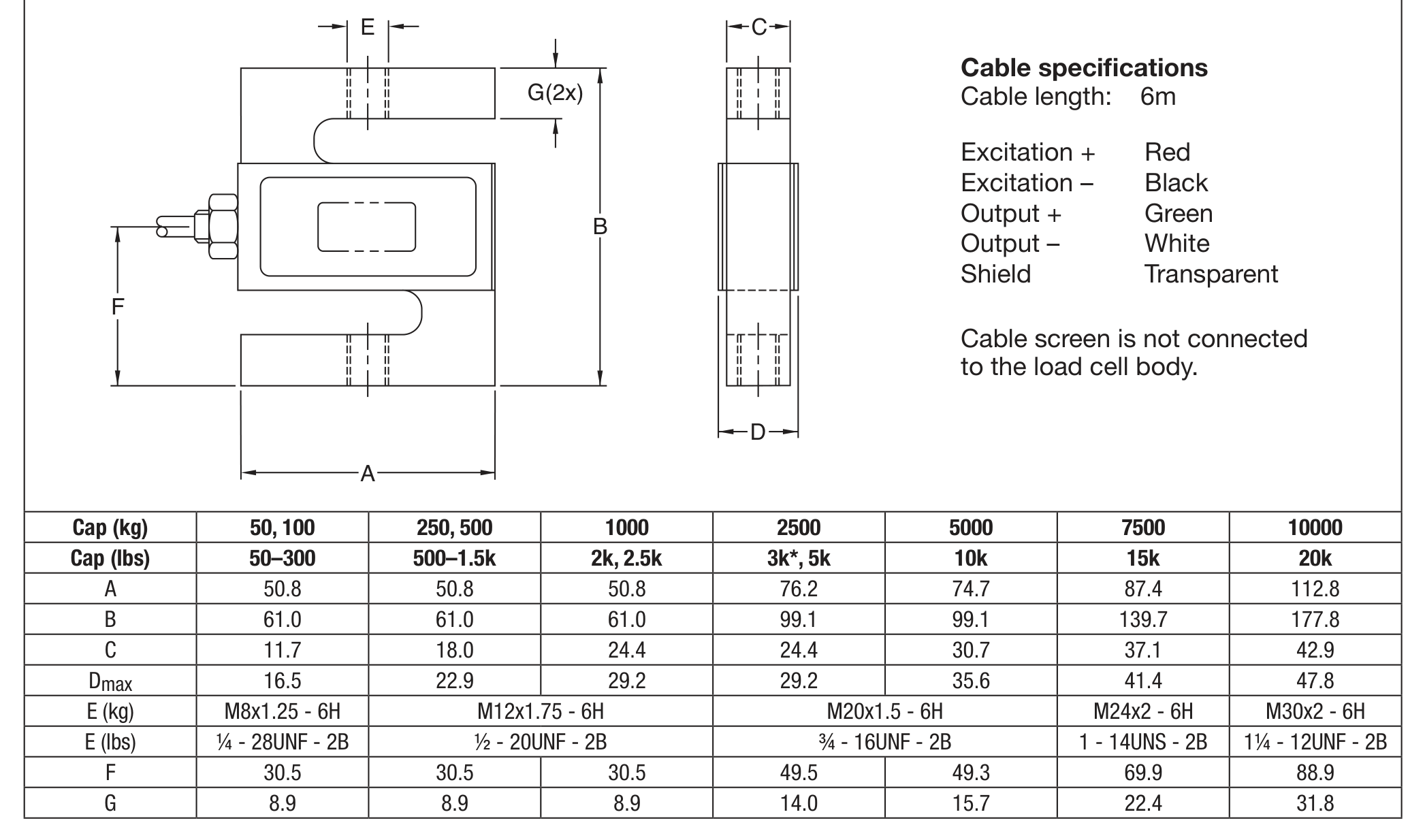

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10753 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP65 Material Nickel-Plated Alloy Steel Combined error ≤ ±0.0200 %FSO (NTEP IIIL) Compensated temp range −10 to +40 °C Input impedance 390 ± 15 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %Emax Non-repeatability ≤ ±0.0100 %FSO NTEP/OIML NTEP Operating temp range −40 to +80 °C Output impedance 350 ± 3.5 Ω Rated capacity 2.5K lb Rated output 3.3 ± 0.3 mV/V (3.0 mV/V trimmed) Recommended excitation 10 VDC / VAC RMS Safe sideload 100 %Emax Storage temp range −40 to +90 °C Ultimate central overload 300 %Emax Zero balance ± 1.0 %FSO Manufacturer Vishay-Revere Capacity 2500 lb Cable length 20.5 ft / 6.25 m Thread - Clevis Unified National Sealing Covered and Potted Interchangeable Zemic H3G Manufacturer's Part Number 00363-02E5-B1-00F Approval NTEP Short name 363-2.5Klb S-Type Load Cell Hero chips 2,500 lb; IP65; Nickel-Plated Alloy Steel; Analog signal; NTEP
