792-200Klb Compression Load CellRevere 792-200Klb 00792-200E-B1-01X Compression Load Cell
- Description
- Additional Information
- 01 / 06Compression, canister, rocker column, and ring torsion load cells
Compression, canister, rocker column, and ring torsion load cells for confirmed-fit replacement and scale builds.
The Revere 792-200Klb 00792-200E-B1-01X Compression Load Cell is a compression, canister, rocker column, or ring torsion load cell rated 200K lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 00792-200E-B1-01X.
200K lbRated capacityStainless steelMaterialIP68ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Compression cells cover canister, rocker-column, ring-torsion, and disk-style weighing for tanks, silos, truck scales, and high-capacity systems.
01Truck and tank scales
Compression geometry is common in high-capacity vehicle and vessel weighing.
compression02Outdoor and washdown service
Material and seal rating matter because compression cells often live under structures.
environment03Mount-dependent accuracy
Cup, mount, lift-off, and side-load details must be confirmed with the cell.
mount03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 200K lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel Protection IP68 Signal Analog Manufacturer Vishay-Revere Manufacturer part number 00792-200E-B1-01X Rated capacity 200K lb Capacity in pounds 200,000 lb Sealing Welded Seal Approval NTEP Class IIIL Thread Unified National Rated output 2 mV/V Recommended excitation 10 V Maximum excitation 15 V Input impedance 350 ± 3.5 Ω Output impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.0200 %FSO (NTEP IIIL) Non-repeatability ≤ ±0.0100 %FSO Creep error ≤ ±0.0300 % / 20 min Safe overload 150 %Emax Ultimate overload 300 %Emax Operating temperature −40 to +80 °C Output sensitivity 2 mV/V Zero balance ± 10.0 %FSO Compensated temperature −10 to +40 °C Safe side load 10 %Emax 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere 792-200Klb 00792-200E-B1-01X Compression Load Cell 12075 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

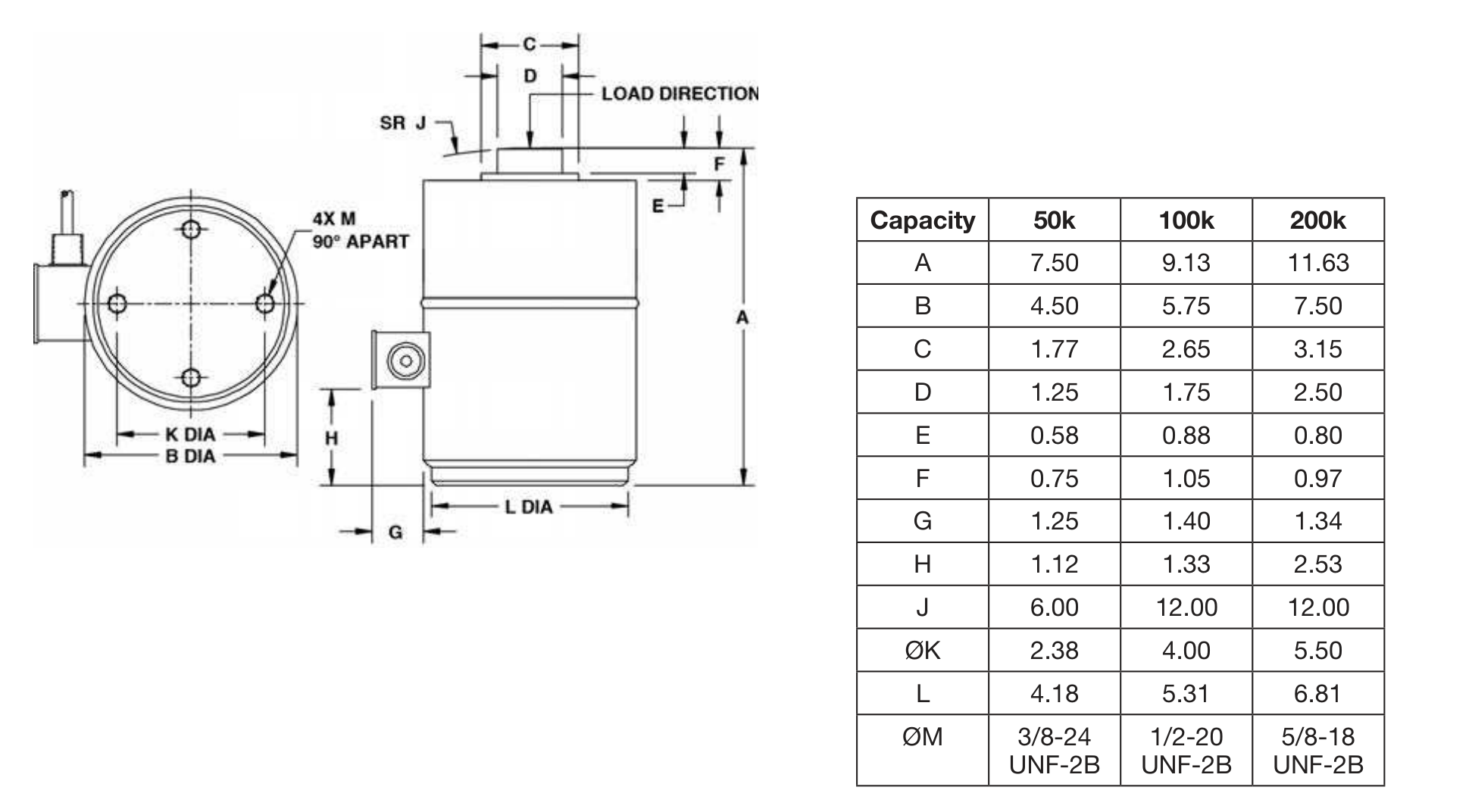

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12075 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.0200 %FSO (NTEP IIIL) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0300 % / 20 min Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 15 V Maximum safe overload 150 %Emax Non-repeatability ≤ ±0.0100 %FSO NTEP/OIML NTEP Operating temp range −40 to +80 °C Output impedance 350 ± 3.5 Ω Rated capacity 200K lb Rated output 2 mV/V Recommended excitation 10 V Safe sideload 10 %Emax Ultimate central overload 300 %Emax Zero balance ± 10.0 %FSO Manufacturer Vishay-Revere Thread - Clevis Unified National Sealing Welded Seal Manufacturer's Part Number 00792-200E-B1-01X Approval NTEP Short name 792-200Klb Compression Load Cell Hero chips IP68; Stainless Steel; Analog signal; NTEP
