ASC-50t Compression Load CellRevere ASC-50t 00ASC-050T-C3-00X Compression Load Cell
- Description
- Additional Information
- 01 / 06Compression, canister, rocker column, and ring torsion load cells
Compression, canister, rocker column, and ring torsion load cells for confirmed-fit replacement and scale builds.
The Revere ASC-50t 00ASC-050T-C3-00X Compression Load Cell is a compression, canister, rocker column, or ring torsion load cell rated 50 t. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 00ASC-050T-C3-00X.
50 tRated capacityStainless steel 1.4542MaterialIP66 / IP67 / IP69KProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Compression cells cover canister, rocker-column, ring-torsion, and disk-style weighing for tanks, silos, truck scales, and high-capacity systems.
01Truck and tank scales
Compression geometry is common in high-capacity vehicle and vessel weighing.
compression02Outdoor and washdown service
Material and seal rating matter because compression cells often live under structures.
environment03Mount-dependent accuracy
Cup, mount, lift-off, and side-load details must be confirmed with the cell.
mount03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 50 t against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP66 / IP67 / IP69K. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel 1.4542 Protection IP66 / IP67 / IP69K Signal Analog Cable length 49.2 ft / 15 m Manufacturer Vishay-Revere Manufacturer part number 00ASC-050T-C3-00X Rated capacity 50 t Capacity weight 50 t Sealing Welded Seal Approval OIML R60 C3 (to C6) · NTEP Class IIIL Rated output 2 mV/V Recommended excitation 5 to 20 V Maximum excitation 25 V Input impedance 700 ± 35 Ω Output impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.0230 %FSO (C3) Non-repeatability ≤ ±0.035 %FSO (C3) Creep error ≤ ±0.0245 % / 30 min (C3) Safe overload 150 %Emax Ultimate overload 300 %Emax Operating temperature −40 to +80 °C Output sensitivity 2 mV/V Zero balance ± 1.0 %FSO Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere ASC-50t 00ASC-050T-C3-00X Compression Load Cell 12080 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

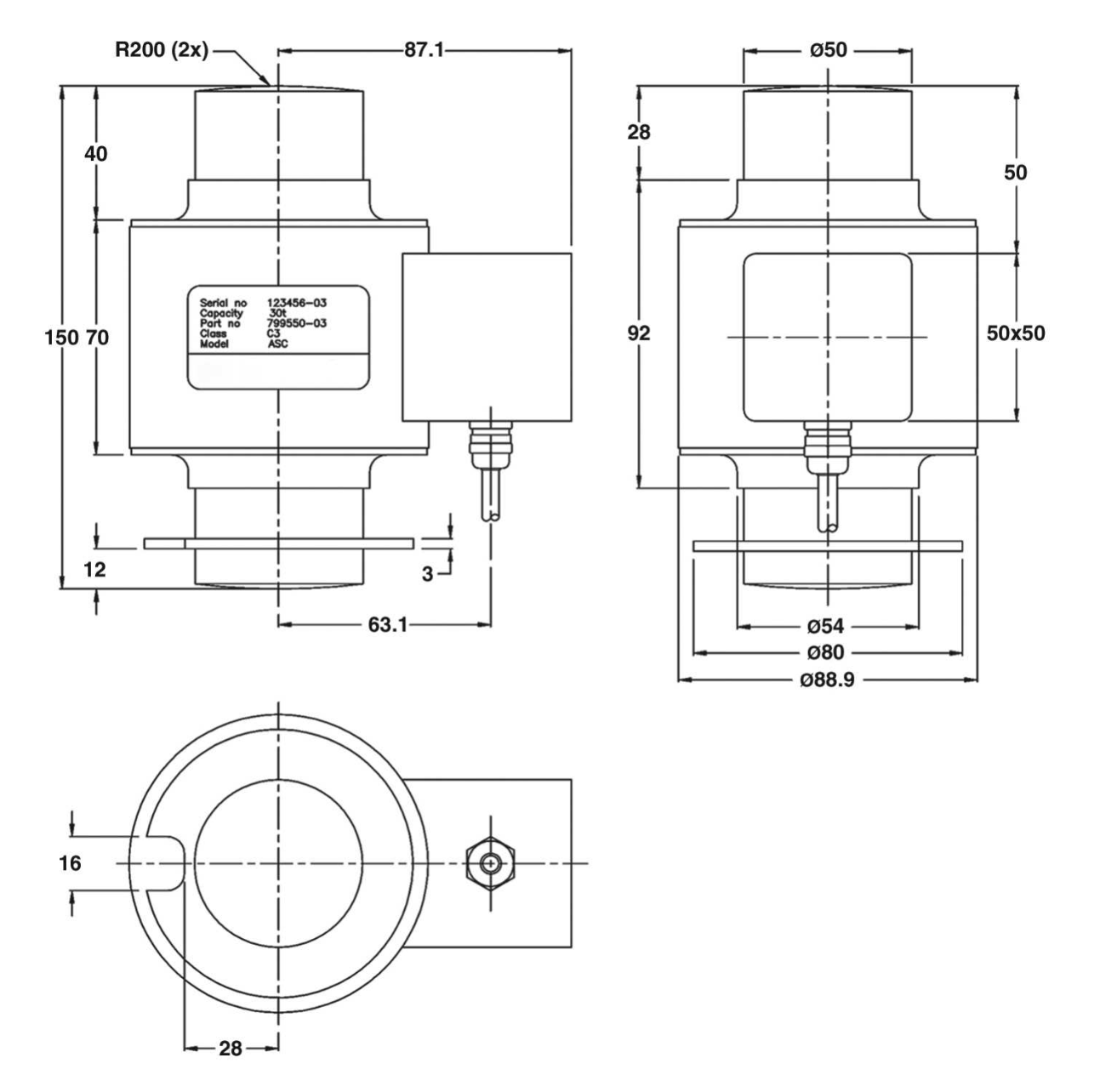

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12080 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP69K Material Stainless Steel Combined error ≤ ±0.0230 %FSO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0245 % / 30 min (C3) Input impedance 700 ± 35 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 25 V Maximum safe overload 150 %Emax Non-repeatability ≤ ±0.035 %FSO (C3) NTEP/OIML OIML Operating temp range −40 to +80 °C Output impedance 700 ± 7 Ω Rated capacity 50 t Rated output 2 mV/V Recommended excitation 5 to 20 V Ultimate central overload 300 %Emax Zero balance ± 1.0 %FSO Manufacturer Vishay-Revere Cable length 49.2 ft / 15 m Sealing Welded Seal Manufacturer's Part Number 00ASC-050T-C3-00X Approval OIML R60 C3 Short name ASC-50t Compression Load Cell Hero chips IP69K; Stainless Steel; Analog signal; OIML R60 C3; 49.2 ft / 15 m cable
