CSP Compression Load Cell · 50,000 lb · 00CSP-050E-A1-01XRevere CSP-50Klb 00CSP-050E-A1-01X Compression Load Cell
- Description
- Additional Information
- 01 / 06Compression, canister, rocker column, and ring torsion load cells
Compression, canister, rocker column, and ring torsion load cells for confirmed-fit replacement and scale builds.
The Revere CSP-50Klb 00CSP-050E-A1-01X Compression Load Cell is a compression, canister, rocker column, or ring torsion load cell rated 50K lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 00CSP-050E-A1-01X.
50K lbRated capacityStainless steel (welded seal)MaterialIP68ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Compression cells cover canister, rocker-column, ring-torsion, and disk-style weighing for tanks, silos, truck scales, and high-capacity systems.
01Truck and tank scales
Compression geometry is common in high-capacity vehicle and vessel weighing.
compression02Outdoor and washdown service
Material and seal rating matter because compression cells often live under structures.
environment03Mount-dependent accuracy
Cup, mount, lift-off, and side-load details must be confirmed with the cell.
mount03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 50K lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel (welded seal) Protection IP68 Signal Analog Manufacturer Vishay-Revere Manufacturer part number 00CSP-050E-A1-01X Rated capacity 50K lb Capacity in pounds 50,000 lb Sealing Welded Seal Approval NTEP Rated output 2 mV/V Recommended excitation 5–10 VDC Maximum excitation 15 VDC Input impedance 450 ± 4.5 Ω Output impedance 480 ± 4.8 Ω Insulation resistance 5000 MΩ Combined error ≤ ±0.02 %FSO (NTEP IIIL) (A1) Non-repeatability ≤ ±0.01 %FS Safe overload 150 %FS Operating temperature −18 to +65 °C Output sensitivity 2 mV/V Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere CSP-50Klb 00CSP-050E-A1-01X Compression Load Cell 10973 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

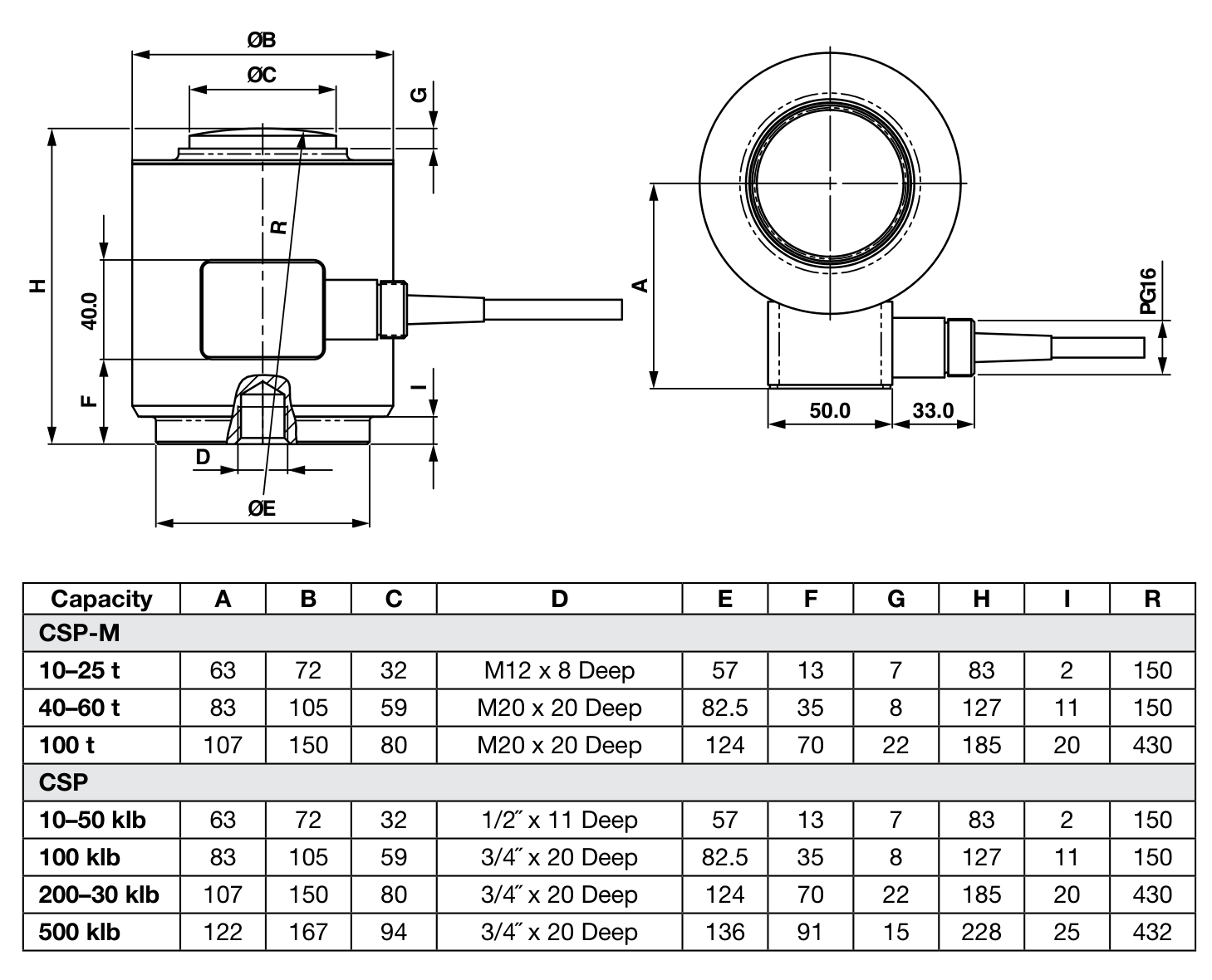

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10973 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.02 %FSO (NTEP IIIL) (A1) Compensated temp range −10 to +40 °C Input impedance 450 ± 4.5 Ω Insulation resistance 5000 MΩ Internal Battery -- Maximum excitation 15 VDC Maximum safe overload 150 %FS Non-repeatability ≤ ±0.01 %FS NTEP/OIML NTEP Operating temp range −18 to +65 °C Output impedance 480 ± 4.8 Ω Rated capacity 50K lb Rated output 2 mV/V Recommended excitation 5–10 VDC Manufacturer Vishay-Revere Sealing Welded Seal Interchangeable Zemic BM14A Manufacturer's Part Number 00CSP-050E-A1-01X Approval NTEP Short name CSP Compression Load Cell · 50,000 lb · 00CSP-050E-A1-01X Hero chips IP68; Stainless Steel; Analog signal; NTEP
