HPS-100lb Single Point Load CellRevere HPS-100lb 00HPS-100L-3S-01F Single Point Load Cell
- Description
- Additional Information
- 01 / 06Single point load cells
Single point load cells for confirmed-fit replacement and scale builds.
The Revere HPS-100lb 00HPS-100L-3S-01F Single Point Load Cell is a single point load cell rated 100 lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 00HPS-100L-3S-01F.
100 lbRated capacityStainless steel 1.4542MaterialIP66 and IP68ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Single point cells are selected around platform size, off-center loading behavior, capacity, material, and approval requirements.
01Bench and retail platforms
Best fit for compact scales where one cell supports the full platform.
platform02Counting and pricing scales
A common choice for small weighing stations that need repeatability under off-center loading.
bench scale03Replacement work
Confirm maximum platform size and mounting pattern before replacing another brand.
retrofit03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 100 lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP66 and IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel 1.4542 Protection IP66 and IP68 Signal Analog Manufacturer Vishay-Revere Manufacturer part number 00HPS-100L-3S-01F Rated capacity 100 lb Capacity 100 lb Capacity in pounds 100 lb Sealing Welded Seal Approval OIML R60 C3 Thread Unified National Rated output 2.0 mV/V Recommended excitation 5 to 12 V Maximum excitation 15 V Input impedance 400 ± 6 Ω Output impedance 350 ± 7 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.0200 %FSO (C3) Non-repeatability ≤ ±0.0100 %FSO Creep error ≤ ±0.0245 % / 30 min (C3) Safe overload 150 %Emax Ultimate overload 300 %Emax Operating temperature −40 to +80 °C Output sensitivity 2.0 mV/V Zero balance ± 1.0 %FSO Compensated temperature −10 to +40 °C Storage temperature −40 to +90 °C Safe side load 100 %Emax 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere HPS-100lb 00HPS-100L-3S-01F Single Point Load Cell 12088 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

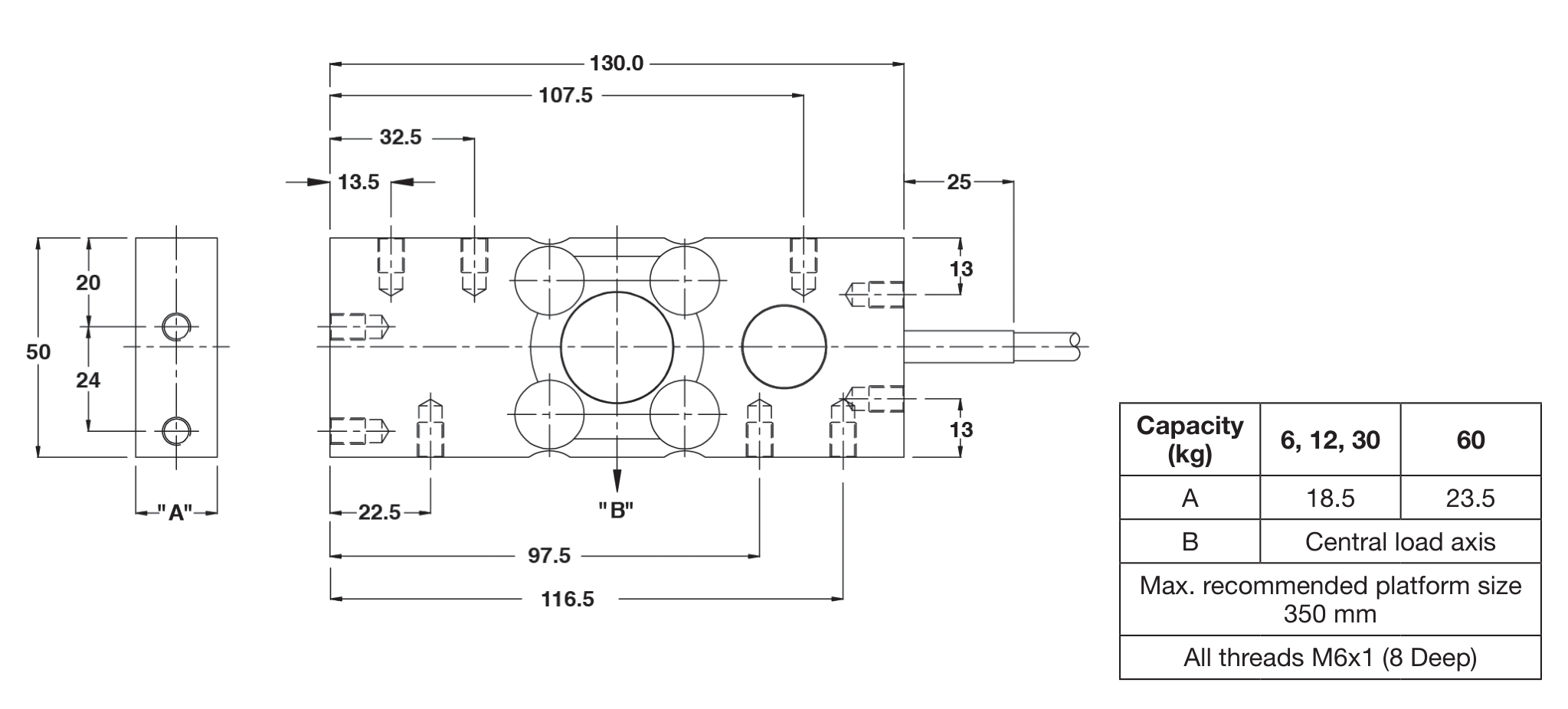

DIMENSIONSOutline dimensions.
