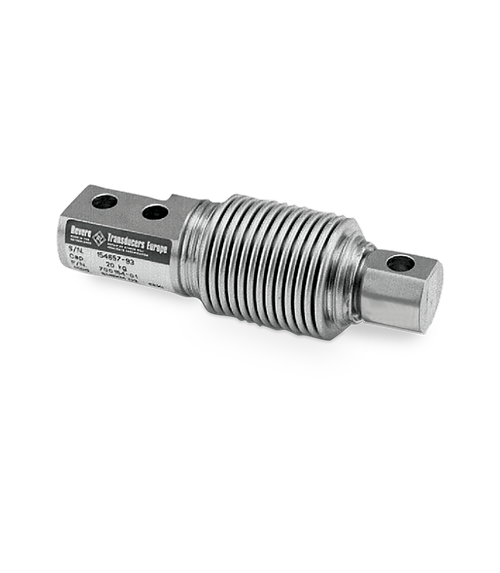

Revere SHB-100kg 00SHB-100K-C3-01X Shear Beam Load Cell
- Description
- Additional Information
- 01 / 06Shear beam and bending beam load cells
Shear beam and bending beam load cells for confirmed-fit replacement and scale builds.
The Revere SHB-100kg 00SHB-100K-C3-01X Shear Beam Load Cell is a shear beam or bending beam load cell rated 100 kg. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 00SHB-100K-C3-01X.
100 kgRated capacityStainless SteelMaterialIP66ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Shear and bending beam cells are common choices for floor scales, livestock platforms, tanks, hoppers, and low-to-mid capacity industrial scales.
01Platforms and floor scales
A practical load-cell family for fabricated platforms and summing-box systems.
platform02Tanks and hoppers
Works well when mounts control side load and vessel movement.
vessel03Livestock and agriculture
Often used in platform and chute builds when capacity and environmental rating fit.
ag scale03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 100 kg against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP66. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless Steel Protection IP66 Signal Analog Cable length 9.8 ft / 3 m Manufacturer Vishay-Revere Manufacturer part number 00SHB-100K-C3-01X Rated capacity 100 kg Capacity 100 kg Capacity weight 100 kg Sealing Hermetically Sealed Approval OIML Thread Through Hole 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere SHB-100kg 00SHB-100K-C3-01X Shear Beam Load Cell 10297 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

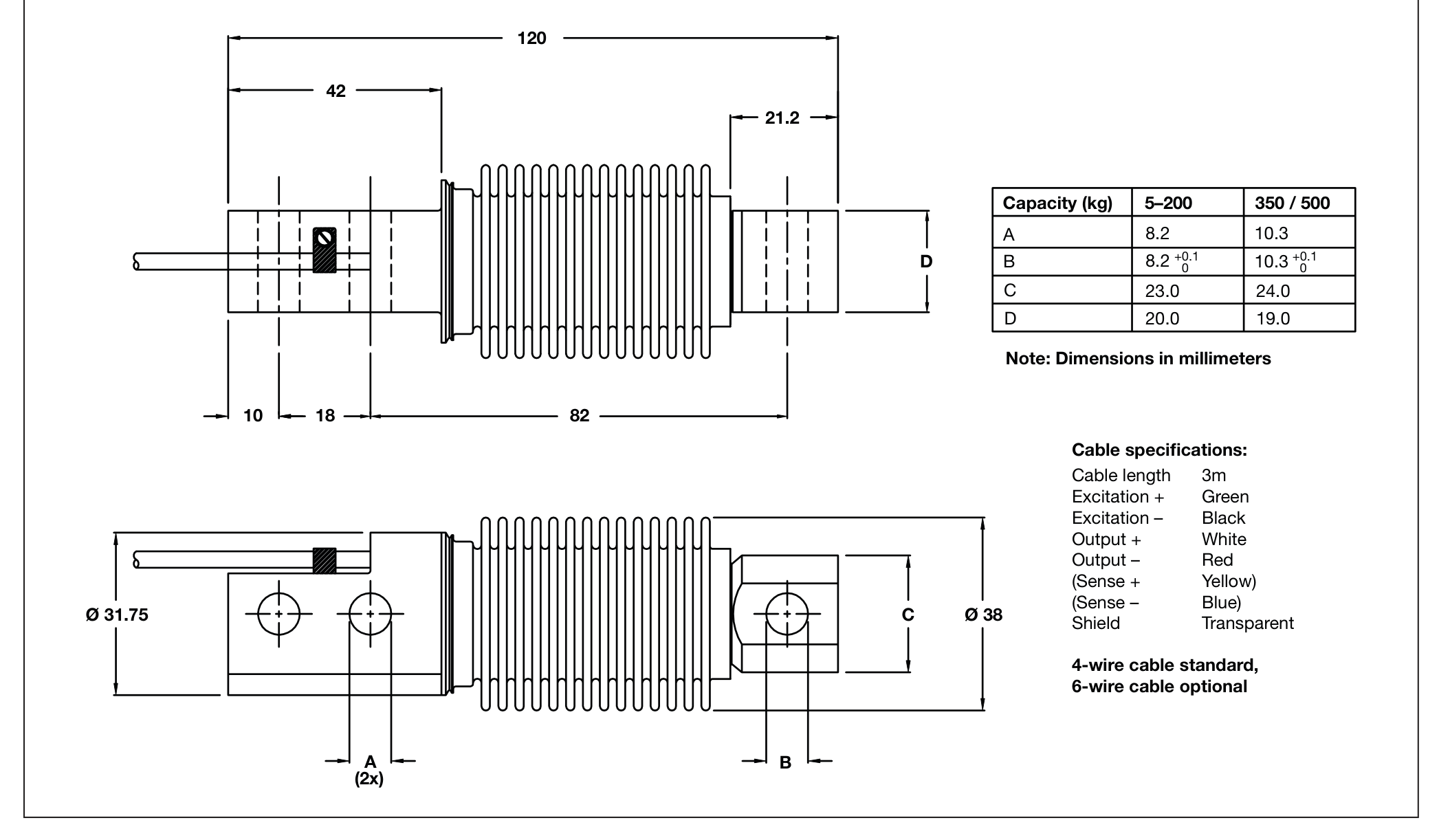

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10297 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP66 Material Stainless Steel Internal Battery -- NTEP/OIML OIML Rated capacity 100 kg Rated output 2.0 mV/V Manufacturer Vishay-Revere Capacity 100 kg Cable length 9.8 ft / 3 m Thread - Clevis Through Hole Sealing Hermetically Sealed Interchangeable Zemic BM11 Manufacturer's Part Number 00SHB-100K-C3-01X Approval OIML Hero chips 100 kg; IP66; Stainless Steel; Analog signal; OIML
