9123-1Klb Shear Beam Load CellRevere 9123-1Klb 09123-001E-5D-00X Shear Beam Load Cell
- Description
- Additional Information
- 01 / 06Shear beam and bending beam load cells
Shear beam and bending beam load cells for confirmed-fit replacement and scale builds.
The Revere 9123-1Klb 09123-001E-5D-00X Shear Beam Load Cell is a shear beam or bending beam load cell rated 1K lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 09123-001E-5D-00X.
1K lbRated capacityStainless steelMaterialIP67ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Shear and bending beam cells are common choices for floor scales, livestock platforms, tanks, hoppers, and low-to-mid capacity industrial scales.
01Platforms and floor scales
A practical load-cell family for fabricated platforms and summing-box systems.
platform02Tanks and hoppers
Works well when mounts control side load and vessel movement.
vessel03Livestock and agriculture
Often used in platform and chute builds when capacity and environmental rating fit.
ag scale03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 1K lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel Protection IP67 Signal Analog Cable length 20.5 ft / 6.25 m Manufacturer Vishay-Revere Manufacturer part number 09123-001E-5D-00X Rated capacity 1K lb Capacity 1000 lb Capacity in pounds 1,000 lb Sealing Covered and Potted Approval OIML R60 C3/C4 · NTEP Class III Thread Unified National Rated output 3.0 mV/V Recommended excitation 5 to 12 V Maximum excitation 15 V Input impedance 350 ± 3.5 Ω Output impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.023 %FSO (C3) Creep error ≤ ±0.025 % / 30 min (C3) Safe overload 150 %Emax Ultimate overload 300 %Emax Output sensitivity 3.0 mV/V Zero balance ± 1.0 %FSO Compensated temperature −10 to +40 °C Safe side load 100 %Emax 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere 9123-1Klb 09123-001E-5D-00X Shear Beam Load Cell 12348 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

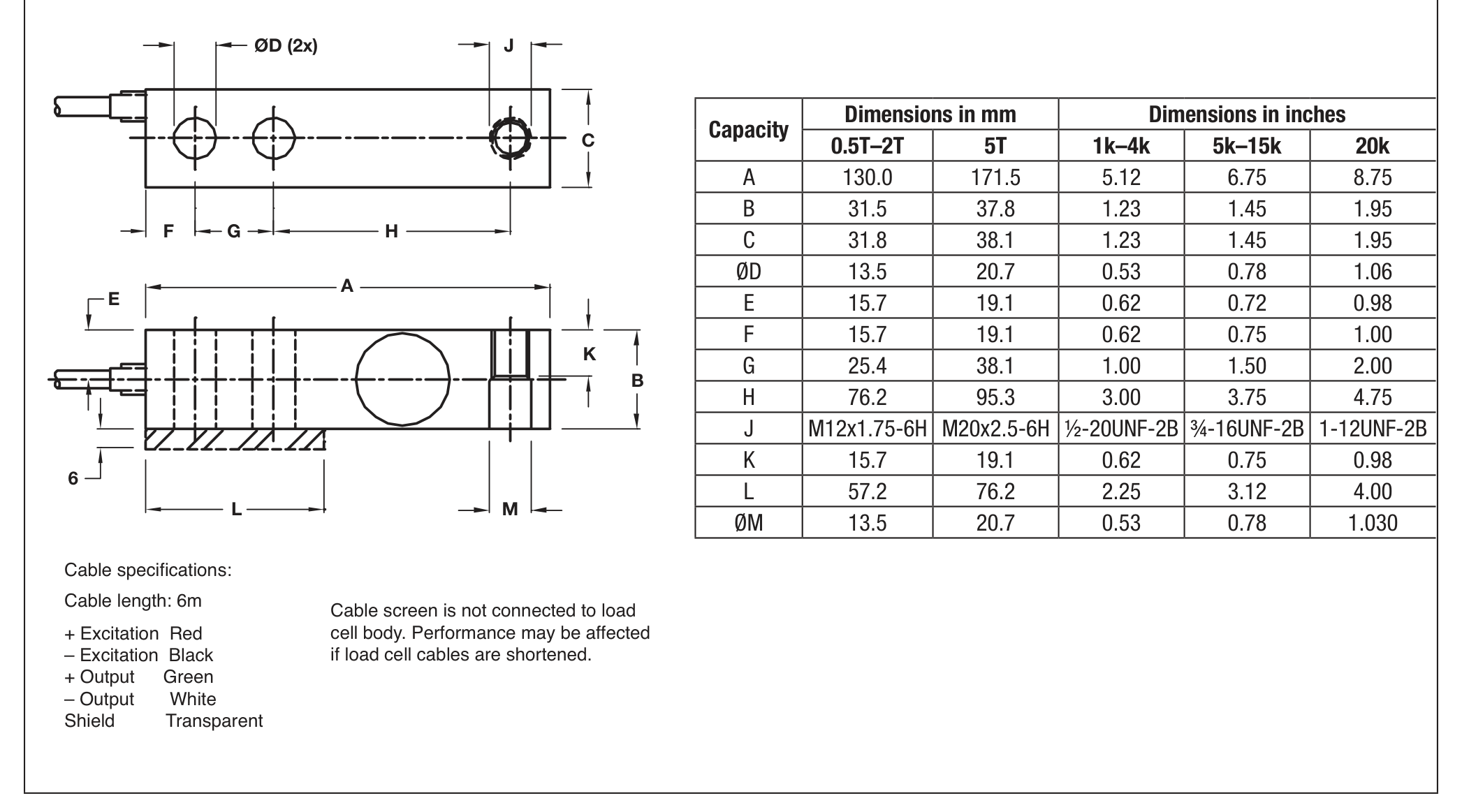

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12348 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Stainless Steel Combined error ≤ ±0.023 %FSO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.025 % / 30 min (C3) Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 15 V Maximum safe overload 150 %Emax NTEP/OIML NTEP Output impedance 350 ± 3.5 Ω Rated capacity 1K lb Rated output 3.0 mV/V Recommended excitation 5 to 12 V Safe sideload 100 %Emax Ultimate central overload 300 %Emax Zero balance ± 1.0 %FSO Manufacturer Vishay-Revere Capacity 1000 lb Cable length 20.5 ft / 6.25 m Thread - Clevis Unified National Sealing Covered and Potted Interchangeable Zemic B8D Manufacturer's Part Number 09123-001E-5D-00X Approval OIML R60 C3 Short name 9123-1Klb Shear Beam Load Cell Hero chips 1,000 lb; IP67; Stainless Steel; Analog signal; OIML R60 C3
