9203-5Klb Double-Ended BeamRevere 9203-5Klb 09203-005E-D3-00X Double-Ended Beam Load Cell
- Description
- Additional Information
- 01 / 06Double-ended beam and weighbridge load cells
Double-ended beam and weighbridge load cells for confirmed-fit replacement and scale builds.
The Revere 9203-5Klb 09203-005E-D3-00X Double-Ended Beam Load Cell is a double-ended beam load cell rated 5K lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 09203-005E-D3-00X.
5K lbRated capacityStainless steelMaterialIP67ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Double-ended beam cells are commonly used in truck scales, rail scales, hoppers, and other heavy multi-cell systems.
01Truck and rail scales
A strong fit for weighbridges and vehicle-scale load points.
weighbridge02Heavy vessels
Works in silo, hopper, and tank weighing when the mount controls load introduction.
vessel03Service replacement
Confirm cups, links, mounts, and cable exit before ordering.
retrofit03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 5K lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel Protection IP67 Signal Analog Cable length 19.7 ft / 6 m Manufacturer Vishay-Revere Manufacturer part number 09203-005E-D3-00X Rated capacity 5K lb Capacity 5000 lb Capacity in pounds 5,000 lb Sealing Welded Seal Thread Through Hole Rated output 3.0 mV/V Recommended excitation 10 V Maximum excitation 15 V Input impedance 700 ± 14 Ω Output impedance 703 ± 4 Ω Insulation resistance ≥ 1000 MΩ Combined error ≤ ±0.03 %FSO Creep error ≤ ±0.03 % / 20 min Safe overload 150 %Emax Ultimate overload 300 %Emax Operating temperature −18 to +65 °C Output sensitivity 3.0 mV/V Zero balance ± 1.0 %FSO Compensated temperature −10 to +40 °C Safe side load 100 %Emax 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere 9203-5Klb 09203-005E-D3-00X Double-Ended Beam Load Cell 12354 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

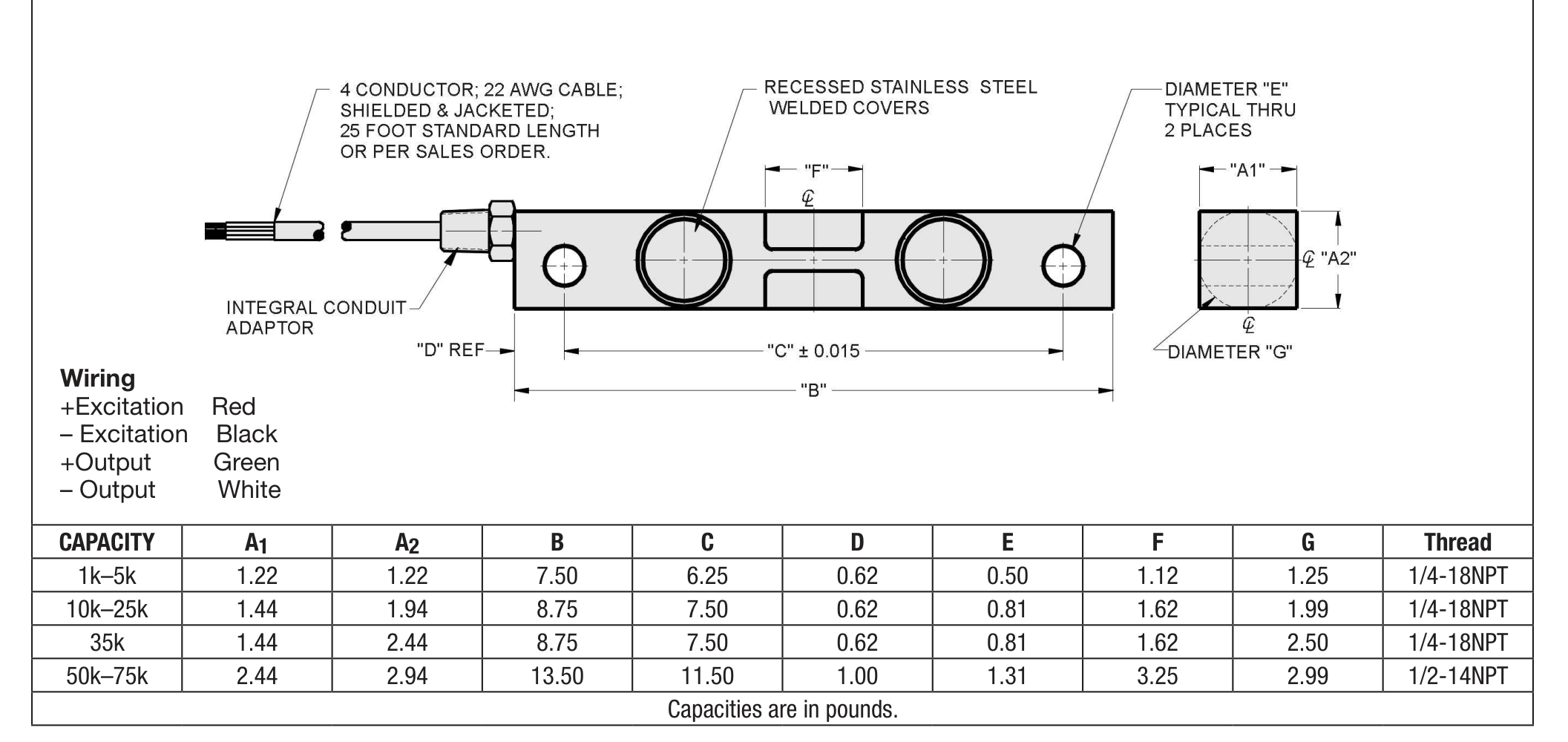

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12354 is the right fit.
