9363-750lb S-Type Load CellRevere 9363-750lb 09363-750L-B1-04F S-Type Tension/Compression Load Cell
- Description
- Additional Information
- 01 / 06S-type tension/compression load cells
S-type tension/compression load cells for confirmed-fit replacement and scale builds.
The Revere 9363-750lb 09363-750L-B1-04F S-Type Tension/Compression Load Cell is an S-type tension/compression load cell rated 750 lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 09363-750L-B1-04F.
750 lbRated capacityStainless steelMaterialIP67ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
S-type cells are used for suspended, tension, and inline force applications where the force path must stay centered.
01Hanging scales
S-type geometry fits suspended weighing with clevises, rod ends, or tension hardware.
tension02Force measurement
Useful where the system measures pull, compression, or bidirectional force.
force03Retrofit work
Match thread, capacity, material, and wiring before swapping an existing S-beam.
replacement03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 750 lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel Protection IP67 Signal Analog Cable length 20.5 ft / 6.25 m Manufacturer Vishay-Revere Manufacturer part number 09363-750L-B1-04F Rated capacity 750 lb Capacity 750 lb Capacity in pounds 750 lb Sealing Covered Approval OIML R60 C3 · NTEP Class IIIL Thread Unified National Rated output 3.0 mV/V Recommended excitation 5 to 12 V Maximum excitation 15 V Input impedance 390 ± 15 Ω Output impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.0200 %FSO (C3) Non-repeatability ≤ ±0.0100 %FSO Safe overload 150 %Emax Ultimate overload 250 %Emax Operating temperature −40 to +80 °C Output sensitivity 3.0 mV/V Zero balance ± 1.0 %FSO Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere 9363-750lb 09363-750L-B1-04F S-Type Tension/Compression Load Cell 12364 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

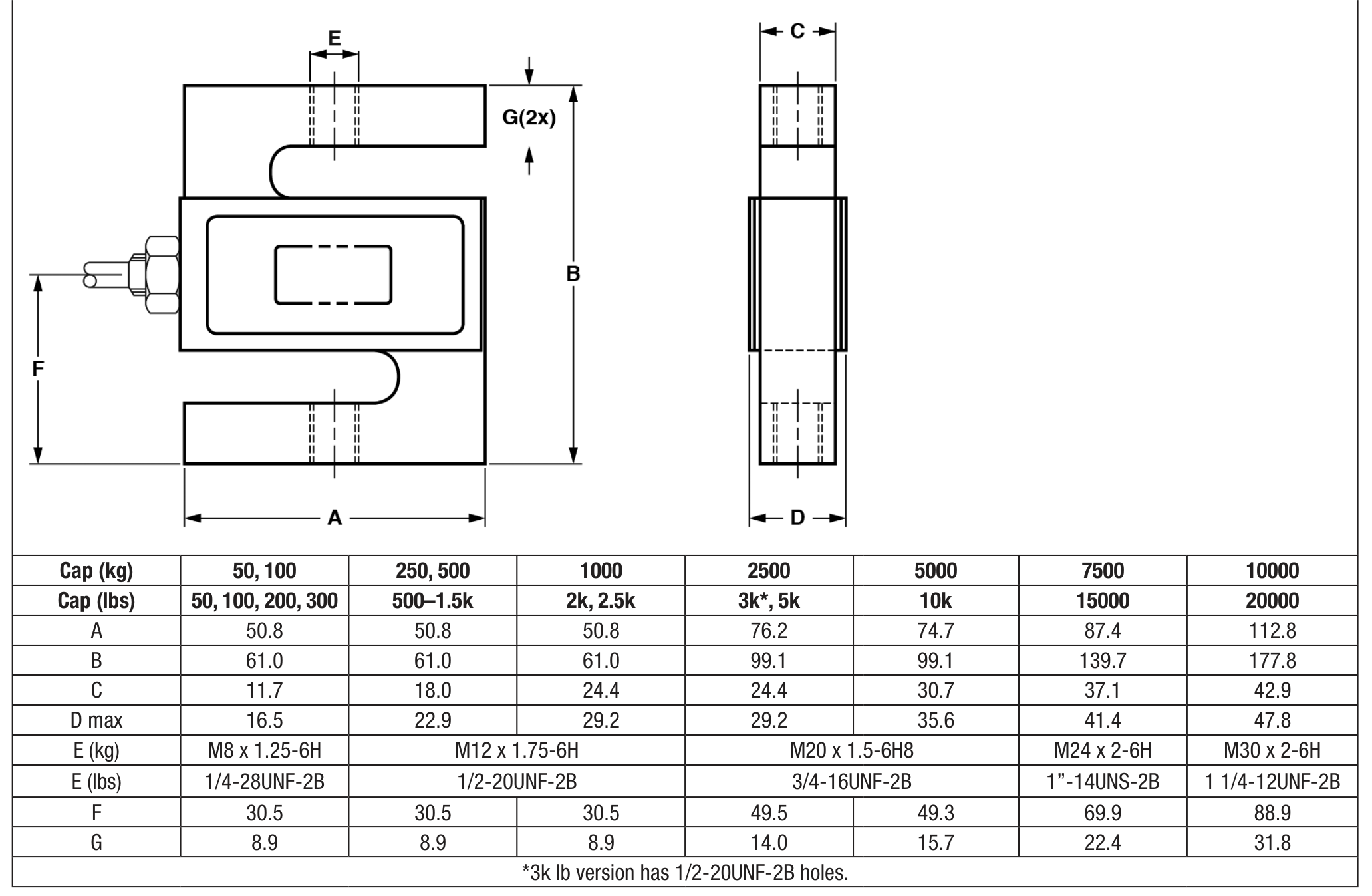

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12364 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Stainless Steel Combined error ≤ ±0.0200 %FSO (C3) Compensated temp range −10 to +40 °C Input impedance 390 ± 15 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 15 V Maximum safe overload 150 %Emax Non-repeatability ≤ ±0.0100 %FSO NTEP/OIML NTEP Operating temp range −40 to +80 °C Output impedance 350 ± 3.5 Ω Rated capacity 750 lb Rated output 3.0 mV/V Recommended excitation 5 to 12 V Ultimate central overload 250 %Emax Zero balance ± 1.0 %FSO Manufacturer Vishay-Revere Capacity 750 lb Cable length 20.5 ft / 6.25 m Thread - Clevis Unified National Sealing Covered Interchangeable Zemic B3G Manufacturer's Part Number 09363-750L-B1-04F Approval OIML R60 C3 Short name 9363-750lb S-Type Load Cell Hero chips 750 lb; IP67; Stainless Steel; Analog signal; OIML R60 C3
