Vishay-Revere SHBXR-30KG-C3/SC 30 kg Shear Beam Load Cell
SKU 10295
IP68 / IP66; OIML; Vishay-Revere
430.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Vishay-Revere SHBXR-30KG-C3/SC is a 30 kg capacity variation of the Vishay-Revere SHBxR shear beam load cell family, manufactured in stainless steel with IP66, IP68 ingress protection. This model is Accuracy class C3 (SC current-calibration version) — OIML R60.
30 kgRated capacityStainless steelMaterialIP66, IP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Vishay-Revere Manufacturer part number SHBXR-30KG-C3/SC Capacity 30 kg Approval Accuracy class C3 (SC current-calibration version) — OIML R60 Rated output 2.0 mV/V Material Stainless steel Protection IP66, IP68 Signal Analog Cable length 3 m Rated output tolerance 0.02 ± mV/V Zero balance 1.0 ± % FSO Compensated temperature range -10 to +40 °C Operating temperature range -40 to +80 °C Maximum safe overload 150 % of Emax Ultimate overload 300 % of Emax Excitation voltage 5 to 12 V Maximum excitation voltage 15 V Input resistance 460 ± 50 Ω Output resistance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Vishay-Revere SHBXR-30KG-C3/SC 30 kg Shear Beam Load Cell 10295 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

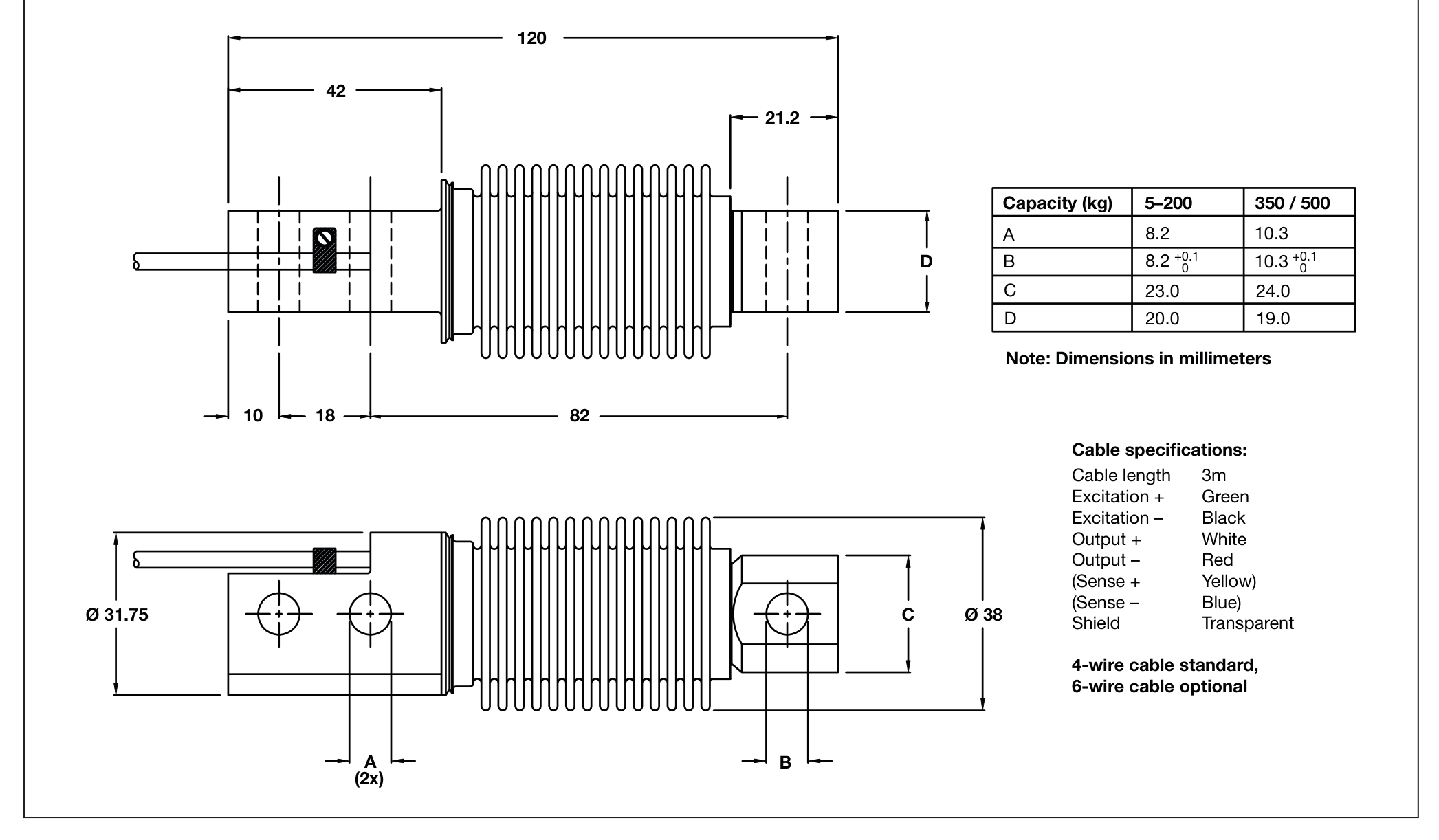

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Protection class IP66, IP68 Combined error ≤ ±0.0200 %FSO (C3) Creep error 20mins ≤ ±0.0167 % applied load (min. dead load output return, C3) Input impedance 460±50 Ω Internal Battery -- Excitation voltage 5 to 12 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Maximum safe overload 300 % of R.C. Non-repeatability C3: 0.0100 ±%FSO | C4: 0.0090 ±%FSO | NTEP IIIL: 0.01 ±%FSO | Non- Approved: 0.02 ±%FSO NTEP/OIML OIML Output impedance 350±3.5 Ω Rated capacity 30 kg Rated output 2 mV/V Rated output tolerance 0.02 ±%mV/V Zero balance 1 ±%FSO Manufacturer Vishay-Revere Accuracy C3, C4, NTEP IIIL, Non- Approved Manufacturer's Part Number SHBXR-30KG-C3/SC Approval OIML Hero chips IP68 / IP66; OIML; Vishay-Revere
