Vishay-Revere SHBXR-500KG-C3/SC 500 kg Shear Beam Load Cell
No · Load cell

SKU 10300
430.00
☎ x305
$430.00
  • 10300 - Vishay-Revere SHBXR-500KG-C3/SC 500 kg Shear Beam Load Cell
  • Type: Shear Beam Load Cell
  • Manufacturer part number: SHBXR-500KG-C3/SC
  • Capacity: 500 kg
  • Material: Stainless steel
  • Protection: IP66, IP68
  • Approval: Accuracy class C3 (SC current-calibration version) — OIML R60

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03Shear Beam Load Cell

    Shear Beam Load Cell for confirmed-fit replacement and scale builds.

    The Vishay-Revere SHBXR-500KG-C3/SC is a 500 kg capacity variation of the Vishay-Revere SHBxR shear beam load cell family, manufactured in stainless steel with IP66, IP68 ingress protection. This model is Accuracy class C3 (SC current-calibration version) — OIML R60.

    500 kg
    Rated capacity
    Stainless steel
    Material
    IP66, IP68
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerVishay-Revere
    Manufacturer part numberSHBXR-500KG-C3/SC
    Capacity500 kg
    ApprovalAccuracy class C3 (SC current-calibration version) — OIML R60
    Rated output2.0 mV/V
    MaterialStainless steel
    ProtectionIP66, IP68
    SignalAnalog
    Cable length3 m
    Rated output tolerance0.02 ± mV/V
    Zero balance1.0 ± % FSO
    Compensated temperature range-10 to +40 °C
    Operating temperature range-40 to +80 °C
    Maximum safe overload150 % of Emax
    Ultimate overload300 % of Emax
    Excitation voltage5 to 12 V
    Maximum excitation voltage15 V
    Input resistance460 ± 50 Ω
    Output resistance350 ± 3.5 Ω
    Insulation resistance≥ 5000 MΩ
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Vishay-Revere SHBXR-500KG-C3/SC 500 kg Shear Beam Load Cell10300

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    DIMENSIONS

    Outline dimensions.

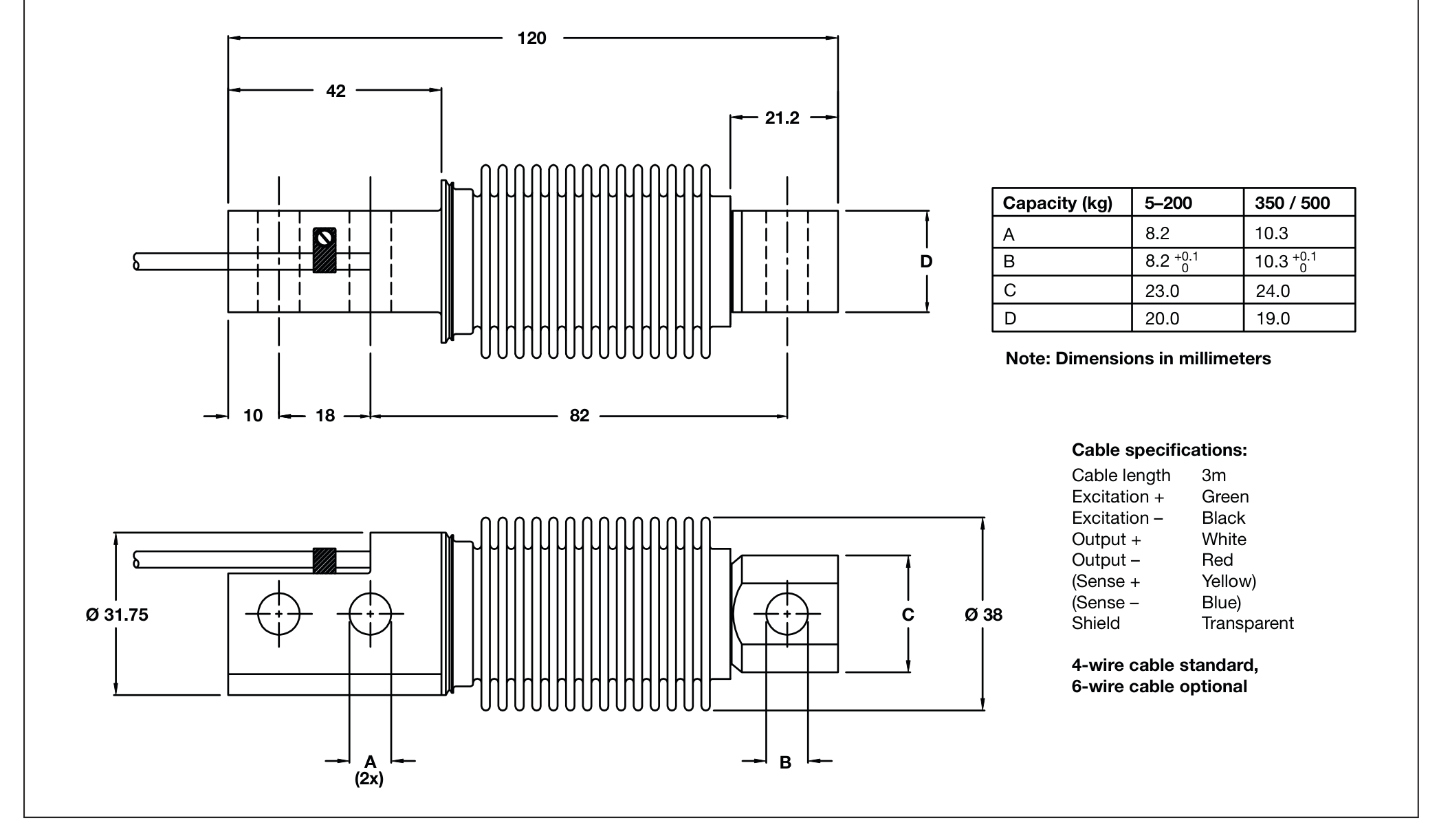

    Vishay-Revere SHBXR-500KG-C3/SC 500 kg Shear Beam Load Cell dimensions drawing
    Source: manufacturer datasheet

    Talk to a WeightechUSA load-cell specialist.

    Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

    Email SalesView DatasheetCall +1 (954) 666-0877 × 305
