WTX-12D Junction BoxWeightechUSA WTX-12D Stainless Steel Digital Junction Box for 12 Digital Load Cells, IP67
- Description
- Additional Information

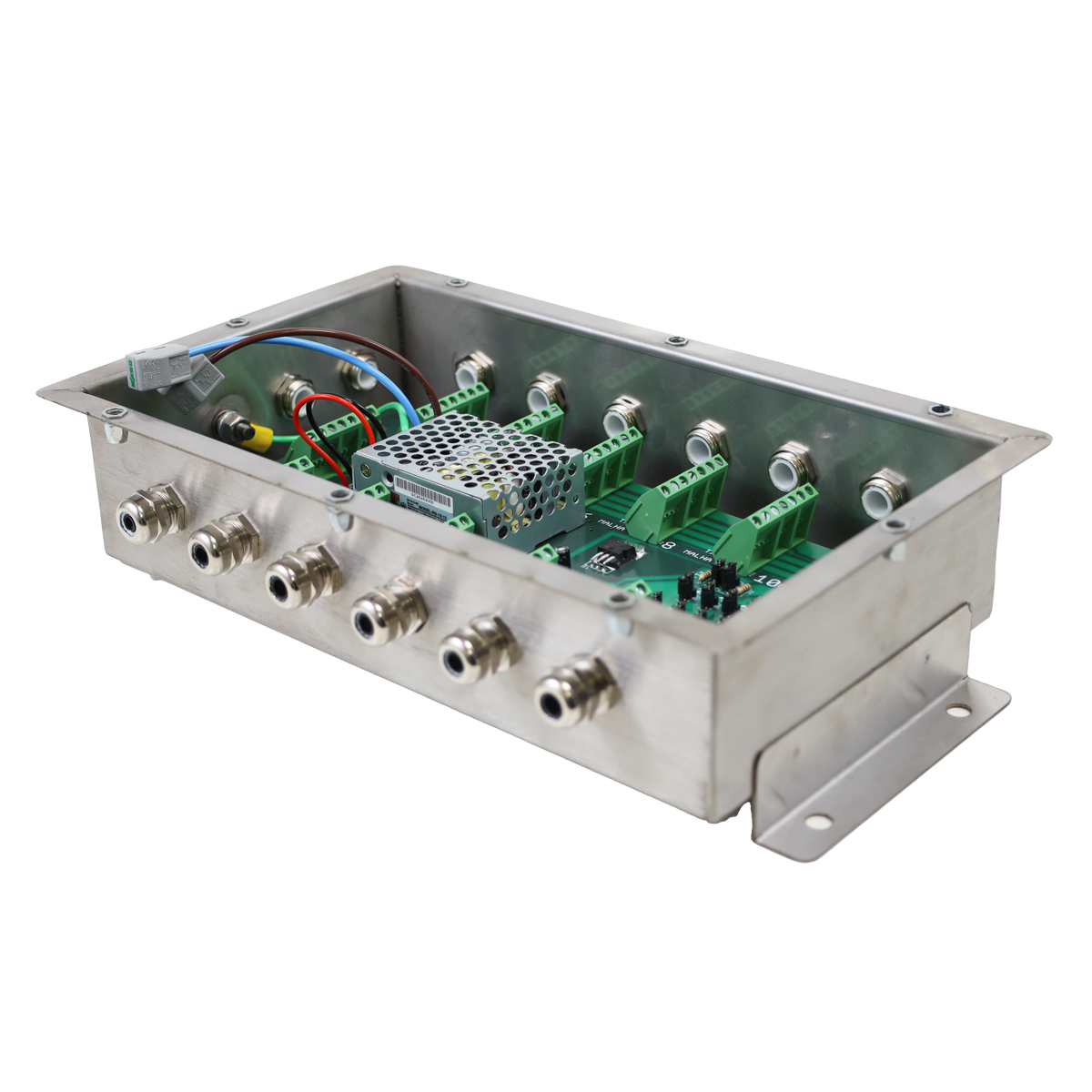

- 01 / 05WeightechUSA WTX-12D digital junction box
IP67 stainless-steel junction box for up to 12 digital load cells.
The WeightechUSA WTX-12D (SKU 40063) connects up to 12 digital load cells simultaneously, with an unlimited number of extra junction boxes on the same circuit. A 12 V, 15 W power supply built into the box powers the digital cells. The box is made entirely of stainless steel with special sealing and rated IP67.
12Digital load cells per boxIP67Protected against submersion and water jets12 V15 WBuilt-in power supply317×184mmOverall size02 / 05ApplicationsTypical uses for a digital junction box.
The datasheet does not list applications. As a general-purpose digital multi-cell junction box it is typically used on:
01Truck and vehicle scales
Collects many digital load cells from long platforms on one circuit.
02Large platform and floor scales
Individual power jumpers per channel help with bus-scan addressing.
03Tanks, silos and hoppers
Multi-cell vessel weighing, indoors or outdoors.
04Wet and washdown locations
Stainless-steel, IP67 enclosure with a GORE valve against condensation.
03 / 05BenefitsWhat the WTX-12D offers.
01Built-in 12 V / 15 W supply
Power supply integrated in the box powers the digital load cells, for greater reliability.
02Individual power jumpers
Each channel has its own power jumper, which makes addressing via bus scan easier.
03GORE valve
Equalizes pressure inside the box without letting water or oil in, preventing internal condensation and extending service life.
04Stainless PG69 glands
Stainless-steel PG69 cable glands: stronger and safer connections. Also protection against electric shock and very good thermal stability.
04 / 05Technical dataWTX-12D specifications.
Brand / model WeightechUSA WTX-12D SKU 40063 Weightech factory code 505861 (junction box); 504845 (WTX-12D junction board accessory) Signal Digital load cells Load cells Up to 12 digital load cells simultaneously Expansion Unlimited number of extra junction boxes on the same circuit Power supply 12 V, 15 W, built into the box Terminals per channel +VCC, GND, RXB, RXA, TXB, TXA, shield Protection IP67 (submersion and water jets) Enclosure Stainless steel Cable glands PG69, stainless steel Pressure equalizer GORE valve (prevents internal condensation) Overall dimensions 317 x 184 mm, height 88 mm Mounting 4 slots 4 x 8 mm, 80 mm apart 05 / 05Part number and FAQOrder code.
Product Order code WeightechUSA WTX-12D digital junction box 40063 Is the WTX-12D for analog or digital load cells?
Digital. For analog load cells see the WTX-12.
Does it include a power supply?
Yes. A 12 V, 15 W power supply is built into the box and powers the digital load cells.
Which language is the datasheet in?
The manufacturer's WTX12-D datasheet is currently available in Portuguese only.

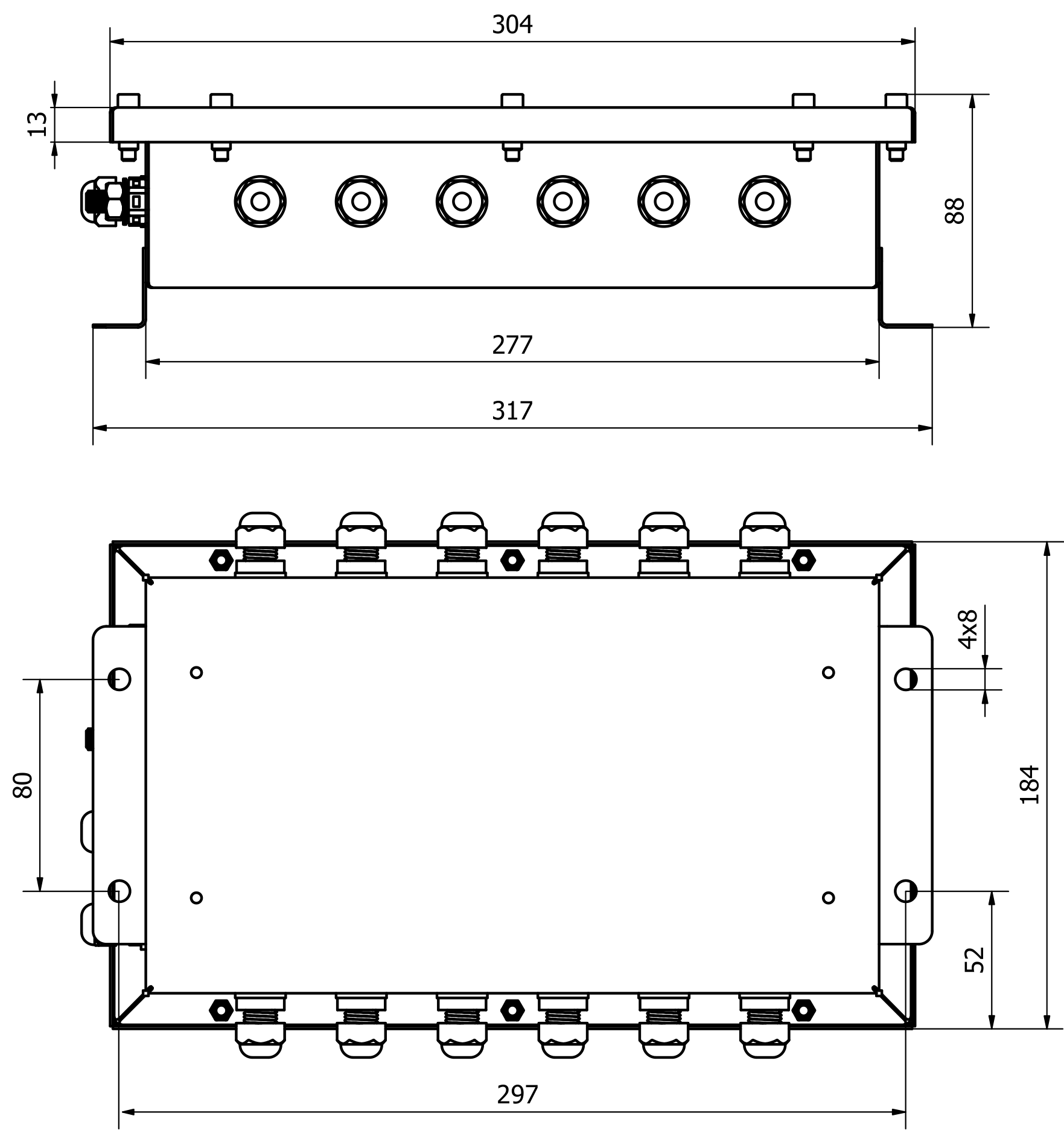

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA specialist.
Questions about fit, calibration, certification, or volume pricing? Our team works on quotes the same day.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Digital Protection class IP67 Material Stainless Steel Voltage Range 6–15VCC Internal Battery -- Manufacturer WeightechUSA Max. Number of Connected Load Cells 12 Manufacturer's Part Number WTX-12D Short name WTX-12D Junction Box Hero chips IP67; Stainless Steel; Digital signal; Up to 12 load cells
