WT3000-IR-AG Weigh BarsWeightechUSA WT3000-IR-AG Weigh Bars Heavy-Duty Scales for Livestock
Weigh every animal. Log every record. Move on.
- Description
- Additional Information
- 01 / 09Portable livestock weighing system
Weigh every animal. Log every record. Move on.
The WT3000-IR-AG kit is built for ranchers and herd managers who need to weigh cattle in the chute, in the alley, or out at pasture — without dragging a PC, an extension cord, or a clipboard along. Two carbon-steel-coated bars, a Bluetooth-enabled indicator, power supply, and vehicle adapter all live in one IP65 carry case. Open it, hook up the bars, and the animal you're working is on the screen and on your phone in seconds.
5,000 / 11,000lb × 1 lbavailable calibrated capacities, both with 1 lb readability40hbattery runtime with one load cell80/sClass III samples / secondIP65sealed dust + water-resistant case02 / 09What's in the kitEverything you need, pre-mounted in one case.
21402Weigh Bar Pro (pair)
Two carbon steel bars with electrostatic coating, 1,115 mm (43.9 in) long and 115 mm (4.5 in) high overall, with a 77.35 mm (3.05 in) low-profile beam. Designed to sit flat under a chute floor channel, on a concrete pad, or directly on packed dirt. Together the pair supports either the 5,000 lb × 1 lb or 11,000 lb × 1 lb calibrated configuration.
21401WT3000-IR-AG Indicator
Six-digit backlit LCD with a 55 mm digit height — readable across an alley in full sun. Color-changing backlight confirms each weigh-in. Sample speed 80/sec, internal resolution 1/500,000, Bluetooth 4.0 built in.
12 VDCPower + vehicle adapter
Runs off a 110/220 V wall outlet through the included supply, or off any vehicle's 12 V accessory port through the cigarette-lighter adapter. Also accepts direct 12 V solar input — no inverter or generator required.
IP65Sealed carry case
Foam-lined, latch-locked, with a GORE pressure-equalization valve that bleeds humidity out and keeps water and dust from getting in. Internal 248 × 190 × 106 mm.
03 / 09Mounting & chute compatibilityMounts like a standard load bar.
The Weigh Bar Pro is a standalone pair of load bars — 1,115 mm (43.9 in) long, 160 mm (6.3 in) wide and 115 mm (4.5 in) tall. Like any cattle weigh bar, you bolt them one of two ways:
Under a squeeze chute
Bolt the bars to the chute’s base frame and down to a level concrete pad. The animal stands in the chute as normal.
Under a weigh platform
Bolt the bars beneath a flat, open-sided deck set in the alley — no concrete needed. The most universal way to mount them.

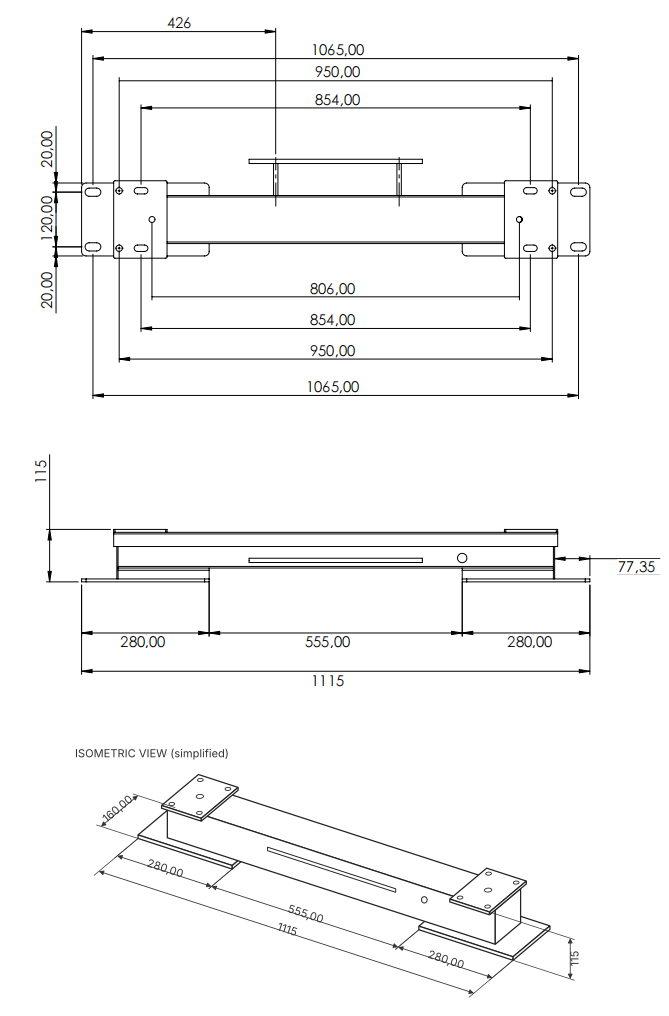

Top mounting-hole pattern: holes on 950 mm (37.4 in) and 854 mm (33.6 in) centres, with outer bolt-down feet at 1,065 mm (41.9 in) and 120 mm spacing across the bar. Build your platform or mount to these centres.The WT3000-IR-AG indicator accepts standard 6-wire load-bar inputs, so it works with load bars from other makers, including Gallagher and Tru-Test, once wiring and calibration are confirmed. The Weigh Bar Pro pair (each bar 1,115 mm / 43.9 in long) is supplied without brand-specific brackets: it bolts under a squeeze chute or a flat weigh platform like a standard load bar, and drilling or fabrication is typically required. Chute makers don’t publish third-party bar lengths, so send us your chute make, model and base dimensions and we will confirm fit before you order.
Already have load bars? The WT3000-IR-AG indicator connects to your existing Tru-Test, Gallagher or similar bars (6-wire load-cell input) — no need to replace what’s working.
04 / 09The WSysFarm herd appPair once. Every weigh-in writes itself.
The WT3000-IR-AG indicator pairs over Bluetooth 4.0 with WSysFarm — the free herd-management app built for this kit (Android available now; iOS coming). Every weight your chute captures is written to the app the moment the display locks — together with the timestamp, the GPS location where the reading was taken, and the animal's ID if you're using the optional PT280 RFID reader. No re-keying, no end-of-day data entry, no lost paper tickets.
Inside the app you can pull growth-rate reports, calculate daily gain across weigh sessions, build treatment dosing off live weight, and export herd records as CSV or PDF. The data lives on the phone first, then syncs to the cloud the next time it has signal — so you can keep working even where there's no cell coverage.
Built for the whole operation, not just the scale: WSysFarm keeps vaccination, treatment, and illness history from a species-filtered catalog, logs matings and pregnancy checks with computed due dates, mirrors your pastures, groups, and animal moves, and tracks feed, vet, and labor costs at the animal, group, or farm level — for cattle, pigs, and sheep, in English, Portuguese, or Spanish.
Start free for up to 25 animals, with Pro and Farm plans as the herd grows.
Explore the app at wsysfarm.com- +Live weight, date, time, GPS
- +Auto-weigh per head via RFID
- +Health, breeding & cost records
- +Multi-species: cattle, pigs, sheep
- +Works offline, syncs later
05 / 09Optional add-onsExtend the kit when you need to.
504711AP-02 Plus Portable Electronic Terminal
Rugged Android handheld with the WSysFarm app pre-installed and a built-in thermal ticket printer. Use it when you want a dedicated chute-side device for herd management — no phone juggling, and printed weigh tickets on demand for buyers, veterinarians, and your own records.
505453PT280 RFID Stick Reader
Wand-style RFID reader (HDX + FDX-B, ISO 11784 / 11785) that pairs with the WSysFarm app and writes the animal's ear-tag ID into the same record as the live weight. Required if you want true automated per-animal records without manual entry.
06 / 09Technical dataWT3000-IR-AG indicator specifications.
Available calibrated capacity (Max × d) 5,000 lb × 1 lb or 11,000 lb × 1 lb Approval / precision Class III, up to 10,000 divisions Sample speed 80 samples / second Internal resolution 1 / 500,000 External resolution 1 / 10,000 Cell sensitivity 0.3 µV / d Maximum load cells 8 cells at 350 Ω Programmable divisions 1, 2, 5, 10, 20, 50 Communication Bluetooth 4.0 Power supply 12 VDC — wall, vehicle, or solar Battery autonomy Up to 40 hours with one load cell connected; shorter with more load cells or the backlight on Operating temperature 0 °C to 40 °C (32 °F to 104 °F) Storage temperature −20 °C to 50 °C (−4 °F to 122 °F) Display LCD, 6 digits with backlight, 55 mm digit height Carry case IP65 case (indicator IP68), GORE pressure-equalization valve, internal 248 × 190 × 106 mm 07 / 09Bar dimensionsBuilt low so cattle walk on without hesitation.
Bar overall length 1,115 mm (43.9 in) Width 160 mm (6.3 in) Height 115 mm (4.5 in) Low-profile beam 77.35 mm (3.05 in) Top mount holes (length) 950 / 854 mm (37.4 / 33.6 in) Outer bolt-down feet 1,065 mm (41.9 in) Mount holes across bar 120 mm 08 / 09Part number referenceOrder codes for the kit and every accessory.
Product Order code WT3000-IR-AG Weighing Bar Pro Kit (complete) 21400 WT3000-IR-AG Weighing Indicator (indicator only) 21401 Weigh Bar Pro (pair, no indicator) 21402 AP-02 Plus Portable Electronic Terminal 504711 PT280 RFID Reader 505453 09 / 09Procurement and fit FAQCommon questions from ranchers and dealers.
Will the bars fit my existing chute?
The Weigh Bar Pro is a universal-style load bar that bolts under a squeeze chute (to the chute frame and a concrete pad) or under a flat weigh platform. The bars are supplied without brand-specific brackets, and chute makers don’t publish third-party bar lengths, so send us your chute make, model and base dimensions and we will confirm fit. Measure your chute against the bar’s dimensions (1,115 mm / 43.9 in long, 160 mm / 6.3 in wide, 115 mm / 4.5 in tall, top mounting holes on 950 / 854 mm centres) and confirm the fit before ordering. Drilling or a fabricated platform may be required.
Can I use this with weigh bars I already own from Gallagher or Tru-Test?
Yes. The WT3000-IR-AG indicator (sold separately as part number 21401) accepts standard 6-wire load-bar inputs and can be paired with existing Gallagher, Tru-Test or Datamars Livestock bars in place of the original head unit, once wiring and calibration are confirmed. Order the indicator alone if you don't need a second set of bars.
How does the battery handle a full working day in the field?
A single charge delivers up to 40 hours with one load cell connected; runtime is shorter with more load cells or the backlight on. For multi-day pasture work, plug the indicator into any 12 V vehicle outlet between sessions using the included cigarette-lighter adapter, or run it directly off a 12 V solar setup. There's no need for a separate inverter or generator.
What accuracy class is the indicator?
Class III, up to 10,000 divisions. Contact sales to confirm NTEP status for your application.
Do the bars come with mounting brackets or a platform?
No. The kit is the two Weigh Bar Pro bars, the WT3000-IR-AG indicator, power supply, vehicle adapter and IP65 case. The bars have slotted mounting feet, so you bolt them to your chute’s base frame and a concrete pad, or to a flat platform you supply or build to the hole pattern shown above (950 / 854 mm centres).
Do I need the AP-02 tablet, or does my phone work?
Any modern Android phone running the WSysFarm app will pair with the indicator over Bluetooth (Android available now; iOS coming). The AP-02 Plus is for operations that want a dedicated chute-side device with a built-in thermal ticket printer — useful for buyer transactions, vet visits, and custodial records.
Talk to a WeightechUSA livestock specialist.
Get a confirmed fit check for your chute model, ask about volume pricing, or request a complete quote that includes the AP-02 terminal and PT280 RFID reader.

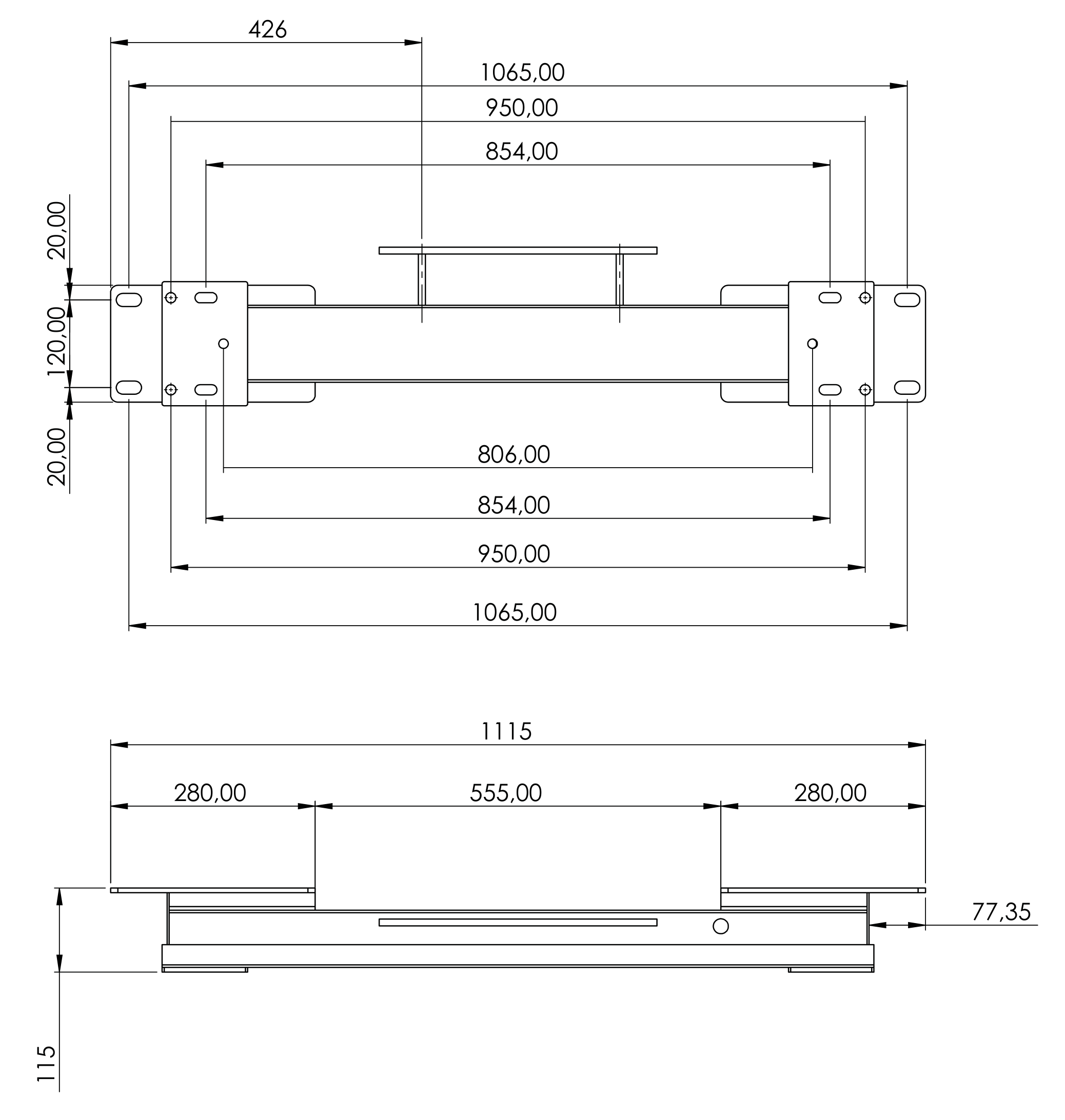

Email Sales Call +1 (954) 666-0877 × 305 Operation Manual (PDF) Weigh Bar Datasheet (PDF)DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Material Coated, Carbon Steel Internal Battery 6 V / 4.5 Ah rechargeable lead-acid Manufacturer WeightechUSA wt_tagline Weigh every animal. Log every record. Move on. wt_hero_stats 40|h|battery, 1 load cell; 80|/s|Class III samples; IP65||sealed case; 1|lb|readability Short name WT3000-IR-AG Weigh Bars Hero chips Up to 40 h battery; Bluetooth 4.0; IP65 case; 80 samples/s Document link label Manual
