WT4000 Weight IndicatorWT4000 Industrial Weight Indicator, Count, Truck, Dosage, Filling Application
W&M approved terminal for weighing, counting, vehicle weighing and filling.
- Description
- Additional Information
- 01 / 07WT4000 industrial weight indicator
One W&M-approved terminal for the apps a process plant actually runs.
The WT4000 is a W&M approved industrial weight indicator built for the chemical, pharmaceutical, food, and general process industries. A 5.7″ color TFT with eight 44-character display lines, a 266 MHz 32-bit ARM running real-time Linux, and a 120,000-record W&M data archive let it stand in for a stack of single-purpose indicators — weigh-and-print, parts counting, vehicle weighing, checkweighing, and filling, all from one terminal.
Modular hardware means the same WT4000 chassis fits a manual workstation, a 2-scale checkweigher, a truck-scale ticket terminal, or an OEM-embedded controller behind a SCADA front-end — without changing the platform underneath.
5.7″Color TFT — 8 lines × 44 chars50–800HzSelectable update rate120kW&M-approved record archiveNTEPApproval as an indicating element02 / 07Built-in applicationsFive terminals' worth of functionality in one indicator.
The WT4000 ships with these application modes installed. Each one is a complete, configurable program — not a feature flag — and you switch between them on the device or by login.

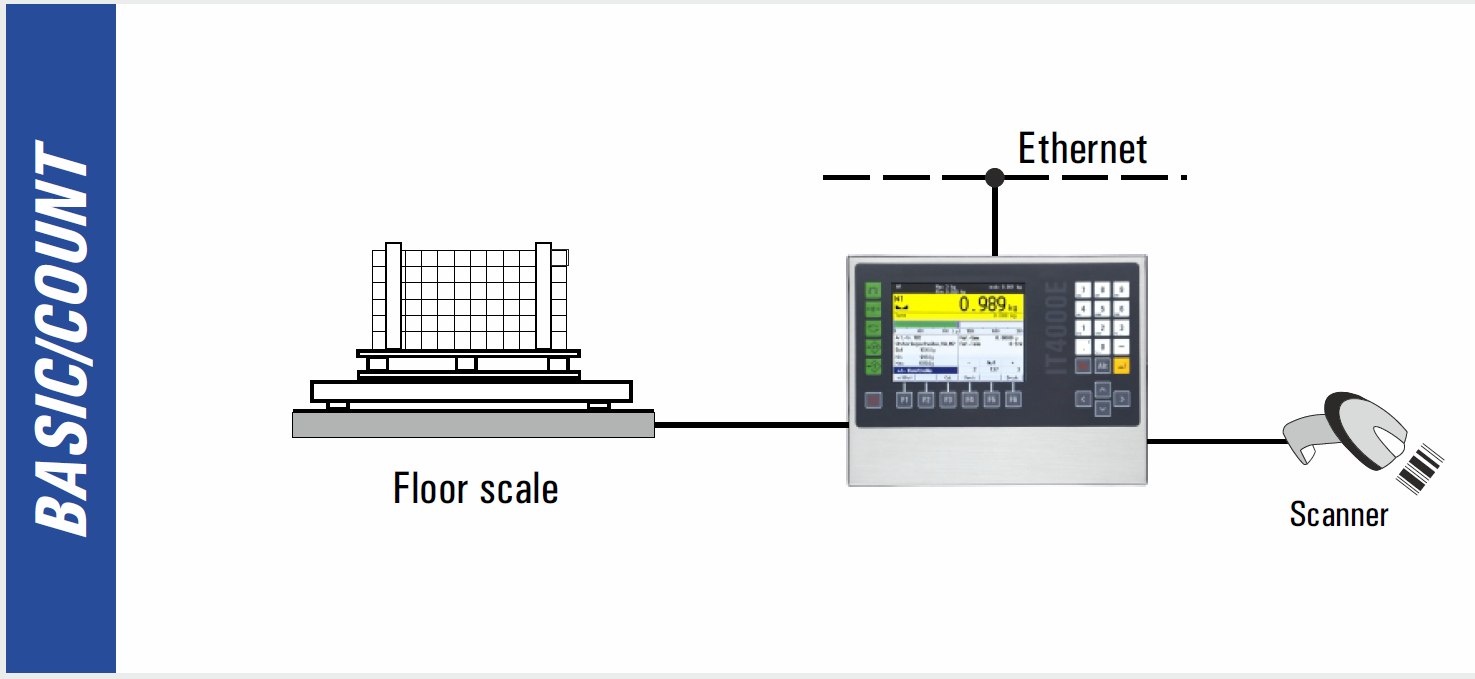

01 BASICBASIC — weigh and print
Capture W&M-approved weight from one or two scales (floor, bench, overhead track). Add IDs via keyboard or barcode (cabled / wireless). Transmit over Ethernet or WLAN. Archive on-device or to host PC.

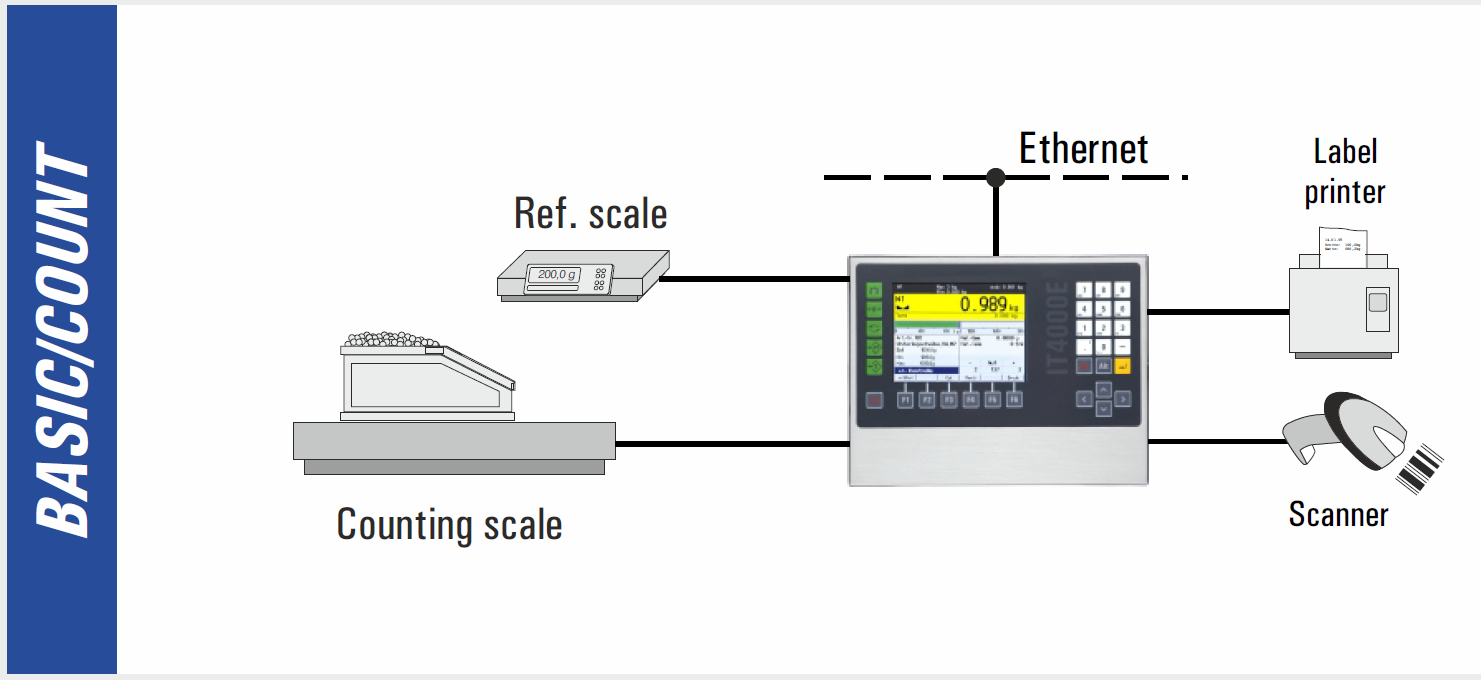

02 COUNTCOUNT — parts counting
Acquire piece weight from a reference scale. Count in weigh-in or weigh-out mode. Bar-graph display, configurable printout, transmission, article file with item counter and totals memory.
03 TRUCKTRUCK — vehicle weighing
In-and-out vehicle ticketing with stored tare or live tare. ONLINE interface mode for host-system control. Archive of approved tickets stays on the indicator.
04 CHECKCHECK — checkweighing
Static high/low pass-fail. Tolerance bands per product. Visual pass/fail indication. Stats per product, per shift, per operator.

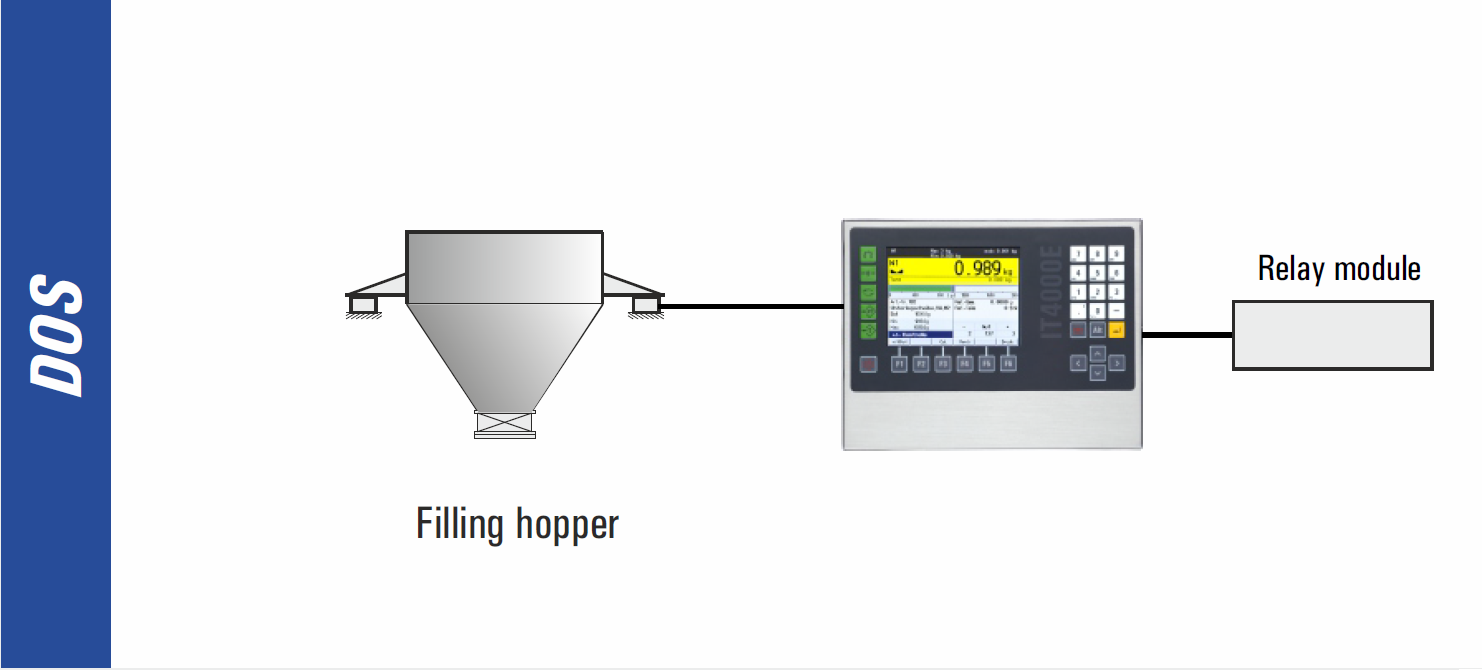

05 DOSDOS NAWI — filling
Filling controller with W&M approval. Single- or two-speed dosing, automatic preact compensation, tolerance check, and product file. Suits chemical, food, and pharma fills.

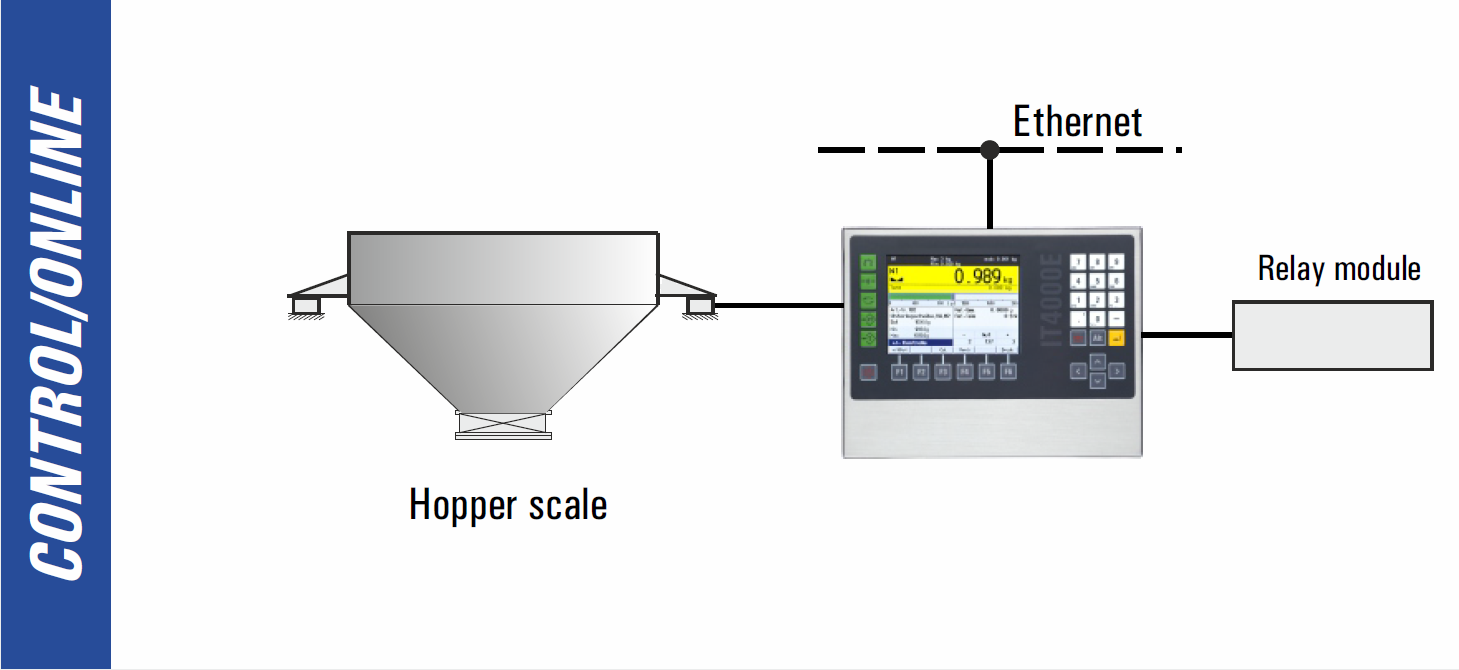

06 CONTROLCONTROL / ONLINE
Setpoint controller and PC-driven ONLINE interface. Drop the WT4000 in behind a PLC or SCADA layer when the host controls sequencing and the indicator handles W&M-approved weight capture.
03 / 07Where the WT4000 fitsIndustries the platform was built around.
01Chemical & pharmaceutical
Recipe-driven filling and batching with on-device data archive that meets W&M approval requirements for legal-for-trade documentation.
Recipe + archive02Food & beverage
Bench and floor weighing, checkweighing, mobile data capture, and recipe filling — with stainless housing, IP-rated entries, and wash-down tolerance.
Stainless + washdown03Truck & vehicle scales
In/out ticketing terminal with on-device archive of W&M-approved tickets. ONLINE mode for SCADA-fronted yards.
In / out / ONLINE04Mobile data capture
WLAN + barcode + on-device archive turns the WT4000 into a portable inventory and receiving terminal at the dock door or in the warehouse.
WLAN + barcode04 / 07Architecture & integrationWhat's actually inside.
266 MHz 32-bit ARM processor running a Linux real-time multitasking OS with an integrated web server. 0.5 MB data memory with power-fail-safe data storage. Selectable update rate of 50–800 Hz on analog strain-gauge inputs — high enough for fast dosing, slow enough for stable static weighing.
The indicator is W&M-approved for legal-for-trade weighing. Its 120,000-record on-device archive holds W&M-approved weighings without depending on a PC being online — useful when the network drops or audit pulls a sample from last quarter.
- 266 MHz 32-bit ARM processor
- Linux real-time multitasking OS, integrated web server
- 0.5 MB data memory, power-fail-safe data storage
- 120,000-record W&M-approved on-device archive
- Selectable 50–800 Hz update rate (analog strain-gauge)
- Modular hardware — expand I/O without changing the chassis
- 5.7″ color TFT, 8 display lines × 44 characters
- Numeric keyboard with alphanumeric multi-tap, softkeys
05 / 07Technical dataWT4000 specifications.
Approval W&M approved (legal-for-trade); NTEP approval as an indicating element Processor 266 MHz 32-bit ARM Operating system Linux real-time multitasking, integrated web server Display 5.7″ color TFT — large weight indication + 8 lines, 44 chars each Keyboard Numeric with alphanumeric multi-tap; softkeys Update rate Selectable 50–800 updates/sec (analog strain-gauge) Data memory 0.5 MB; power-fail-safe data storage W&M archive 120,000 records on-device Built-in applications BASIC, COUNT, TRUCK, CHECK, DOS NAWI (filling), CONTROL/ONLINE Connectivity Ethernet, WLAN, integrated web server; barcode (cabled / wireless) Housing Stainless steel, industrial design Scale inputs Analog strain-gauge load cells; 1 or 2 scales (BASIC mode) 06 / 07Part number referenceWT4000 ordering.
Product Order code WT4000 Industrial Weight Indicator — W&M approved WT4000 WT4000 + DOS NAWI filling application preconfigured WT4000-DOS WT4000 + TRUCK ONLINE preconfigured WT4000-TRUCK WT4000 + COUNT preconfigured WT4000-COUNT Configuration: All WT4000 SKUs ship with every built-in application installed. The preconfigured variants above default to that app at power-on and have the matching I/O preset. You can switch between applications on-device at any time.07 / 07Procurement and fit FAQCommon questions from integrators.
Do I need WT4000, WT6000, or WT8000?
Roughly: WT4000 is the workhorse mid-size industrial indicator with the standard application set. WT6000 adds freer programmability and heavier I/O for batching and demanding industrial loops. WT8000 is the IP69K stainless controller with the deepest I/O for filling, batching, checkweighing, and vehicle weighing. Send us your application and we’ll narrow it down.
Is the WT4000 W&M approved out of the box?
Yes — the WT4000 is W&M approved (legal-for-trade) and carries NTEP approval as an indicating element. The 120,000-record archive stores approved weighings on-device.
Can I write my own application?
The WT4000 ships configurable, not freely programmable. For custom-coded application logic, the WT6000 is the freely-programmable terminal in the same family.
How many load cells does the input support?
The analog strain-gauge input (entry impedance 43 Ω to 3.3 kΩ) is suited to eight 350 Ω load cells, or to four 350 Ω load cells through zener barriers. Digital force transducers can be connected as an option. Send us your load cell model and cell count and we’ll confirm fit.
Can the WT4000 talk to my PLC / SCADA / ERP?
Yes. Use Ethernet and the integrated web server for HTTP-style integrations; ONLINE mode for PC-driven sequencing; barcode for ID capture. For Modbus and fieldbus protocols, send us the host system spec and we’ll confirm the right interface module.
Stainless steel housing — what's the wash-down rating?
The WT4000 stainless steel desk or wall housing is rated IP65 / IP69K, NEMA 4X. The panel-mount version has a fascia plate protected to IP69K, NEMA 4X. Tell us your washdown conditions and we will confirm the right version.
Talk to a WeightechUSA specialist.
Tell us the scales, load cells, host system, and which built-in applications you need on day one. We'll confirm WT4000 fit or recommend a sibling indicator if a different platform suits the load better.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Protection class NEMA 4X, IP69K, IP65 Material Stainless Steel Internal Battery -- Load cell connection 6 Wires Load cells Manufacturer WeightechUSA Approval NTEP wt_tagline W&M approved terminal for weighing, counting, vehicle weighing and filling. wt_hero_stats 120,000|entries|W&M approved data archive; 6,000|d|W&M approved resolution; 800|updates/s|maximum update rate; 5.7|in|color TFT display Short name WT4000 Weight Indicator Hero chips W&M and NTEP approved; Stainless steel IP65 / IP69K, NEMA 4X; 5.7 in. color TFT; Ethernet and USB; Desk, wall or panel mount; 110-240 VAC or 12-24 VDC Document link label Datasheet
