B6E-300kg C3 Single Point Load CellZemic B6E 300 kg Single Point Load Cell (B6E-C3-300kg-2B)
SKU 24082
IP66; Stainless Steel; Analog signal; 4 wires
438.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic B6E-C3-300kg-2B is the 300 kg capacity Zemic B6E, a 17-4PH stainless steel parallel-beam single point load cell for electronic scales, platform scales, belt scales and other electronic weighing devices, manufactured in stainless steel with IP66 ingress protection.
300 kgRated capacityStainless SteelMaterialIP66Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number B6E-C3-300kg-2B Capacity 300 kg Rated output 2.0 ± 0.2 mV/V Dimensions 150 × 35 × 40 mm Material 17-4PH stainless steel, adhesive-potted parallel beam Protection IP66 Signal Analog Input resistance 384 ± 4 Ω Output resistance 351 ± 2.0 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.5 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Corner (eccentric load) correction 0.02 % of load value per 100 mm Cable 4-conductor shielded, 2 m, 5 mm diameter Wiring Input (+) red, Input (−) black, Output (+) green, Output (−) white Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C Maximum platform size 400 × 400 mm Mounting 8 × M6-6H threaded holes, 15 mm deep 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic B6E 300 kg Single Point Load Cell (B6E-C3-300kg-2B) 24082 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther B6E capacities.

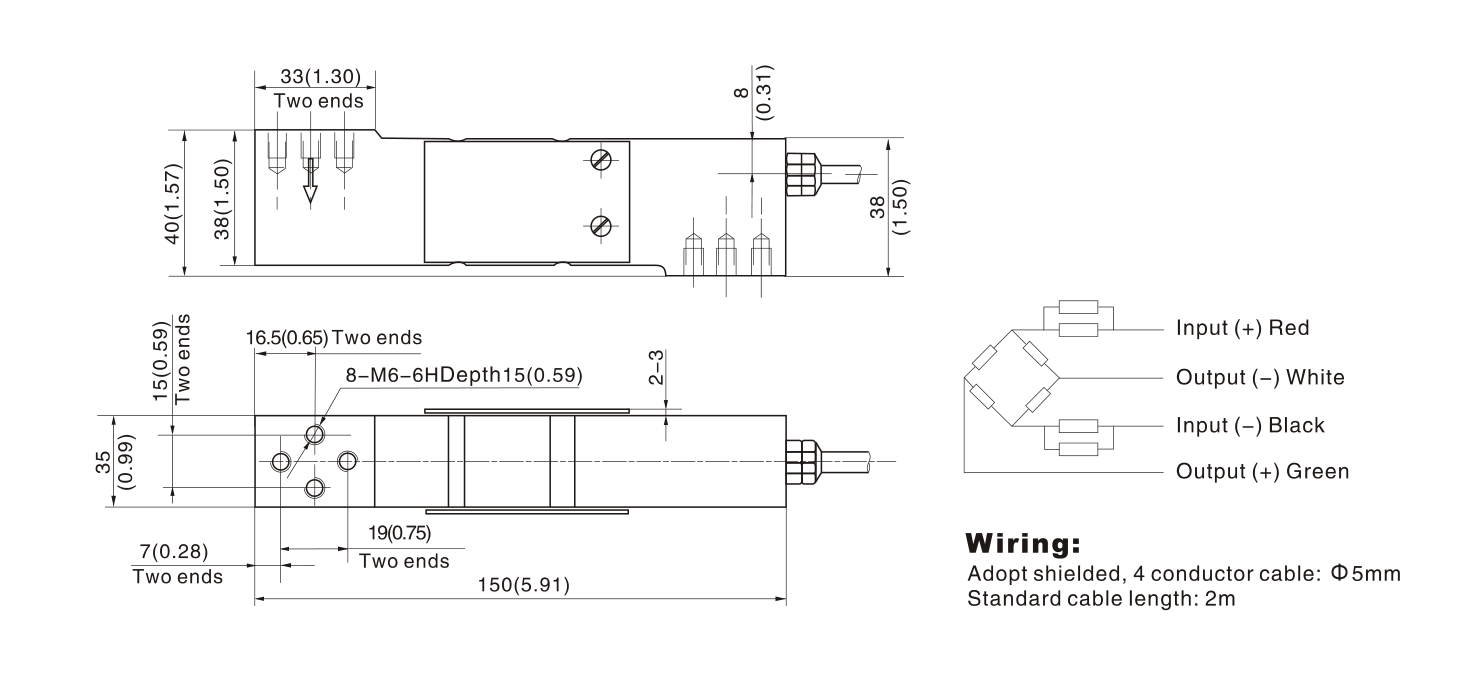

Capacity Manufacturer part number SKU Price 100 kg B6E-C3-100kg-2B 24079 $438.00 150 kg B6E-C3-150kg-2B 24080 $438.00 200 kg B6E-C3-200kg-2B 24081 $438.00 DIMENSIONSOutline dimensions.
Source: Zemic B6E datasheet Signal Analog Protection class IP66 Material Stainless Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Eccentric loading error 0.02 %LD/100 mm Input impedance 384 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Max platform size 400 × 400 mm Operating temp range −35 to +65 °C Output impedance 351 ± 2.0 Ω Rated capacity 300 kg Rated output 2.0 ± 0.2 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.5 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number B6E-C3-300kg-2B Short name B6E-300kg C3 Single Point Load Cell Hero chips IP66; Stainless Steel; Analog signal; 4 wires
