B6F-500kg C3 Single Point Load CellZemic B6F 500 kg Single Point Load Cell (B6F-C3-500kg-3B6)
SKU 24091
IP66; Stainless Steel; Analog signal; 6 wires
1,012.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic B6F-C3-500kg-3B6 is the 500 kg capacity Zemic B6F, a 17-4PH stainless steel parallel-beam single point load cell for electronic scales, platform scales, belt scales and other electronic weighing devices, manufactured in stainless steel with IP66 ingress protection.
500 kgRated capacityStainless SteelMaterialIP66Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number B6F-C3-500kg-3B6 Capacity 500 kg Rated output 2.0 ± 0.2 mV/V Dimensions 146 × 60 × 95 mm Material 17-4PH stainless steel, adhesive-potted parallel beam Protection IP66 Signal Analog Input resistance 384 ± 4 Ω Output resistance 351 ± 2.0 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.5 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Corner (eccentric load) correction 0.02 % of load value per 100 mm Cable 6-conductor shielded, 3 m, 6.2 mm diameter Wiring Input (+) red, Input (−) yellow, Output (+) blue, Output (−) white, Sense (+) brown, Sense (−) black Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C Maximum platform size 600 × 800 mm Mounting 8 × M12-7H threaded holes, 20 mm deep 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic B6F 500 kg Single Point Load Cell (B6F-C3-500kg-3B6) 24091 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther B6F capacities.
Capacity Manufacturer part number SKU Price 100 kg B6F-C3-100kg-3B6 24087 $632.00 150 kg B6F-C3-150kg-3B6 24088 $632.00 200 kg B6F-C3-200kg-3B6 24089 $632.00 250 kg B6F-C3-250kg-3B6 24090 $1,012.00 750 kg B6F-C3-750kg-3B6 24092 $2,597.00 1000 kg B6F-C3-1000kg-3B6 24093 $2,597.00 2000 kg B6F-C3-2000kg-3B6 24094 $2,597.00 DIMENSIONSOutline dimensions.

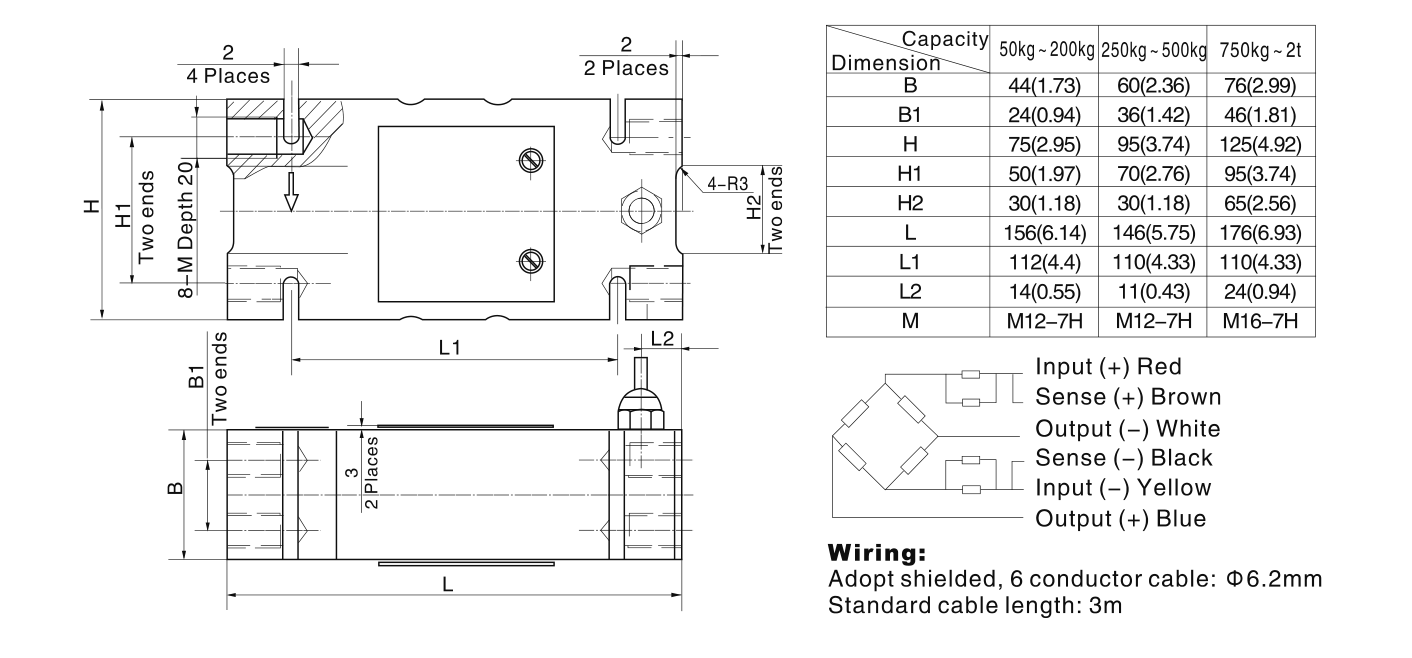

Source: Zemic B6F datasheet Signal Analog Protection class IP66 Material Stainless Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Eccentric loading error 0.02 %LD/100 mm Input impedance 384 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Max platform size 600 × 800 mm Operating temp range −35 to +65 °C Output impedance 351 ± 2.0 Ω Rated capacity 500 kg Rated output 2.0 ± 0.2 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.5 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number B6F-C3-500kg-3B6 Short name B6F-500kg C3 Single Point Load Cell Hero chips IP66; Stainless Steel; Analog signal; 6 wires
